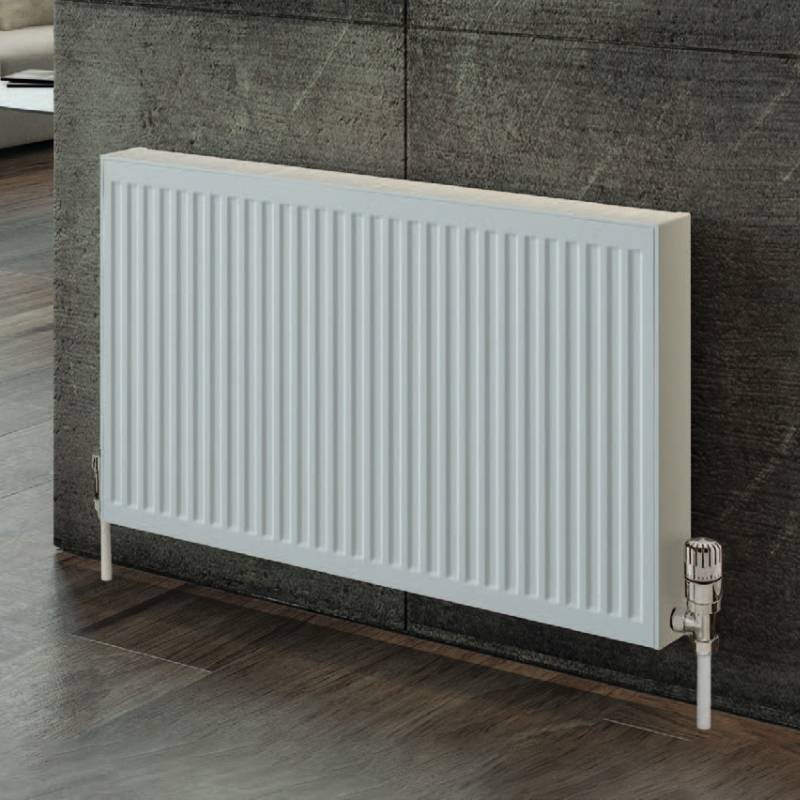

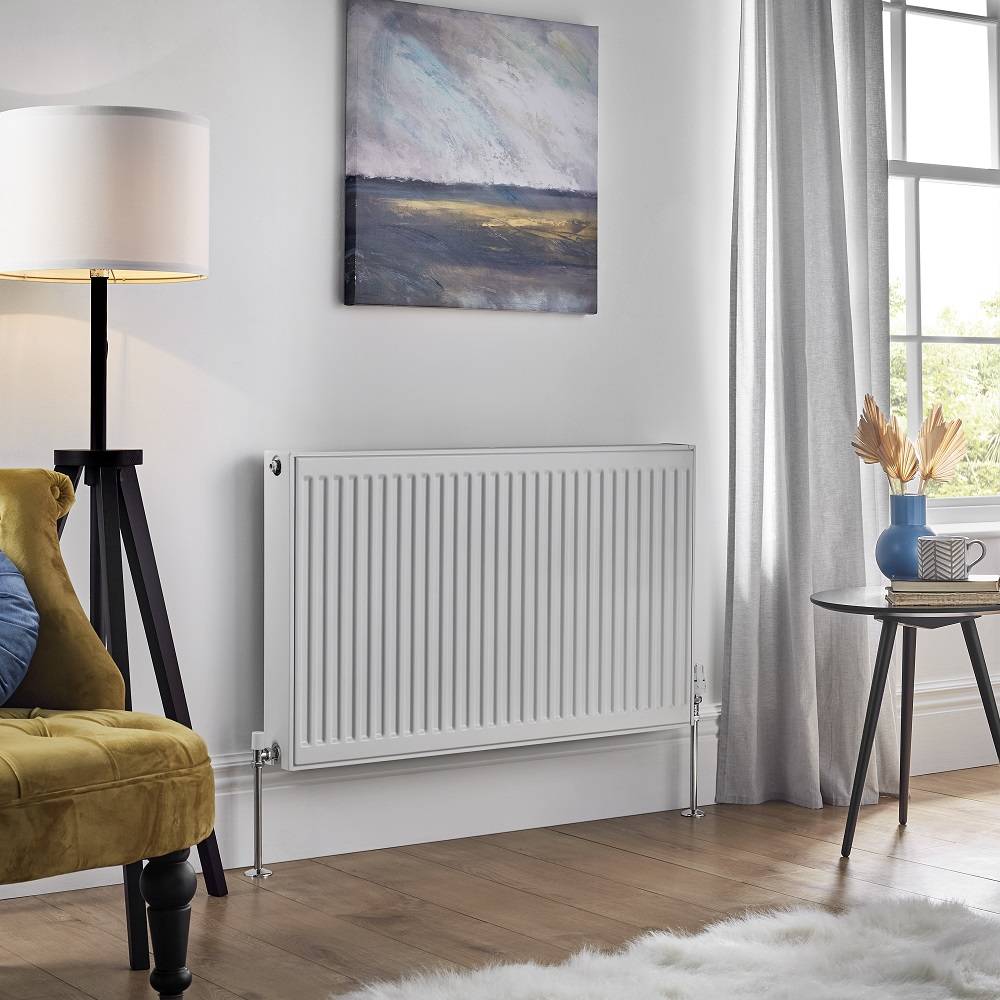

Towelrads Compact Radiator

Name: Towelrads Compact Radiator
Brand: Towelrads
SKU: saYEJE9FzDedFViKTgaDkz

Verified by manufacturer 2 months ago

Compact – T11 Single

Towelrads

Compact single and double convector radiators.

Jump to:

BOS

+44 (0) 1628 568 532 Website

Application

Suitable for a range of spaces.

Description

Compact radiator solution offering a finished product with factory fitted grilles and side panels. Available in T11, T21, T22, and Type 33 models with heights up to 900 mm and lengths up to 3000 mm.

Features and benefits:

A broad range, including T11, T21, T22 and T33 models. T22 Vertical Options available upon request.
Mounted top and side covers.
Wide range of heights and widths.
Easy installation.
High quality finish in white RAL 9016.
Reinforced packaging with bubble wrap, protective corner protectors and side covers.
Manufactured to EN 442 standards.

General information

Color	White Guidance for specification option: RAL 9016.
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	400 mm 500 mm 600 mm 700 mm 800 mm 900 mm 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2600 mm 3000 mm Show more
Height	1600 mm 1800 mm 2000 mm 2200 mm 300 mm 400 mm 500 mm 600 mm 700 mm Show more
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

Specification data - Radiators

Standards	To BS EN 442.
Radiator type	Single convector panel.
Output	Dependent on size.

Height	300 mm. 400 mm. 500 mm. 600 mm. 700 mm.
Length	400 mm. Guidance for specification option: Not available with 300 mm height. 500 mm. 600 mm. Guidance for specification option: Not available with 300 mm height. 700 mm. Guidance for specification option: Not available with 300 mm or 700 mm heights. 800 mm. 900 mm. Guidance for specification option: Not available with 300 mm height. 1000 mm. 1200 mm. 1400 mm. Guidance for specification option: Not available with 300 mm height. 1600 mm. 1800 mm. 2000 mm. 2600 mm. Guidance for specification option: Not available with 300 mm height. 3000 mm. Show more
MaximumWorkingPressure	10 bar.
Working temperature	110°C.
