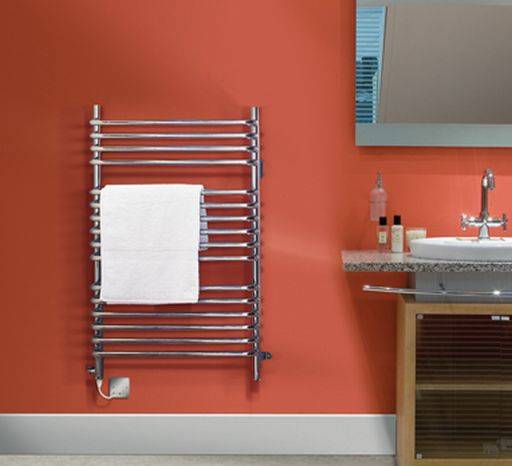

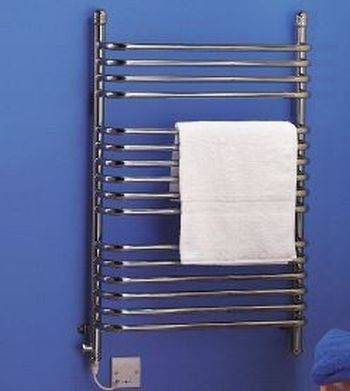

Towel Rails (Hybrid) - BR Range

Description

A stylish, multi-purpose bathroom radiator which can be connected to a water central heating system.

Features and benefits:

  • Ladder design maximizes capacity for hanging damp towels and clothes.
  • Slim vertical design to maximise use of wall space even in confined areas.
  • No external controls.
  • Can be connected to a water central heating system with the electric element available for use when the boiler is off.
  • Provided with inlet/ outlet plumbing connections, no expensive adaptors needed.
  • Choice of white or chrome models.

Supplied with a two year warranty.

General information

Finish

Chrome

Size

440x153x980mm

Uniclass 2015

Pr_70_60_36_48 Low temperature hot water (LTHW) heated towel railsPrimary

CAWS

T90/470 Towel warmer radiators

T90/470 Towel rails

Specification data - Low temperature hot water (LTHW) heated towel rails

Product Reference

BR Range (Hybrid)

Type

BR150W

White finish. Output: 150 W. Size (h x w x d): 665 x 430 x 155 mm.

BR150C

Chrome plated finish. Output: 150 W. Size (h x w x d): 665 x 430 x 155 mm.

BR350C

Chrome plated finish. Output: 350 W. Size (h x w x d): 1003 x 630 x 155 mm.

BR400W

White finish. Output: 400 W. Size (h x w x d): 1003 x 630 x 155 mm.

Accessories

None

Energy regulator FSCC

Energy regulator FSCW

Standard product features

Material:

Steel.

Colour:

White.

Technical characteristics:

  • Cable: Supplied pre-fitted with 1 m cable.
  • Thermostat: Electronic, accurate to ±0.3°C. With lockable slider control, 5–30°C.
  • Thermal cut out: Built-in over temperature cut-out.
  • Class: Class I.
  • Construction: Sealed, liquid filled steel shell. Water based fluid with glycol frost/ corrosion inhibitor. Vertical mounted immersion element.
  • Approvals: CE and BEAB.
  • IP rating: IPX4.

Installation:

Supplied with wall mounting points and brackets. If installing to radiator circuit, install in accordance with manufacturer’s instructions.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Revit

Revit 2016

2

2.0
Download now from NBS National BIM Library

Third party certifications

  • CE
  • BEAB
