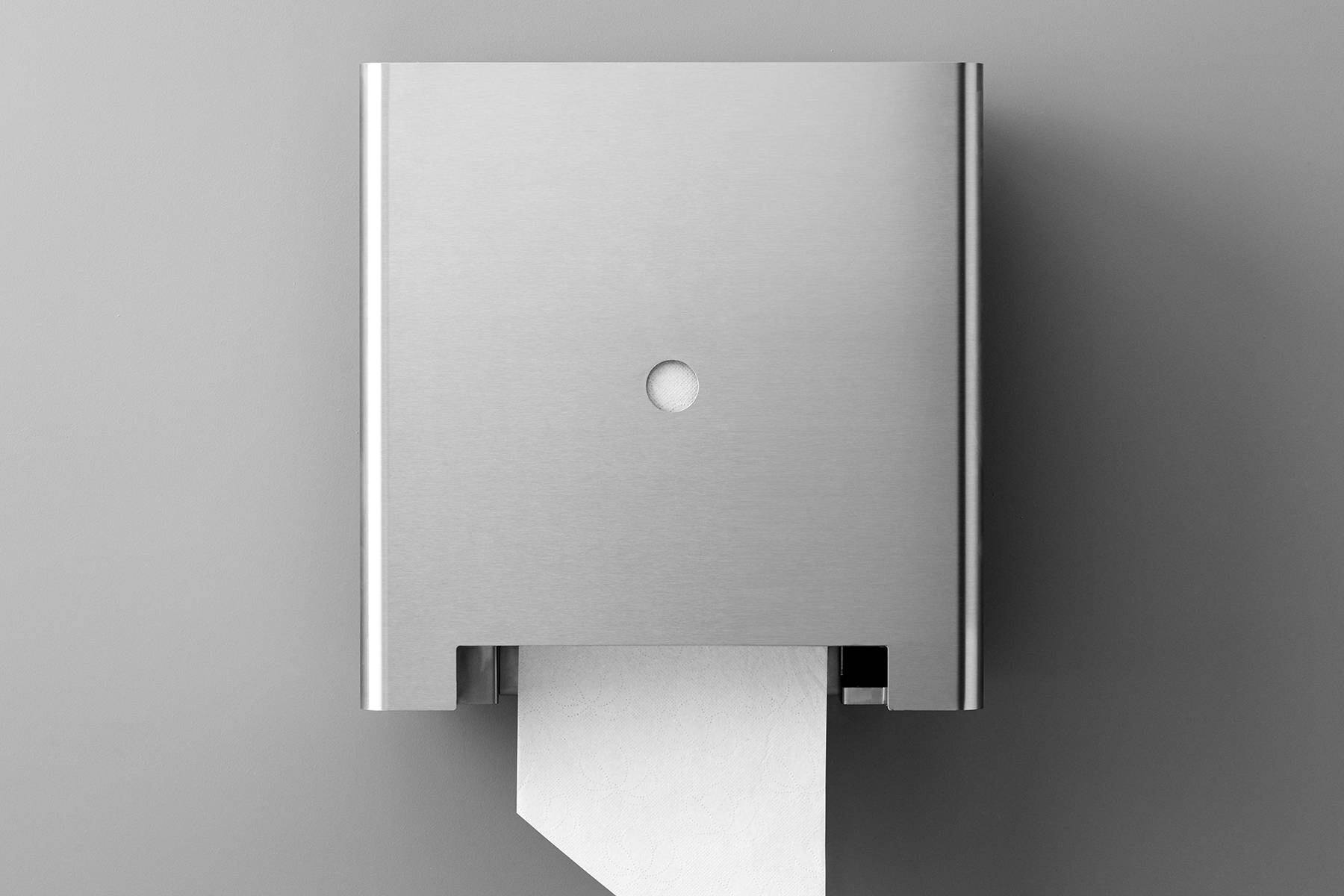

Touchless paper roll dispenser, 200 mm diameter roll
Wall mounted, motion sensor-operated automatic paper towel dispenser for 200 mm diameter paper rolls.
Description
Touchless, wall mounted paper roll dispenser, in a classic Danish design by Knud Holscher.
Features and benefits:
- Programmable paper length and delay settings.
- Sensor mode or towel out mode.
- Paper roll dimensions: Height (y): 195–205 mm (8"), 140 or 200 mm diameter with 38 mm diameter core (minimum), model dependent.
- Economical paper usage with stub roll feature.
- Requires four 'D-cell' alkaline batteries (not rechargeable or NiCad).
- Usage: 80 or 100 towel rolls in sensing mode (more in towel out mode), model dependent.
- CE marked.
General information
Size | 348 x 360 x 195 mm Thickness: 1.5 mm. |
Color | Silver |
Finish | Polished Satin |
Material | Stainless steel |
Shape | Square |
WarrantyDescriptionTwo years for mechanism. | 20 years For stainless steel (non-movable) parts, (non-mechanical/electronic parts) excluding labour |
Uniclass 2015 | |
CAWS | N13/441 Paper roll dispensers |
Specification data - Paper roll dispensers Enhanced data
Materials | - |
Body | Stainless steel, AISI 1.4301 (316) grade. |
Finish and colourPVD coatings are Physical Vapour Disposition - consult manufacturer for further details. | Satin 320 grain stainless steel, hand crafted (14.7086.02.200).Satin 320 grain stainless steel, hand crafted (14.7081.02.200).PVD Polished Brass.PVD Polished Charcoal.PVD Polished Copper.PVD Polished Gunmetal.PVD Satin Brass.PVD Satin Charcoal.PVD Satin Copper.PVD Satin Gunmetal.Telegrey RAL 7047.White RAL 9016.Black RAL 9005.Dusty Grey RAL 7037. |
Product Reference | Paper Roll Dispenser – Touchless |
Size | 348 x 360 x 195 mm Thickness: 1.5 mm. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2016 | 1 | 2.0 |
