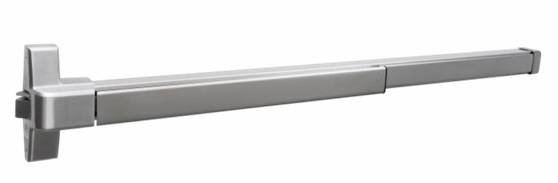

Touch Bar Panic Latch (CPH6080F) - Panic Exit Devices
Verified by manufacturer 2 days ago
EPD
Certificate type
Certifire Certificate
Certificate type
Certificate of constancy of performance
Certificate type
Non-handed touch bar panic latch with a deadlocking latch bolt.
Application
Suitable for timber and steel door applications.
Description
A non-handed touch bar panic latch with deadlock bolt suitable for timber and steel door.
Features and benefits:
- Non-handed with a deadlocking latch bolt.
- Tested to EN 1125 and ANSI Grade 1.
- Fire tested to BS EN 1634-1 for timber and metal doors.
- Available in satin, polished, or silver finish.
General information
Color | Grey Silver |
Finish | Satin Polished |
Material | Stainless steel |
Shape | Rectangle |
Length | 1040 mm |
Width | 45 mm 50 mm 62 mm |
Height | 154 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/577 Panic exit devices P21/32 Panic exit devices |
SKU Code | CPH6080F |
Specification data - Panic exit devices
Classification data | |
Standard | To BS EN 1125. Guidance for specification option: ANSI Grade 1. |
Classification grades (minimum) | |
Category of use | To BS EN 1125, Grade 3. |
Durability | To BS EN 1125, Grade 7. |
Door mass | To BS EN 1125, Grade 6. |
Suitability for use on fire and smoke doors | To BS EN 1125, Grade 1. |
Safety | To BS EN 1125, Grade 1. |
Corrosion resistance | To BS EN 1125, Grade 4. |
Security | To BS EN 1125, Grade 2. |
Projection of bar | To BS EN 1125, Grade 2. |
Type of bar operation | To BS EN 1125, Grade B. |
Field of door application | To BS EN 1125, Grade A. |
Material and finish | Grade 304, satin stainless steel. Grade 316, satin stainless steel. Grade 304, polished stainless steel. Silver finish. Other. Guidance for specification option: Available in other finishes upon request. Consult manufacturer for details and insert requirements. |
Colour | Self-coloured. |
Integral accessories | External locking attachment to be suited with other locks. Guidance for specification option: Deadlocking latch bolt. |
Fasteners for hardware | As supplied. |
Fire resistance | To EN 1634-1, 120 minutes (timber doors); 240 minutes (metal doors). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 32.4 | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 33 % |
Expected Life | 30 year |
Product certifications
Product certifications
EPD
Panic and Emergency Exit Devices
Certifire Certificate
CF5509
Certificate of constancy of performance
Certificate of Constancy of Performance (CPH6080)
