Total Traffic Exopave (TTE®)-Recycled gravel grass paver - Heavy Duty Pavers

Verified by manufacturer 3 months ago

Geosynthetics Limited

Heavy duty paver combining strength and versatility, designed for HGV use.

Jump to:
+44 (0)1455 617139 Website

Application

  • HGV and coach parking.
  • Lay-bys and verge reinforcement.
  • Intensively used car parks.
  • Service yards and industrial estates.
  • Access roads for emergency vehicles.
  • Farm and rural roads.
  • Private roads.
  • Hard standing areas for motorhomes.
  • Light aircraft apron.

Description

Total Traffic Exopave (TTE®) is a distinctively designed permeable paving system which combines strength with versatility. Made from recycled high-density polyethylene (HDPE), the interlocking pavers can be filled with either grass or gravel providing a SuDs compliant solution. TTE® is a particularly suitable heavy duty paver for permanent and overspill coach or HGV parking applications. TTE® has both high compressive strength and high shear strength, enabling it to withstand much higher loading, accelerating, braking and turning forces than standard heavy duty pavers.


Features and benefits:

  • Withstand weight of up to 40 tonnes.
  • Filled with either grass or gravel infill.
  • SuDS compliant.
  • Easy to install and maintain.
  • Designed for HGV traffic.
  • Reduced sub base depths required.
  • High shear strength reduces limitations whilst accelerating, braking and turning.
  • Textured surface for improved grip, and as a result improves user safety.
  • Wheelchair regulations compliant.
  • High water permeability.
  • Alternative to concrete and tarmac surfaces.
  • Sympathetic to the natural environment.

General information

Color

Grey

Finish

Textured

Material

High density polyethylene (HDPE)

Shape

Rectangle

Square

Length

800 mm

Width

400 mm

Height

60 mm

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary

CAWS

Q25/46 Plastics grass reinforcing paving systems

Q25/180 Plastics grass reinforcing paving system

Q25/185 Gravel-filled plastics paving system

Specification data - Plastics cellular pavers

Physical properties

-

Material

Recycled plastics.

Guidance for specification option:

100% recycled high-density polyethylene (HDPE).

Colour

Grey.

Top surface finish

Pimple surface.

Profile

-

Paver type

Regular plan form, square.

Interlocking features

Required.

Dimensions

-

Plan size

800 x 400 mm.

Thickness (minimum)

60 mm.

Recycled content (minimum)

100%.

Weight

8.5 kg (26 kg/m²).

Loading

147 kN per test body.

Manufacturer guidance

Loading capacity, static.

Infill

Not required.

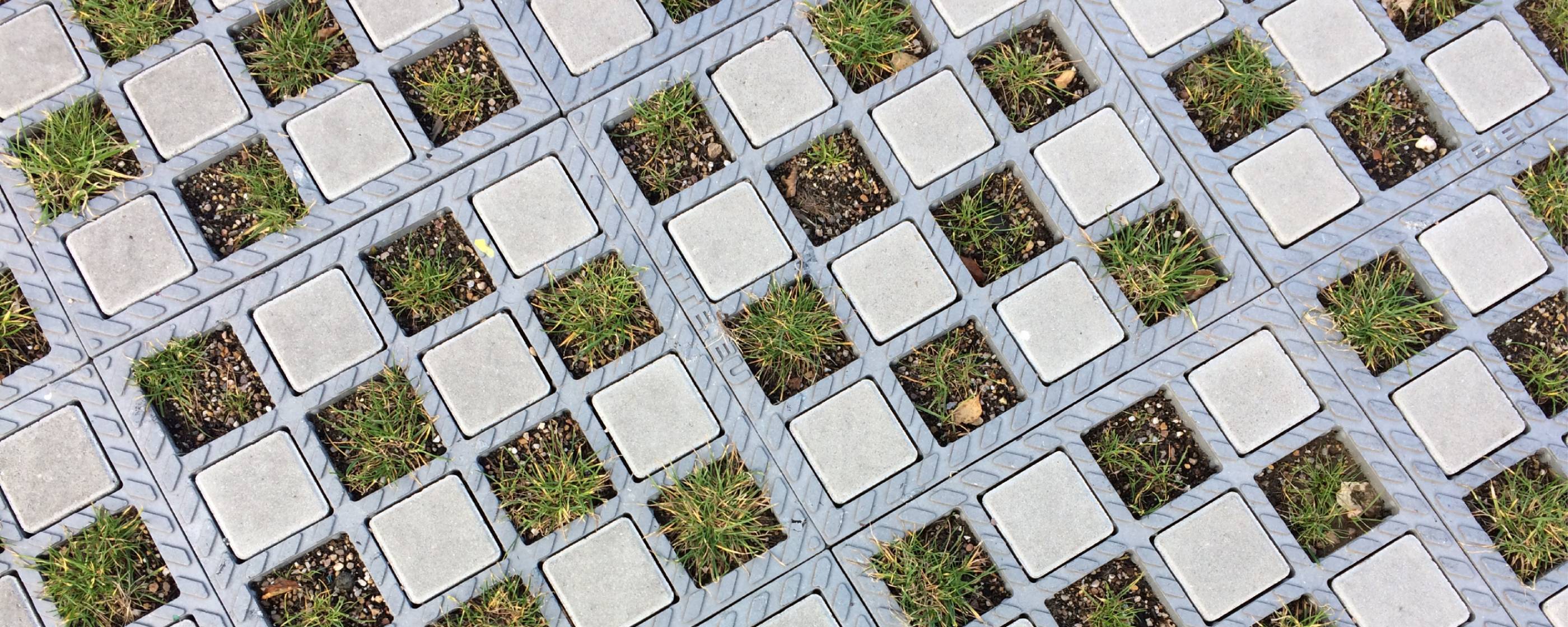

TTE® paving brick inserts.

Soil and seed.

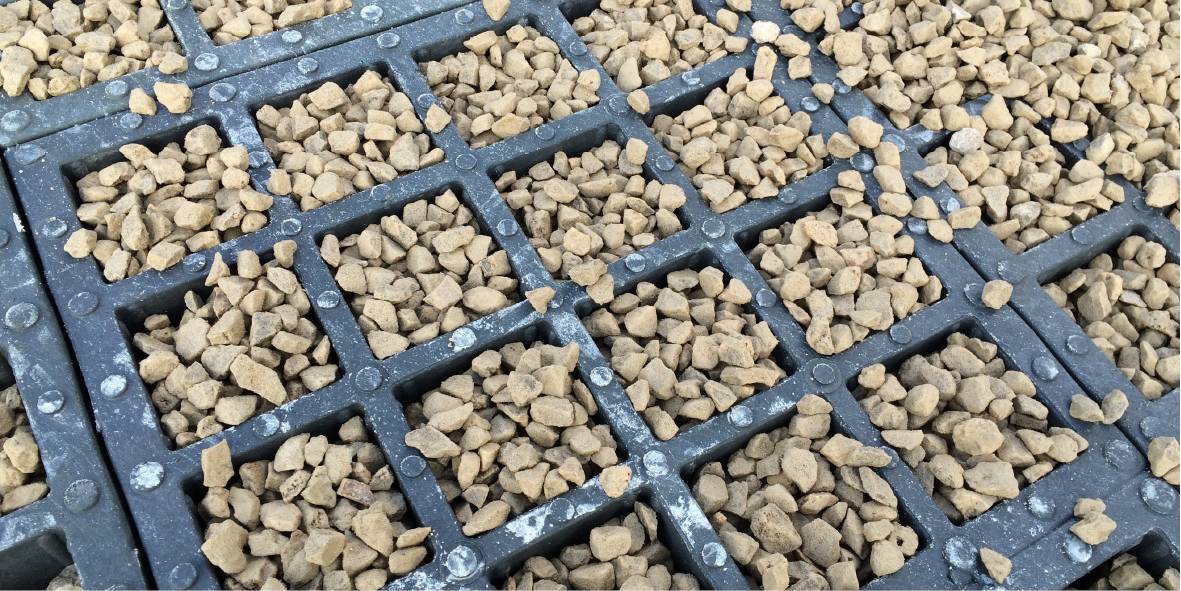

10–20 mm clean angular gravel.

Accessories

Not required.

TTE® Installation Mesh.

PhysicalPropertiesProfileArrises

Square.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Fully Recycable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
