For the emptying, cleaning and disinfection of human waste receptacles such as bedpans, urinals, commode buckets and lids. Bowls, basins and other utensils used in care facilities can also be processed (but will require detergent dosage).

Description

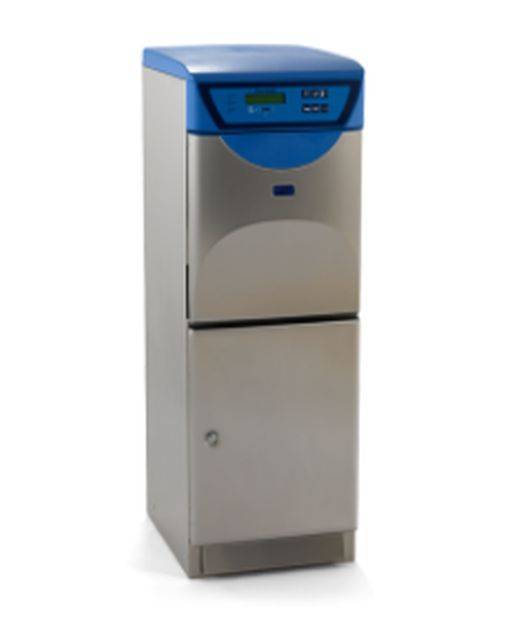

Front-loaded flusher disinfector. Provided with either an internal steam generator or external steam.

Features and benefits:

  • Processing cycles are factory programmed with recommended treatment parameters for cleaning, thermal disinfection and cooling.
  • Comprises nine fixed and two rotating nozzles to meet stringent cleaning requirements.
  • Provides safe, thermal disinfection of the receptacles. The steam is transported into the chamber through all pipes and nozzles in every cycle through Pipe System Disinfection (PSD).
  • The read-out display provides users with all necessary information for operation and control.
  • There are a wide range of holders for the different receptacles to minimize the risk of residues and bacteria transmittance.
  • Wash chamber door provided with built-in splash protection, and locks during the cycle, which enhances staff safety and ensures complete cleaning and disinfection.
  • Cabinet is lockable for storage of detergent and rinse/ de-scaling of agent containers.
  • Equipped with a level sensor for the de-scaling agent container.
  • Helps to prevent the spread of infection and cross-contamination.
  • Ease of operation and maintenance with access from the front and clear guidance on the display.
  • Environmentally friendly, with a low water, power and rinse agent consumption.
  • Display and user manuals are available in a variety of languages.

Applications:

For the emptying, cleaning and disinfection of human waste receptacles such as bedpans, urinals, commode buckets and lids. Bowls, basins and other utensils used in care facilities can also be processed (but will require detergent dosage).

Approvals:

  • CE marked.
  • Compliant with EN ISO 15883.
  • WRAS approved.
  • Directive of medical devices, 93/42/EEC. Certificate: 41314824.

Consult manufacturer to view additional approvals issued to this product.

General information
Color

Blue

Size

580 x 450 x 1255 mm

Uniclass 2015
Health care macerator systems (Ss_40_15_75_35)Primary
Specification data - Health care macerator systems
Product Reference

Tornado

Type

Economy

Water consumption: 11 L per cycle.

Intensive

Water consumption: 31 L per cycle.

Normal

Standard. Water consumption: 20 L per cycle.

Voltage supply

L1-220/ 230 V, 1 N and PE, 50 Hz 3.0 kW, 1 x 16 A

For steam generator.

L2-230 V, 3 and PE, 50 Hz, 4.0 kW, 3 x 16 A

For steam generator.

L3-380/ 400 V, 3 N and PE, 50 Hz, 4.0 kW, 3 x 10 A

For steam generator.

L5-240 V, 2 and PE, 60 Hz, 3.6 kW, 2 x 15 A

For steam generator.

L9-208 V, 2 and PE, 60 Hz, 3.0 kW, 2 x 15 A

For steam generator.

L10-208 V, 3 and PE, 60 Hz, 3.8 kW, 3 x 15 A

For steam generator.

L14-200 V, 2 and PE, 50 Hz, 3.0 kW, 2 x 16 A

For steam generator.

L15-200 V, 3 and PE, 50 Hz, 4.0 kW, 3 x 16 A

For steam generator.

L18-200 V, 2 and PE, 60 Hz, 3.4 kW, 2 x 16 A

For steam generator.

L19-200 V, 3 and PE, 60 Hz, 4.4 kW, 3 x 16 A

For steam generator.

L22-220/ 230 V, 1 N and PE, 60 Hz, 3.4 kW, 1 x 16 A

For steam generator.

L24-380/ 400 V, 3 N and PE, 60 Hz, 4.4 kW, 3 x 10 A

For steam generator.

V2-220/ 230 V, 1 N and PE, 50 Hz, 1.0 kW, 1 x 10 A

For external steam.

V3-240 V, 2 and PE, 60 Hz, 1.4 kW, 2 x 10 A

For external steam.

V4-208 V, 2 and PE, 60 Hz, 1.4 kW, 2 x 10 A

For external steam.

Drainage

Floor, 90 mm diameter

Floor, 110 mm diameter

Wall, 90 mm diameter

Wall, 110 mm diameter

Holders/ adaptors

499586101 Universal holder

499966401 Rotating holder IT

500101000 Holder FR

500376804 Holder AT

500847301 Holder GB

501257800 Holder round bedpans DE

501676200 Holder CA

Fixing

Freestanding

1400 x 450 x 530 mm (h x w x d). 90 kg. Available with or without automatic door - insert requirement.

Wall hung

1300 x 450 x 530 mm (h x w x d). 90 kg.

Under counter

900 x 900 x 600 mm (h x w x d). 100 kg.

Disinfection type

External steam

Steam generator

Dosage

De-scaling agent dosage

Standard.

Detergent dosage

Dosage for rinse agent direct in pump

Dosage for rinse agent in tank

Level sensor

Two level sensors

If two different liquids are used.

Y-Connection

For use when the unit is equipped with dosage for rinse agent, and the same liquid is used for de-scaling and rinse agent.

Accessories/ Other requirements

Not required

Built-in main switch

Condensation cooling

Reduces humidity in the sluice room.

External cooling

Rinse after disinfection with water supplied directly from the water inlet instead of the tank.

Leak sensor, floor

Valves and filters

Purifying filter for incoming water and shut-off valves. Consult manufacturer for details and insert requirements.

Wall mounted main switch

Standard product features

Material:

  • Cover plates: Fine-polished stainless steel, grade 1.4301 (304).
  • Chamber: Acid-resistant stainless steel, grade 1.4404 (316 L).

Technical characteristics:

  • Noise level: 58 dBA.
  • Outer temperature: 40°C (maximum).
  • Connection type: 15 (1/2").
  • Water pressure: Cold and warm water: 70–800 kPa; Steam: 30–300 kPa.
  • Flow rate: Cold and warm water: 20 L/min; Steam: 0.3 kg/cycle.

Product Options

Type:

Cooling may use up to an additional 3 L of water.

Holders/ adaptors:

Others are also available. Consult manufacturer for details.
