Topguard® Primary Barrier Matting
Verified by manufacturer 3 days ago
Plain wipers
Plain wipers
Primary barrier matting for demanding applications with heavy traffic.
Application
- Suitable for the most demanding applications, e.g. airports, railway stations, sports stadiums and supermarkets, where cleaning and drying of heavy foot and wheeled traffic is required. Zone 2.
Description
Primary barrier matting for demanding applications with heavy foot and wheeled traffic.
Features and benefits:

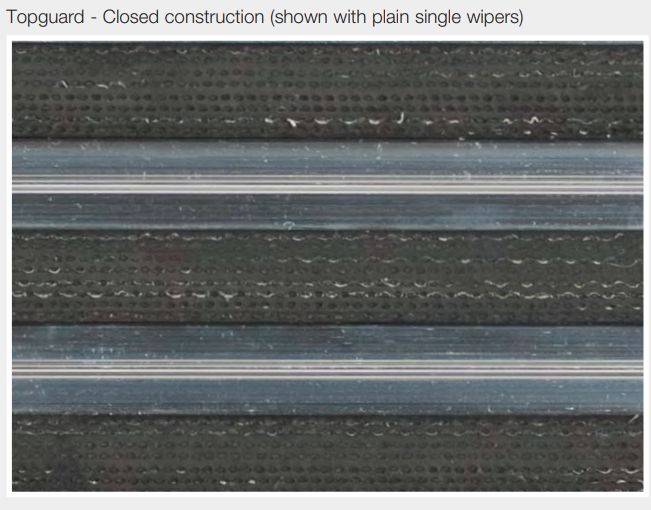

- Available in open (5 mm) or closed construction.
- Available with single or double wipers.
- Supplied with divider bars.
- Slip-resistance (HSL ramp test) - low risk of slip.
- Can be manufactured to most shapes on approval of a template.
- Constructed from rubber wipers and scraper linking strips which are held together with galvanised steel wires.
- The rubber wipers are available interwoven with nylon fibres in a choice of grey or black for internal use.
- The scraper linking strips are available in either aluminium or brass. Brass available in 18mm only.
- When installed as a true rectangle or a square Topguard can be reversed to extend the product’s life.
- For a complete matting solution Topguard can also be used with Boulevard secondary barrier matting.
General information
Color | Grey Silver Gold |
Material | Rubber Aluminium Brass |
Shape | Rectangle Other Guidance for specification option: Bespoke. |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/300 Entrance matting |
Specification data - Entrance mats
Arrangement | Inset external.Inset internal. |
Dimensions | 12 mm gauge.18 mm gauge.Manufacturer guidanceWipers: 14 mm-wide. Linking strips: 14.5 mm (single wipers); 14 mm + 2 x 5 mm spacer discs (double wipers). End strips: 8 mm-wide. |
Material | Rubber and aluminium strip.Rubber and brass strip. |
Pattern | Double wiper linked.Single wiper linked. |
Colour | Grey/ Silver. |
Integral accessories | FRB026 - 20mm Brass matwell frame.T Bar 12 - 12mm Aluminium divider bar.T Bar 18 - 18mm Aluminium divider bar.UMFA12 - 12mm Aluminium matwell frame.UMFA18 - 18mm Aluminium matwell frame.UMFA25 - 25mm Aluminium matwell frame. |
Construction | Closed. Open. |
Sustainability data
Material | Rubber Aluminium Brass |
Literature
Gradus Barrier Matting Systems
