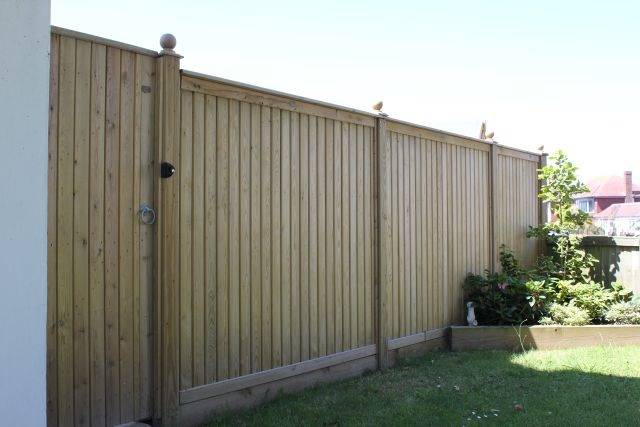

Tongue and Groove Effect Panels

Application

Gardens, residential and commercial properties.

Description

Solid tongue and groove effect panels for increased privacy in gardens, crafted from premium, planed, pressure treated timber. Infill of the panel is tongue and groove board, the centre of the panel is given additional support with one or two 70 mm wide rails depending on fence height.

Features and benefits:

  • Designed for use with slotted Jakposts.
  • Morticed and tennoned frame for extra strength.
  • Centre rail(s) for additional support.
  • Stainless steel fixings.
  • 17 mm thick "tongue and groove effect" boards.
  • Framed.
  • 25 year guarantee.

Application:

Gardens, residential and commercial properties.

General information

Features

[Features, Designed for use with slotted Jakposts, morticed and tenoned frame for extra strength and centre rail(s) for additional support. Has stainless steel fixings and consists of 17mm thick "tongue and groove effect" softwood boards which are framed]

-

Finish

[Finish, Planed, pressure treated]

-

Material

[Material, Wood]

-

Size

[Size, 910–1830 mm (height) x 1830 mm (width)]

-

WarrantyDescription

[WarrantyDescription, 25 years. On timber products, only the Jakcure® treatment process delivers a 25 year guarantee against all wood boring pest and all forms of dry and wet rot]

-

Uniclass 2015

Ss_25_15_60_96 Wood post and panel barrier systemsPrimary

CAWS

Q40/15 Prefabricated wood panel fencing

Q40/250 Prefabricated wood panel fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Wood post and panel barrier systems

Product Reference

Tongue and Groove Effect Panels

Posts

Slotted Jakposts

Post foundations

Set in concrete

Rails

70 x 51mm

70 x 20mm

Baseboards

Gravel board, 1830 x 140 x 28 mm

Panels

-

Height

910 mm

1220 mm

1520 mm

1830 mm

Width

1830 mm

Type

630100

910 mm high.

630200

1220 mm high.

630300

1520 mm high.

630400

1830 mm high.

630310

Convex, 1520 mm high.

630410

Convex, 1830 mm high.

Fence topping

None

Flat or convex top

Capping rails

Consult manufacturer for options and insert requirements.

Post caps

Consult manufacturer for options and insert requirements.

Site applied finishes

Planed, pressure treated

System accessories

None

745300

Curved trellis, suitable for convex panel only.

984100

Level railing topper panel.

984200

Concave railing topper panel.

984300

Convex railing topper panel.

Bespoke fencing and gates available on a design build specification

Gates

275800

1150 x 1000 mm.

275900

1450 x 1000 mm.

276000

1750 x 750 mm.

276100

1750 x 900 mm.

276200

1750 x 1000 mm..

Product Options

Colour:

Natural timber.

Features:

Designed for use with slotted Jakposts, morticed and tenoned frame for extra strength and centre rail(s) for additional support. Has stainless steel fixings and consists of 17mm thick "tongue and groove effect" softwood boards which are framed.

Finish:

Planed, pressure treated.

Material:

Wood.

Size:

910–1830 mm (height) x 1830 mm (width).

Warranty description:

25 years. On timber products, only the Jakcure® treatment process delivers a 25 year guarantee against all wood boring pest and all forms of dry and wet rot.
