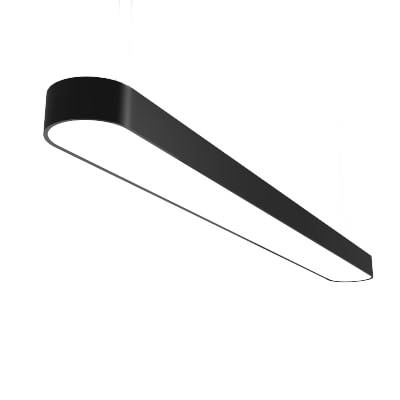

Surface mounted linear LED lighting with curved edges.
Suitable for offices, showrooms and other commercial spaces.
Surface mounted linear LED lighting with curved edges.
Features and benefits:
Also available as wall mounted or suspended (specified separately).
Application:
Suitable for offices, showrooms and other commercial spaces.
Features | Slim architectural design, provides a thin line of continuous light |
Finish | Polyester powder coat |
Material | Extruded aluminium profile with LEDs |
Shape | Linear |
Size | Three sizes ranging from ranging from 922 - 1522 mm |
Uniclass 2015 | |
CAWS | V90/45 Luminaires V90/510 Luminaires |
Product Reference | Tonge Surface Mounted - LED |
Standard | Directive 2014/30/EC - EMCDirective 2006/95/EC - Low VoltageRegulation 1907/2006 - REACHDirective 2019/15/EC - LabellingDirective 2015/863/EC - RoHSDirective 2012/19/EC - WEEEDirective 2014/35/EU - making available on the market of electrical equipmentDirective 2011/65/EU - hazardous substances |
Third-party certification | Photometrics |
Luminaire description | Surface mounted, flat, rectangular, soft edges |
Classification | - |
Electric shock | Class I |
Ingress protection (minimum) | IP20 Rated |
Suitability for direct mounting on normally flammable surfaces | Not suitable for direct mounting on normally flammable surfaces |
Circumstances of use | Normal use |
Rated maximum ambient temperature | 25°C |
Control gear position | Integral within luminaire |
Supply circuit conductor connections | Loop wiring |
Nominal voltage | 220-240 V |
Luminaire power factor | 0.95 |
LED luminaires | - |
Performance standards | EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471 |
Safety standard | SELV |
Initial LED luminaire efficacy (minimum) | 100 lm/W |
Wattage | 32.4 W/ 2680 lm up to 51.2 W/ 4470 lm |
Colour temperature | 3000K4000K |
Colour rendering index (Ra) | 80+ |
Beam angle | 180° |
Useful life | 50 000 hours (L80B20) |
Dimming protocol | DALI DimmingNon-dimmingStandard. |
Emergency version | - |
Standard | Tridonic in size 1522 mm |
Mode of operation | Maintained |
Duration of emergency mode (minimum) | No emergency0 hours. 3 hours |
Length | 922 mm1222 mm1522 mm |
Optics | Microprismatic DiffuserOpal Diffuser |
Colour | BlackWhiteRALInsert requirements. |
Unified glare rating | - |
Transverse | <19.2, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards |
Longitudinal | <19.2 |
Driver | - |
Efficiency | 96% |
Frequency | 50-60 Hz |
Emergency output | 210 Lm |
Output direction | Direct |
Standard product features | Colour: Available in three standard colours or bespoke RAL colour. Features: Slim architectural design, provides a thin line of continuous light. Finish: Polyester powder coat. Material: Extruded aluminium profile with LEDs. Shape: Linear. Size: Three sizes ranging from ranging from 922 - 1522 mm. Warranty: Two-year warranty. Recycled content: Aluminium and packaging. Recyclability: Frame and packaging. Country of origin: UK. |
Recyclability | Frame and packaging |
Recycled content | Aluminium and packaging |
