TL-6030 FlexFit Railing-Base Range

OnLevel Ltd

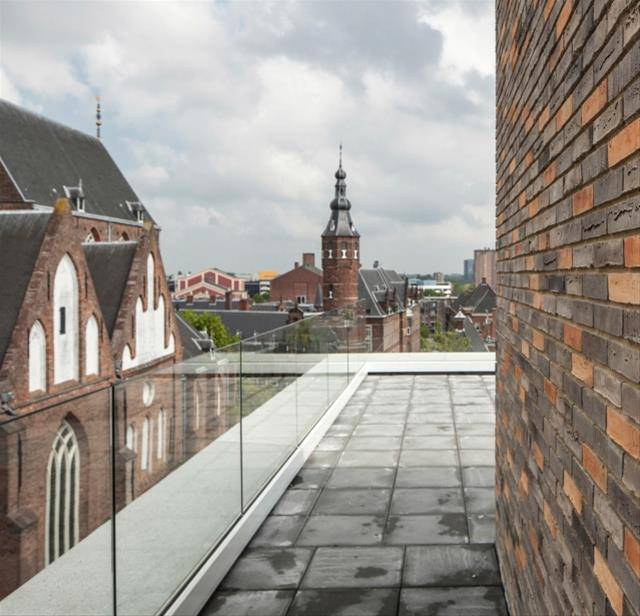

The OnLevel TL-6030 – system competence at its very best, with fascinating and stylish design, durable quality and uncompromising safety coming together.

Jump to:
+44 (0)161 8049500 www.onlevel.com
Application

Used in both interior and exterior private, commercial and public areas, including those which are highly frequented. Also suitable for:

  • Model, TL-6030: Completely concealed installations and applications in the public area. If used in conjunction with structural connection profiles, application versatility will increase – consult manufacturer for details.
  • Model, TL-6031: Suitable for extreme loads and installations without screed onto steel or concrete.

Description

Frameless glass top and side mount balustrade system for line loading in accordance with BS 6180:2011 of extreme loads up to 3.0 kN.

Features and benefits:

  • Quick and simple mounting.
  • Suitable for glass thicknesses between 21.52 and 31.52 mm.
  • Includes drainage holes and extension pin holes.
  • Slimline design which remains almost invisible.
  • Low maintenance.
  • Versatile and cost-effective.
  • OnLevel Flex-Fit glass adjustment tool included.
  • CE-marked, and manufactured in accordance with BS 6180 and BS EN 1090-1 and -3 (EXC 3).

Applications:

Used in both interior and exterior private, commercial and public areas, including those which are highly frequented. Also suitable for:

  • Model, TL-6030: Completely concealed installations and applications in the public area. If used in conjunction with structural connection profiles, application versatility will increase – consult manufacturer for details.
  • Model, TL-6031: Suitable for extreme loads and installations without screed onto steel or concrete.

General information
Uniclass 2015
Ss_25_60_05_05 Balustrade and guarding systemsPrimary
Specification data - Balustrade and guarding systems
Product Reference

Frameless Glass Balustrade Top Mount Model, TL-6030

Frameless Glass Balustrade Side Mount Model, TL-6031

With integrated multifunctional chamber included for enabling larger drilling distances.

Type

End cap, left

For TL-6031 only.

End cap, left/ right

For TL-6030 only.

End cap, right

For TL-6031 only.

Glass profile

Inside corner, 90°

For TL-6031 only.

Inside/ outside corner 90°

For TL-6030 only.

Outside corner, 90°

For TL-6031 only.

Cover

Required

For TL-6031 only.

Not required

Glass adjustment

Flex-Fit 2.0 kN

Insert size requirements.

Accessories/ Other requirements

Not required

Blanking plug

For TL-6031 only. 17 required per 2500 mm.

Extension pin

For TL-6031 only. 40 x 6 mm (l x diameter).

Fischer fixing anchor FAZ II 12/15 SK

25 required per 2500 mm.

Standard product features

Line loading in accordance with BS 6180:2011:

3.0 kN.

Product Options

Type:

Consult manufacturer for appropriate sizes and insert product reference above.

All items are one-piece units.

- End cap, left:

Frameless Glass Balustrade Side Mount Model, TL-6031:

Available in plain aluminium (10.6031.400.11).

- End cap, left/ right:

Frameless Glass Balustrade Top Mount Model, TL-6030:

Available in plain aluminium (10.6030.490.11).

- End cap, right:

Frameless Glass Balustrade Side Mount Model, TL-6031:

Available in plain aluminium (10.6031.450.11).

- Glass profile:

Frameless Glass Balustrade Top Mount Model, TL-6030:

  • 125 x 69 x 2500 mm (h x w x l).
  • Available in plain aluminium (10.6030.002.11).

Frameless Glass Balustrade Side Mount Model, TL-6031:

  • 170 x 70 x 2500 mm (h x w x l).
  • Available in plain aluminium (10.6031.002.11).

- Inside corner, 90°:

Frameless Glass Balustrade Side Mount Model, TL-6031:

  • Side length is 130 mm (inside) and 200 mm (outside).
  • Available in plain aluminium (10.6031.300.11).

- Inside/ outside corner, 90°:

Frameless Glass Balustrade Top Mount Model, TL-6030:

  • Side length is 131 mm (inside) and 200 mm (outside).
  • Available in plain aluminium (10.6030.390.11).

- Outside corner, 90°:

Frameless Glass Balustrade Side Mount Model, TL-6031:

  • Side length is 130 mm (inside) and 200 mm (outside).
  • Available in plain aluminium (10.6031.350.11).

- Glass adjustment:

Adjustment of up to 34 mm in relation to the vertical axis. Available in 2500, 5000 or 25 000 mm.

Accessories/ Other requirements:

- Blanking plug:

A variety of colours and diameters are available – consult manufacturer for information.

- Extension pin:

Interior and exterior application: V4A (90.7001.640.31).

- Fischer fixing anchor FH 12/15 SK:

  • Interior application: Zinc-plated steel (91.3511.215.81).
  • Exterior application: V4A (91.3511.215.30).

Digital objects
PlatformCompatibleVersionCertified to
Revit
 Revit 2017 1 2.1
Download now from NBS National BIM Library
