TL-5010 FlexFit Railing-Base Range

OnLevel Ltd

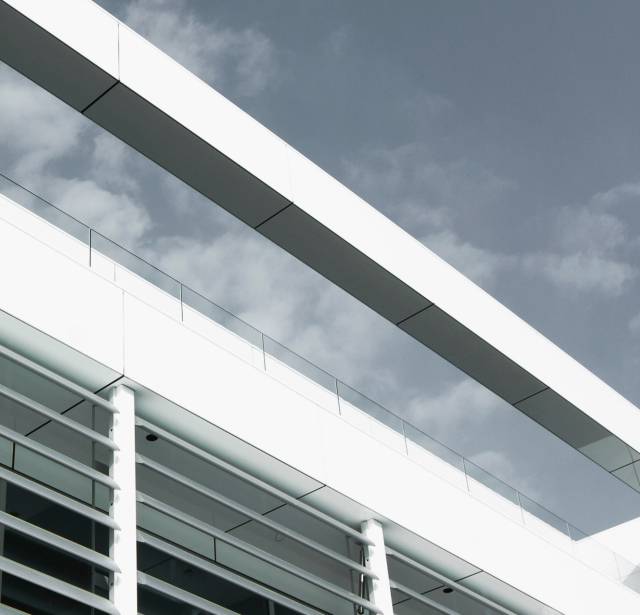

Frameless glass top mount balustrade system for line loading in accordance with BS 6180:2011 of more than 0.74 kN.

Jump to:
+44 (0)161 8049500 www.onlevel.com
Application

Used in both interior and exterior private and commercial areas. Suitable for:

  • Roof installations: Insulated flat roofs.
  • Hollow facades: Clamp mounted installation.

Description

Frameless glass top mount balustrade system for line loading in accordance with BS 6180:2011 of more than 0.74 kN.

Features and benefits:

  • Quick and simple mounting.
  • Suitable for glass thicknesses between 12 and 21.52 mm.
  • Only requires three fixing points up to lengths of 2500 mm due to optimum stiffeners.
  • Includes drainage holes and extension pin holes.
  • The mounting post can be adjusted individually.
  • Efficient and cost-effective.
  • OnLevel Flex-Fit glass adjustment tool included.
  • CE-marked, and manufactured in accordance with BS 6180 and BS EN 1090-1 and 3 (EXC 3).

Applications:

Used in both interior and exterior private and commercial areas. Suitable for:

  • Roof installations: Insulated flat roofs.
  • Hollow facades: Clamp mounted installation.

General information
Size

1200 mm (maximum height). Consult manufacturer and insert requirements.

Uniclass 2015 Balustrade and guarding systems (Ss_25_60_05_05)
Specification data
Product Reference

Frameless Glass Balustrade Top Mount, TL-5010

With integrated multifunctional sophisticated chamber.

Type

End cap, left

End cap, right

Glass profile

Inside corner, 90°

Outside corner, 90°

Posts

Three required per 2500 mm.

Size

1200 mm (maximum height). Consult manufacturer and insert requirements.

Glass adjustment

Flex-Fit 1.0 kN

Insert size requirements.

Accessories/ Other requirements

Not required

Extension pin

40 x 6 mm (l x diameter).

Fischer fixing anchor RG M12x180

Six required per 2500 mm.

Mounting block

Three required per 2500 mm.

Standard product features

Line loading in accordance with BS 6180:2011:

0.74 kN.

Product Options

Type:

Consult manufacturer for appropriate sizes and insert product reference above.

All items are one-piece units.

- End cap, left:

Available in plain aluminium (10.5010.400.11).

- End cap, right:

Available in plain aluminium (10.5010.450.11).

- Glass profile:

  • 147 x 65 mm (h x w).
  • 2500 mm (l): Available in plain aluminium (10.5010.002.11).
  • 5000 mm (l): Available in plain aluminium (10.5010.005.11).

- Inside corner, 90°:

  • Side length is 135 mm (inside) and 200 mm (outside).
  • Available in plain aluminium (10.5010.300.11).

- Outside corner, 90°:

  • Side length is 135 mm (inside) and 200 mm (outside).
  • Available in plain aluminium (10.5010.350.11).

- Posts:

  • 300 x 170 mm (l x w).
  • 200 mm (h): Interior application: Zinc-plated steel (90.9002.200.81).
  • 300 mm (h): Interior application: Zinc-plated steel (90.9002.300.81).

- Glass adjustment:

Adjustment of up to 34 mm in relation to the vertical axis. Available in 2500, 5000 or 25 000 mm.

Accessories/ Other requirements:

- Extension pin:

Interior and exterior application: V4A (90.7001.640.31).

- Fischer fixing anchor RG M12x180:

  • Interior application: Zinc-plated steel (91.3541.218.81).
  • Exterior application: V4A (91.3541.218.30).

- Mounting block:

  • 170 x 15 x 40 mm (l x h x w).
  • Interior application: Zinc-plated steel (90.7004.170.81).

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
