Timberplay Climbing Structure Frames
Verified by manufacturer 6 months ago

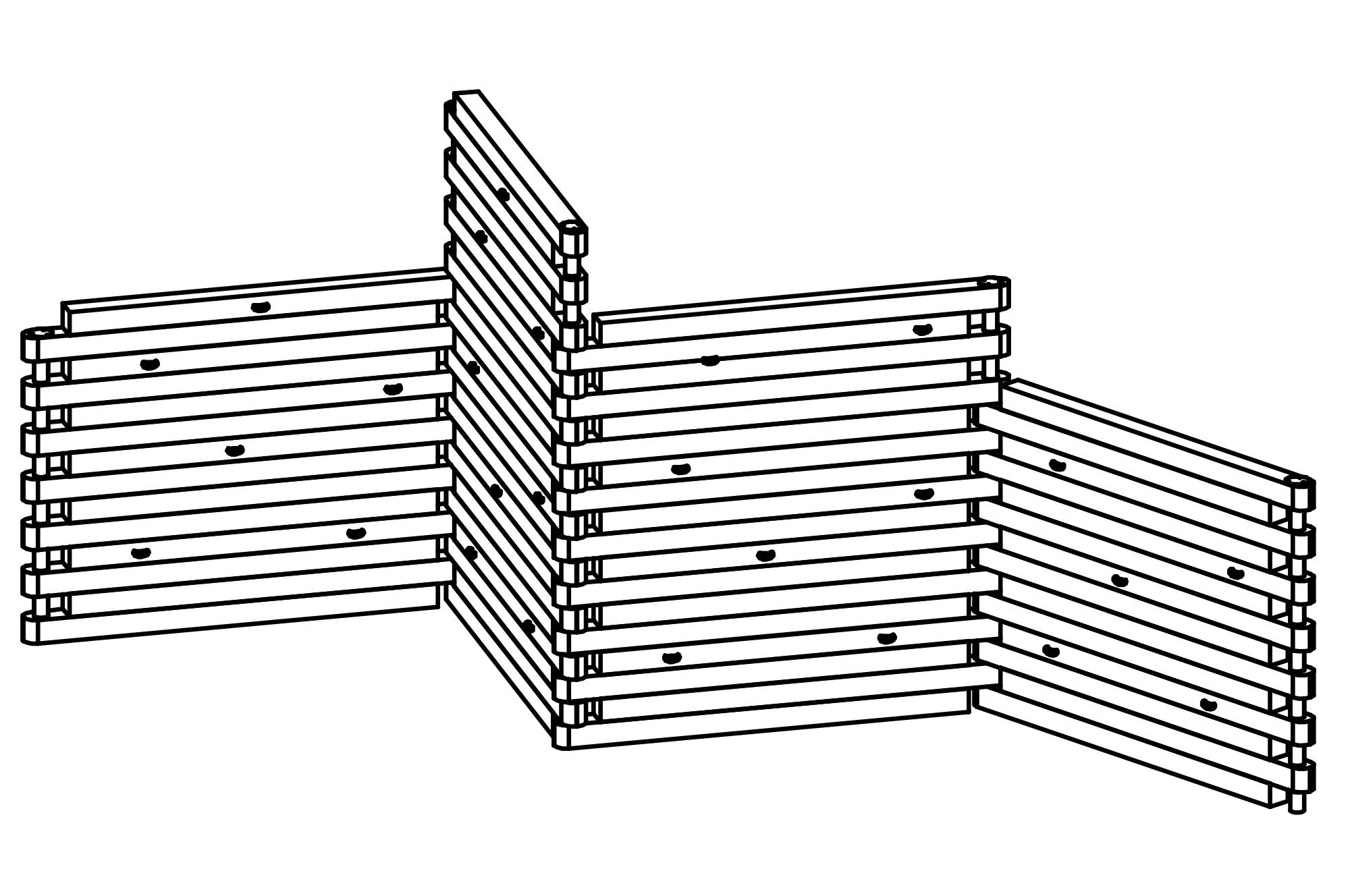

7.77060 - Climbing Wall with 4 Elements
7.77060 - Climbing Wall with 4 Elements
PEFC
Certificate type
TUV - Safety and Quality Report
Certificate type
TUV - Safety and Quality Report
Certificate type
A range of timber climbing structure frames.
Application
Recommended for:
Climbing Structure 07, 08, 09, 18 & 19.
- Schoolchildren.
- Supervised play areas, such as kindergartens, schools, after-school programmes or similar.
- Public play areas without supervision, such as playgrounds, parks or similar.
6.49020 - Rope Course Type 02.
- School children.
- Young people
- Supervised play areas, such as kindergartens, schools, after-school programmes or similar.
- Public play areas without supervision, such as playgrounds, parks or similar.
Climbing Stack 01 & 03.
- School children.
- Young people.
- Supervised play areas, such as kindergartens, schools after-school programmes or similar.
- Public play areas without supervision, such as playgrounds, parks or similar.
4.20000 - Climbing Loom.
- Kindergarten children.
- School children.
- Supervised play areas, such as kindergartens, schools, after-school programmes or similar.
- Public play areas without supervision, such as playgrounds, parks or similar.
4.19200 Rope Pyramid.
- School children.
- Young people.
- Supervised play areas, such as kindergartens, schools, after-school programmes or similar.
- Public play areas without supervision, such as playgrounds, parks, leisure parks or similar.
Climbing Pyramid: Small 4.21110 & Large 4.21100
- Kindergarten children.
- School children.
- Supervised play areas, such as kindergartens, schools, after-school programmes or similar.
- Public play areas without supervision, such as playgrounds, parks, leisure parks or similar.
Climbing Wall Models: 7.77010 & 7.77060
- School children.
- Young people.
- Public play areas without supervision, such as playgrounds, parks or similar.
- Leisure parks.
Description
A range of timber climbing structure frames.
Features and benefits:
Climbing Structure Models: 6.51007, 6.51008, 6.51009, 6.51018 & 6.51019.
- Natural, strong posts.
- No pre-determined play procedures, also able to be used in stages, individual mastering.
- Incentive for playing: strong, challenging construction.
- Movement: climbing balancing, doing exercise.
6.49020 - Rope Course Type 02.
- Unique invitation for playing thanks to cylindrical concrete columns.
- Practising self-protective reflexes.
- Incentive for playing: various opportunities for climbing, role-playing games.
- Movement: climbing balancing.
Climbing Stack Models : 4.21000 & 4.21030
- Impressive design statement.
- Attractive meeting point.
- No pre-determined play procedures, also cable to be used as stands for spectators, individual mastering.
- Incentive for playing: experiencing height.
- Movement: climbing up and around, balancing
4.20000 - Climbing Loom.
- Logs arranged like a loom.
- Peepholes at the side.
- Movement: climbing up and around, crawling.
4.19200 Rope Pyramid.
- Child-orientated dimensions according to ergonomic criteria.
- Very appealing design.
- Movement: climbing, sitting, balancing.
Climbing Pyramid Models: 4.21110 & 4.21100
- Impressive design statement.
- Very special appeal.
- Eye-catcher of a play area.
- Attractive meeting point.
- Incentive for playing: curiosity, roleplaying games, experiencing height.
- Movement: climbing up.

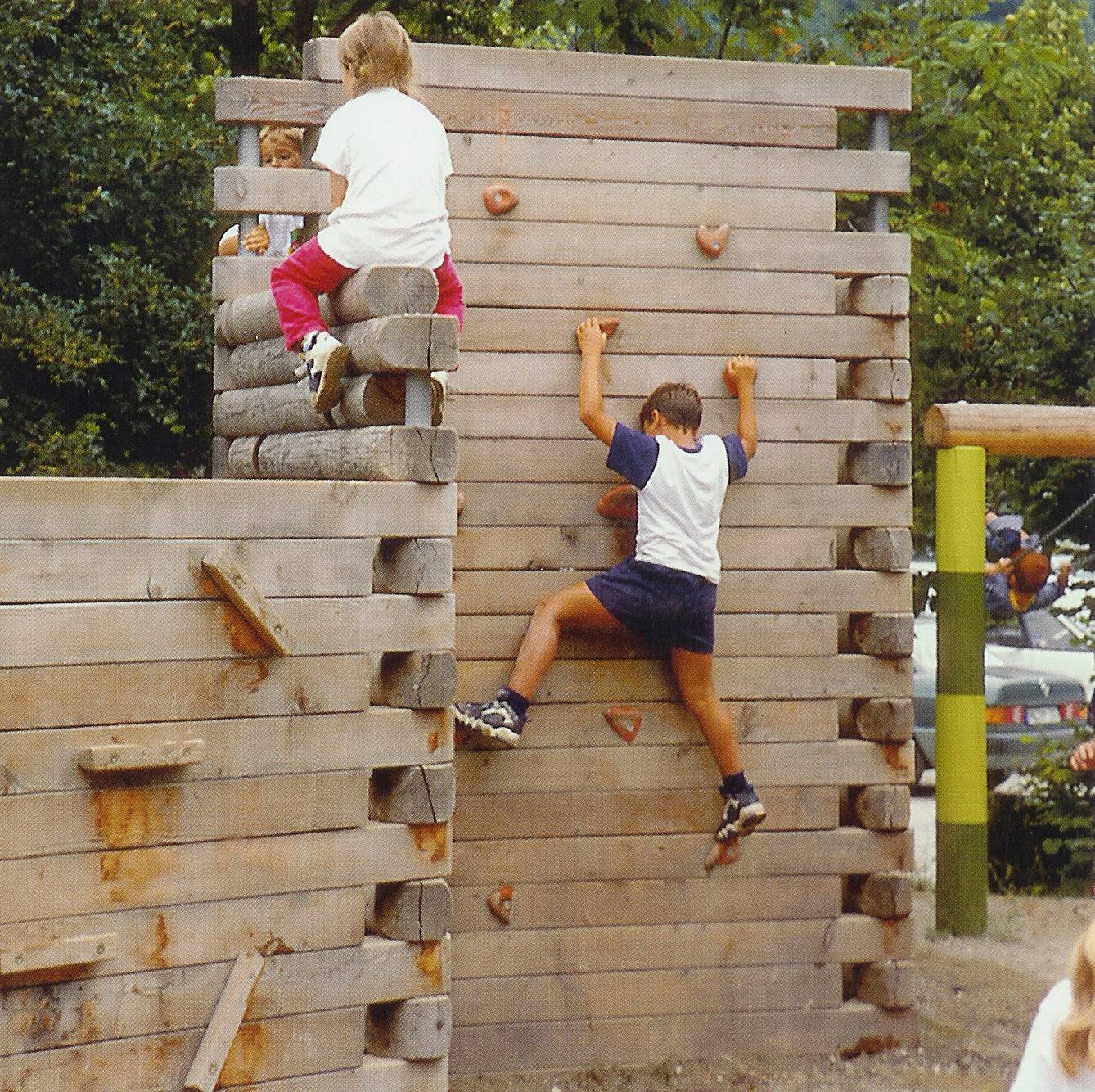

Climbing Wall Models: 7.77060 & 7.77010
- Sturdy construction allows for freestanding installation.
- Can be climbed from both sides.
- Space-forming element.
- Incentive for playing: climbing grips, height, connecting element.
- Movement: climbing.
Website links for standard DWG files:
6.51007 - https://www.timberplay.com/product/6.51007
6.51008 - https://www.timberplay.com/product/6.51008
6.51009 - https://www.timberplay.com/product/6.51009
6.51018 - https://www.timberplay.com/product/6.51018
6.51019 - https://www.timberplay.com/product/6.51019
6.49020 - https://www.timberplay.com/product/6.49020
4.20000 - https://www.timberplay.com/product/4.20000
4.21000 - https://www.timberplay.com/product/4.21000
4.19200 - https://www.timberplay.com/product/4.19200
4.21100 - https://www.timberplay.com/product/4.21100
4.21110 - https://www.timberplay.com/product/4.21110
4.21030 - https://www.timberplay.com/product/4.21030
7.77010 - https://www.timberplay.com/product/7.77010
7.77060 - https://www.timberplay.com/product/7.77060
Other size structures are available, please contact 01142823474 for more information.
General information
Color | Other Guidance for specification option: Natural wood finish. |
Finish | Natural Sandblasted |
Material | Wood Guidance for specification option:
Concrete Guidance for specification option: Self-compacting reinforced concrete. |
Shape | Rectangle Triangle Circle Other |
Length | 1030 mm 1065 mm 1115 mm 1170 mm 2300 mm |
Width | 1200 mm 2300 mm 2550 mm 2700 mm 3100 mm |
Height | 900 mm 1200 mm 1500 mm 1700 mm 1900 mm |
Warranty description | Two year Ten year Manufacturer guidanceNets - 2 years Structure - 10 years |
Uniclass | |
CAWS | Q52/330 Climbing frame |
SKU Code | 6.51007, 6.51008, 6.51009, 6.51018, 6.49020, 4.21000, 4.20000, 6.49020, 4.19200, 4.21030, 4.21110, 6.51019, 7.77060, 7.77010 |
Product range |
Specification data - Climbing frames
Classification data | |
Standard | To DIN EN 1176. Guidance for specification option: Safety check according to DIN EN 1176 and “safety in another way”. |
Age range | Manufacturer guidanceSchool children and young people; consult manufacturer for more details and insert requirements. |
Plan size | Element width: 2.55 m. Manufacturer guidanceSmall deviations possible. |
Height | 1.90/ 3.00/ 2.50/ 1.90 m. Manufacturer guidanceSmall deviations possible. |
Materials | Non-impregnated mountain larch. |
Finish as delivered | |
Finish type | Manufacturer's standard. |
Film thickness (minimum) | Coating applicator to determine. |
Colours | Manufacturer's standard. |
Accessories | Professional climbing grips made of a mixture of sand-synthetic resin. Guidance for specification option: With anti-rotation system against unintended twisting of the grips. |
Components | Four wall elements of 2 x 7 m, 1 x 11 m and 1 x 9 m double layer modules with steel grips. Five steel tubes as ground anchors. |
Base | Ground anchored. Guidance for specification option: All parts used for anchoring to the ground are made of hot-dip galvanized steel or stainless steel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Wood Guidance for specification option:
Concrete Guidance for specification option: Self-compacting reinforced concrete. |
Recyclability | Various materials within the structure(s) are recyclable. Please feel free to contact us for more information. |
Expected Life | Manufacturer guidanceIf the maintenance instructions are properly followed, we anticipate that the product will exceed its warranty period in terms of longevity |
