Timber Front Glazed Door – Heritage Range - Doors

Verified by manufacturer 6 months ago

The Sash Window Workshop Third party certifications:
  • British Woodworking Federation

    British Woodworking Federation

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

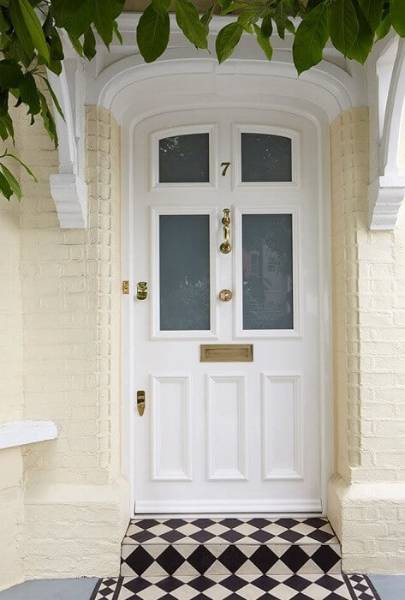

Traditionally made glazed timber front door sets for period properties, including listed buildings.

Jump to:
+44 (0)1344 868 668 Website

Application

Suitable for listed properties and conservation areas.

Description

Traditionally made glazed timber front door sets.


The doors are manufactured from Accoya™ and are supplied with hardwood thresholds.


Features and benefits:

  • Double glazed (Non-Document L).
  • Designed for listed buildings and Article 4 Conservation Areas where standard double glazing isn't permitted.
  • Classical and elegant.
  • Doors can be designed to match the existing door design, and bespoke solutions are available.
  • A range of standard panel details are available to suit.

General information

Color

White

Other

Finish

Painted

Material

Wood

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Guidance for specification option:

Joinery guarantee.

Consult the manufacturer's Supply Only Warranty and Supply and Install Warranty and Maintenance Guide for details.

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/420 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Configuration

Single-leaf.

Doorset size

-

Manufacturer guidance

Insert requirements or refer to a drawing or schedule.

Performance

-

Intruder resistance

-

Minimum requirement

-

Manufacturer guidance

PAS 24 option is not available for the heritage range.

Frame

-

Material

Timber/ modified wood.

Species

Accoya.

Threshold

Hardwood.

Perimeter seals or inserts

Reddiseal R12 weatherseal.

Finish

3–4 coats white semi-gloss micro porous paint system. Varnished oak threshold.

3–4 coats white semi-gloss micro porous paint system. Painted hardwood threshold.

Colour match custom finish.

Guidance for specification option:

Consult manufactuer for details. No high gloss options provided.

External

White.

Custom.

Guidance for specification option:

Consult manufacturer and insert requirements.

Internal

White.

Custom.

Guidance for specification option:

Consult manufacturer and insert requirements.

Door leaf

-

Thickness

56 mm.

Panel details

Ovolo moulding with raised and fielded panels both sides.

Ovolo moulding with raised and fielded panel one side.

Bolection moulding with flat panels.

Bolection moulding with raised and fielded panels.

Pencil bead moulding with flush panels.

Bevelled (tongue and groove) moulding with flush panels.

Trimmed ogee moulding with flat panels.

Ovolo moulding with flat panels.

Manufacturer guidance

  • Panels can also be mixed, i.e. bolection moulding externally with internal bevelled tongue and groove.
  • Insulated panels 30/ 44/ 56 mm.

Finish

3–4 coats white semi-gloss micro porous paint system. Varnished oak threshold.

3–4 coats white semi-gloss micro porous paint system. Painted hardwood threshold.

Colour match custom finish.

Guidance for specification option:

Consult manufactuer for details. No high gloss options provided.

Colour

-

External

White.

Custom.

Guidance for specification option:

Consult manufacturer and insert requirements.

Internal

White.

Custom.

Guidance for specification option:

Consult manufacturer and insert requirements.

Glazing

-

Type

Double glazing.

Guidance for specification option:

  • Maximum unit: 4 / 8 / 8.8 mm.
  • Single glazed available on request.

Hardware

Minimum 3 no. 100 mm stainless steel security hinges per door leaf; Five lever suited keyalike Euro dead lock; High security suited keyalike night latch lock; Letter plate draught sealed with back plate; Door centre knob, door knocker, door viewer, numerals, security chain, London bar, Birmingham bar; Banham high security locks; 6 inch carriage bolts.

Guidance for specification option:

A full range of ironmongery available at extra cost. Consult manufacturer for details

Door frame profile

Ovolo.

Pencil bead.

Special.

Door profiles

Ovolo.

Lambs tongue.

Special.

Glazing bars

Not required.

24 mm.

30 mm.

35 mm.

Spacer bar

White.

Black.

Sustainability data

Contains Red List materials

No

Country of material origin

New Zealand

Country of product manufacture

United Kingdom

Material

Wood

Third party certifications

British Woodworking Federation

British Woodworking Federation Membership

Health & Safety Accreditation

SafeContractor Certificate
