Stainless steel timber frame wall ties.
Application

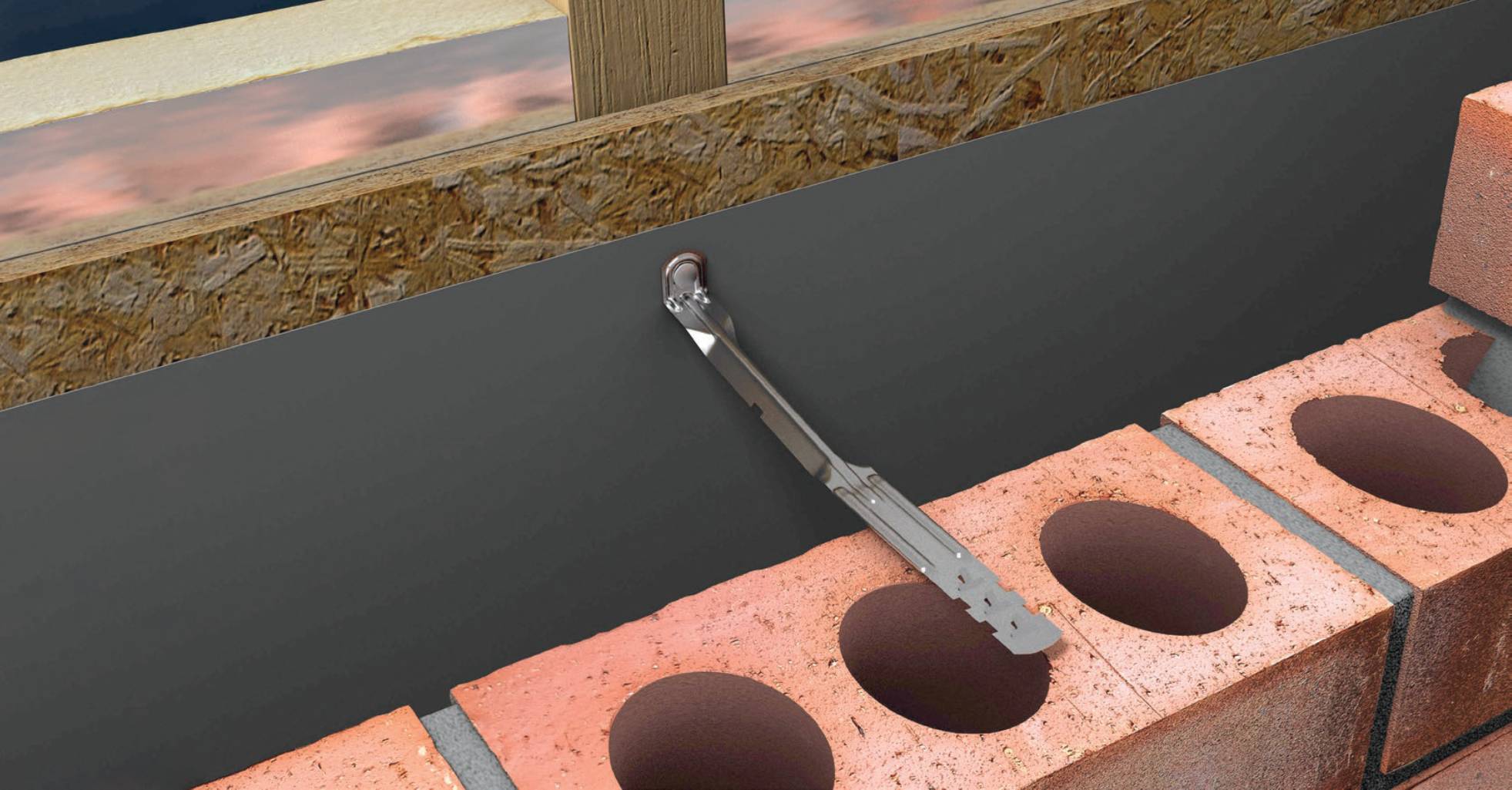

Suitable for fixing brickwork or blockwork to the timber frame up to a maximum of four storeys and 15 m in height.
Description
The TecTies Timber Frame Wall Ties are manufactured to accommodate all types of timber frame structures. They can fix brickwork or blockwork to the timber frame up to a maximum of four storeys and 15 m in height. Fully tested to BS EN 846-6. The ties meet the requirements of BS EN 845 1 as a Type 6 tie and meet the technical requirements of NHBC.
It is recommended that TecTies Timber Frame Ties are installed at a density of 4.4 ties per square metre in buildings where the basic wind speed does not exceed 25 m/s. This density should be increased to 7.0 ties per square metre in more severe situations.
Features and benefits:
- TecTies Timber Frame Ties are supplied with stainless steel annular ring shank nails.
- Manufactured in five sizes to suit 50, 75, 100, 125 and 150 mm cavity widths.
- All TecTies cavity wall ties are independently tested at Lucideon, a notified body number 1289 to comply with BS EN 845-1.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Rectangle |
Length | 125 mm 150 mm 175 mm 200 mm 225 mm |
Width | 50 mm 75 mm 100 mm 125 mm 150 mm |
Height | Bespoke |
Uniclass | |
CAWS | F30/24 Cavity wall ties F30/214 Cavity wall ties |
Specification data - Cavity wall ties
Standard | To BS EN 845-1:2013. |
Tie type | Type 6. |
Material | Stainless steel. |
Length | 125 mm.150 mm.175 mm.200 mm.225 mm. |
Additional requirements | |
Compressive load capacity | 560 N. |
Tensile load capacity | 1349 N. |
Cavity width | 50 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | India |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
ISO 9001 Quality Management
ISO 9001 :2015
DoP
Timber Frame Ties TTTF 100mm - 100mm cavity - DoP
DoP
Timber Frame Ties TTTF 50mm - DoP
DoP
Timber Frame Ties TTTF 75mm - DoP
DoP
TTTF DOP 125-150
