Timber curtain walls
Verified by manufacturer over a year ago
FSC
Certificate type

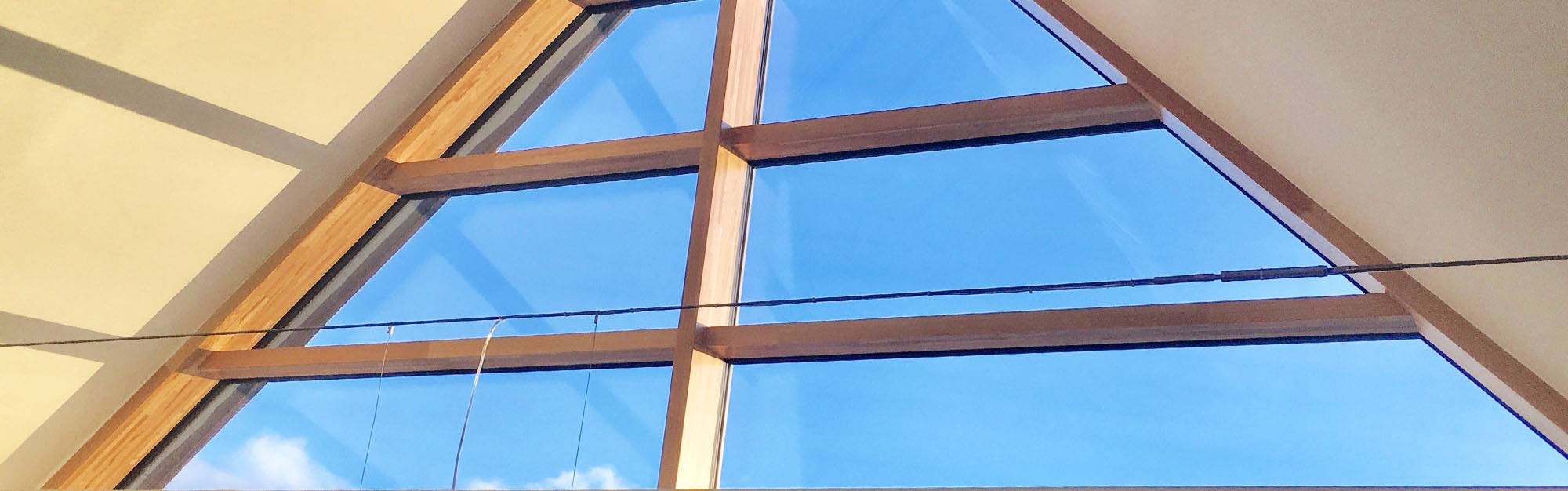

Timber-aluminium curtain wall with internal wood and external aluminium cladding.
Application
- Suitable for residential applications.
- Any type of window (both tilt & turn and casement), entrance door and sliding doors can integrate with this system.
Description
The use of wood-alum systems and large glass panes allow for the creation of distinctive design features that will bring light and the feeling of space to rooms of all shapes and sizes.
Features and benefits:
- An exclusive, modern and energy-saving solution.
- Available in several wood types.
- Any RAL colour can be used for outside aluminium cladding.
- Large glass panes for rooms of all shapes and sizes.
- Pressure plate fixed and can take dual or triple sealed units.
- Offer a robust, concealed fasting system to bear almost any structural load.
- The wood used is sourced from sustainable and managed forestry (FSC or PFEC certified).
- The large glass units and innovative thermal system mean that the curtain walls comply with the stringent requirements of the Passivhaus standard.
General information
Color | Clear White Black |
Finish | Clear |
Material | Timber Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Unitized curtain walling systems
Framing | |
Framing members | Laminated pine.Laminated hardwood.Manufacturer guidanceFactory finished with three coat spray using water based Teknos micro-porous paint/ stain. |
Cladding units | |
Glass units | Insulated glass units (IGUs), dual sealed.Insulated glass units (IGUs), triple sealed.Guidance for specification option: 48 mm triple glazed as standard. Manufacturer guidanceThickness options from 9-64 mm. Consult with manufacturer and insert requirements. |
Perimeter seals | Fully weather sealed.Guidance for specification option: Tested to EN standards. |
External finish (aluminium components) | Polyester powder coating, RAL colour. Guidance for specification option: As standard - insert requirements. |
Capping | Aluminium. Guidance for specification option: Standard. Available in a full RAL colour range. Hardwood. Guidance for specification option: Optional. Manufacturer guidanceExternal capping. |
Face width | 50 mm. 60 mm. 80 mm. |
Watertightness | RE1200. |
Air permeability | AE. |
Wind load | 1500 Pa/ 2250 Pa. |
Thermal insulation | Down to 0.63 W/m²K. Guidance for specification option: Depends on the frame combination and the glass thickness. |
Perimeter spacer bar | White warm edge. Guidance for specification option: As standard. Silver. Guidance for specification option: Optional. Black. Guidance for specification option: Optional. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Lithuania |
Country of product manufacture | Lithuania |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
FSC
FSC certificate
