Timber Core Acoustic Pivoting Door

Name: Timber Core Acoustic Pivoting Door
Brand: Radii
SKU: 5H8UYZDr2RyroeJRDTsuHX

Verified by manufacturer 10 days ago

Dovetail 64 mm: 40 dB Rw

Radii

Third party certifications:

ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

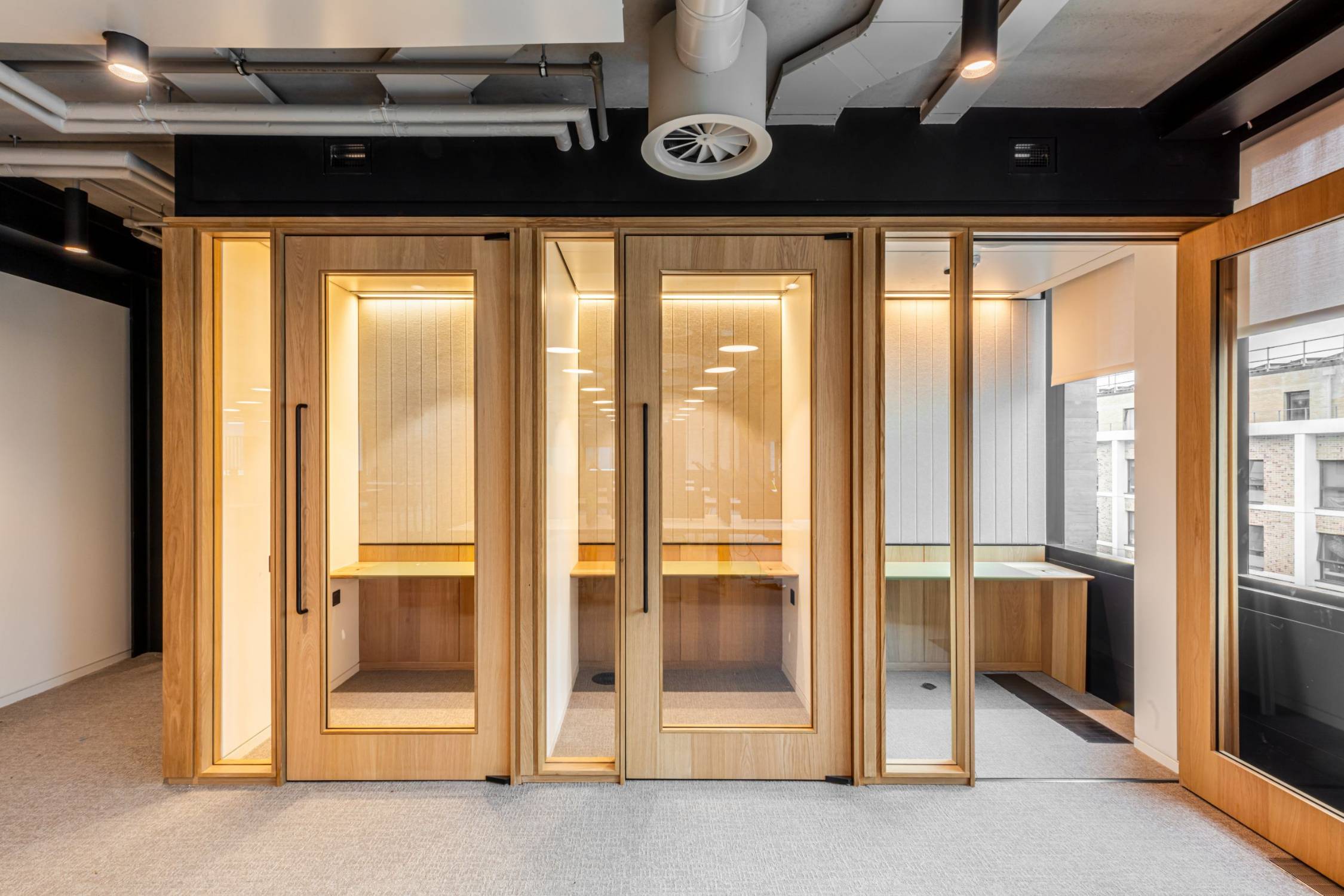

Radii timber pivoting doors are available in with either aluminium or timber frames, with numerous finishes available to work within a specific design.

Jump to:

+44 (0)20 7952 4830 Website

Application

All sectors: Commercial, Education, Healthcare, MOD, Airport and Rail, Industrial, Hospitality, Residential and Public.

Description

Radii 64 mm timber doors offer acoustic performance up to Rw 40 dB and are available in a range of colours and finishes to suit the specific design needs of a project.

Features and benefits:

Manufactured with an enhanced acoustic core.
Aluminium or timber frame options.

Please note that acoustic, fire rated and structural certification and support for Radii products and systems is available on a project-specific basis. Please contact the specification team directly for further information.

General information

Color	Other
Finish	Veneered Lacquered Laminated
Material	Timber
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Please consult with manufacturer.

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets

Product range	Radii Doorsets / Pivoting Doors

Specification data - Aluminium doorsets

Configuration	Double doors. Micro framed. Single action single leaf. Unequal leaf doors.
Doorset size	- Manufacturer guidance Door leaf width upto 1200 mm, structural opening height upto 3000 mm - Consult with manufacturer.
Performance	-
Acoustic performance	40 dB Rw.
Frame	-
Material	Aluminium. Guidance for specification option: Compatible with Radii Systems: L25, L30, L50, P50, P100 & P125
Threshold	Drop threshold seal.
Perimeter seals or inserts	Black perimeter compression seals.
Finish	-
Coating	Polyester powder coated RAL. Polished and chemically brightened. Linish and chemically brightened. Etch and anodized.
Colour	- Manufacturer guidance Insert Ral Color and Gloss Lever or Anodized colour Reference
Installation fasteners	To manufacturers specification, type, length and frequency to suit substrates.
Frame accessories	Glazed fanlight to non-full height doors, tech panel to incorporate room booking systems, access control and other electronics.
Door leaf	-
Thickness	64 mm.
Core	Timber - species TBC.
Panel details	Acoustic door core.
Material	Veneered. Lacquered. Laminated.
Lippings	To match door finish.
Perimeter seals	Black perimeter compression seals.
Glazing	-
Type	Not required. Vision panel. Guidance for specification option: Vision panels available on request.
Manifestation	To architect design.
Beading	-
Type	Beading available - profile to be selected by architect. Manufacturer guidance Dependent on door core used - consult with manufacturer.
Material	MDF.
Fixing	Bonded.
Finish	-
Coating	Lacquer requirements to be set out by architect.
Texture	Smooth.
External colour	- Manufacturer guidance Dependent on project requirements - consult with manufacturer.
Internal colour	- Manufacturer guidance Dependent on project requirements - consult with manufacturer.
Hardware	Handles. Guidance for specification option: Full compatibility with bolt through and bonded handles pull handles as well as lever handle options. Project specific Ironmongery to be specified to manufacturer. Pivots. Guidance for specification option: Radii Face-fix pivot kits / Lift off Hinges. Locks. Guidance for specification option: Hand height or base rail locking available. Access control. Guidance for specification option: Abloy 351M80 / EL560 can be accepted into door and frame Mag lock with bonded armature housing Manufacturer guidance Consult with the manufacturer for compatibility.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Timber
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance Dependent on door core used - consult with manufacturer.
Recyclability	- Manufacturer guidance Dependent on door core used - consult with manufacturer.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Dependent on door core used - consult with manufacturer.

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Certificate

ISO 9001 Quality Management

ISO 9001 Certificate

Literature

ISO14001 Certificate of Registration

ISO45001 Certificate of Registration

ISO9001 Certificate of Registration

Radii Client Support & Aftercare Flyer
