Thermostatic Balancing Valve
Verified by manufacturer 26 days ago
NSF International
Certificate type
Thermostatic balancing valves
Application
For domestic hot water recirculation system.
Description
TBV is the Thermostatic Balancing Valve for domestic hot water recirculation systems with automatic or controlled disinfection function.
The presence of a temperature-sensitive sensor enables automatic balancing of the flow in the recirculation system,
ensuring equal hot water flow at the desired temperature to all distribution columns.
Features and benefits:
- For use in domestic hot water recirculation systems.
- Ensures equal balance and temperature in all sections of the pipeline.
- Designed to house a sensor for remote temperature control.
- Adjustment range: 35–60°C.
- Disinfection Temperature: 70°C.
- TBV the Thermostatic Balancing Valve for domestic hot water recirculation systems.
- TBV PLUS is equipped with anti-legionella thermal disinfection function through a second thermostatic cartridge.

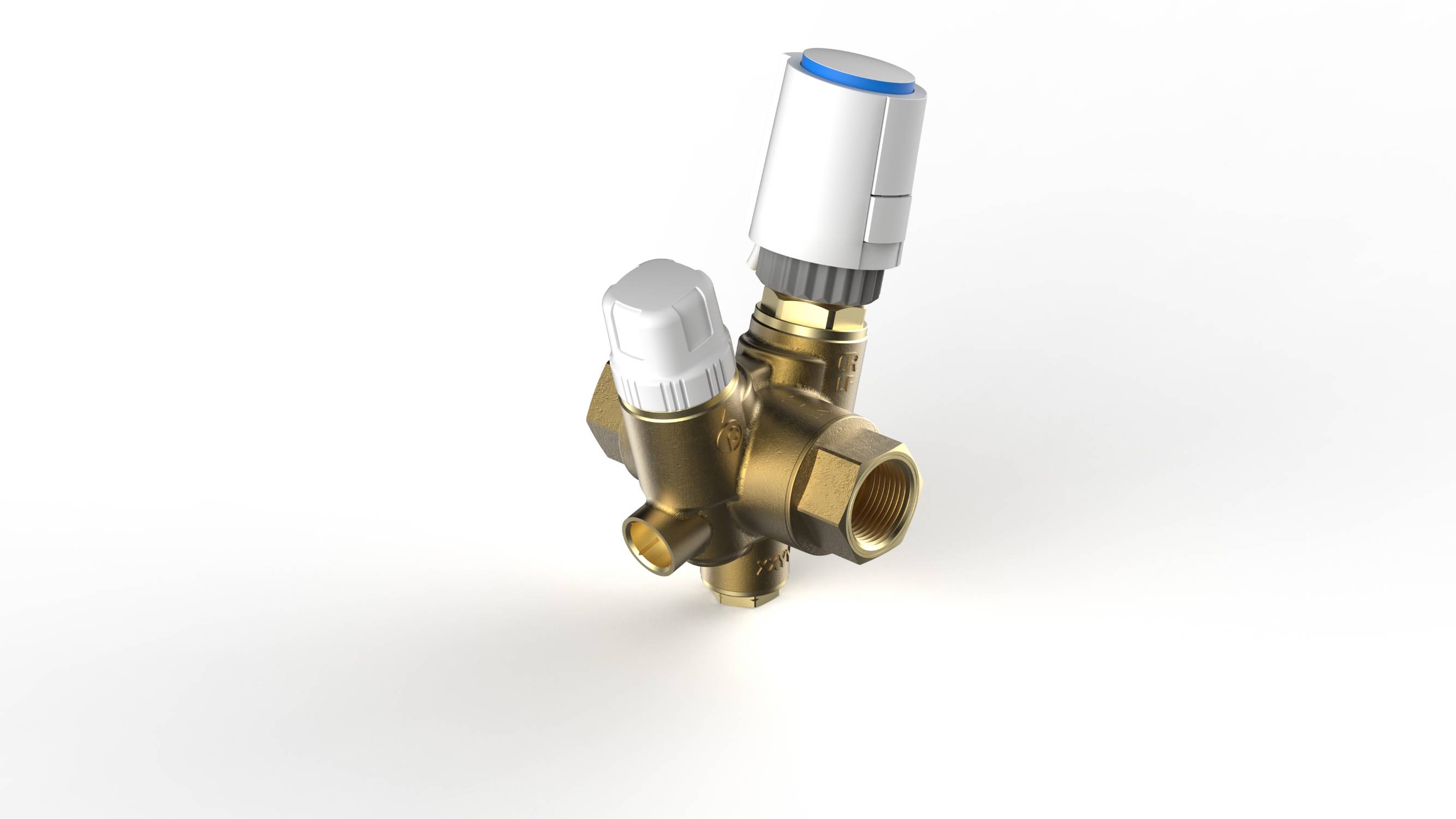

- TBV ULTRA is equipped with an actuator-controlled disinfection function.
General information
Color | Yellow Silver |
Finish | Brass |
Material | Brass EPDM Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Length | 93 mm |
Width | 91 mm 97 mm |
Height | 120.5 mm 112 mm 113 mm |
Warranty description | Five year |
Uniclass | |
CAWS | S90/150 Indirect hot water storage supply S90/140 Direct hot water storage supply |
Specification data - Thermostatic mixing valves
Arrangement | TB20 – TB20/2.Guidance for specification option: Adjustable thermal balancing valve for sanitary hot water recirculation systems, made by lead free corrosion resistant brass conform to European (UBA-List and 4 MS) and USA (NSF) standard requirements. Available with female x female and male x male connections. Available optionals: T39P/80 thermometer and reduction 0TB02 ½ "M x (M10x1) to install a probe for remote monitoring of the water temperature. TB30 – TB30/2.Guidance for specification option: Adjustable thermal balancing valve for sanitary hot water recirculation systems, made by lead free corrosion resistant brass conform to European (UBA-List & 4 MS) and USA (NSF) standard requirements. Equipped with Thermal element for automatic anti legionella treatment. Available with female x female and male x male connections. Available optionally: T39P/80 thermometer and reduction 0TB02 ½ "M x (M10x1) to install a probe for remote monitoring of the water temperature. TB50 – TB50/2.Guidance for specification option: Adjustable thermal balancing valve for sanitary hot water recirculation systems, made by lead free corrosion resistant brass conform to European (UBA-List & 4 MS) and USA (NSF) standard requirements. Equipped with Anti legionella Disinfection device by thermoelectrical actuator. Available with female x female and male x male connections. Available optionally: T39P/80 thermometer and reduction 0TB02 ½ "M x (M10x1) to install a probe for remote monitoring of the water temperature. Manufacturer guidance
|
Connections | 1/2” F x 1/2” F.3/4” F x 3/4” F.3/4” M x 3/4” M. |
Actuator | A542O2. A542O4. A544O2. A544O4. |
Pressure | Nominal pressure 16 bar. |
Sustainability data
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Brass EPDM Acrylonitrile butadiene styrene (ABS) |
Manufacturing plant location | |
Recyclability | Return To UK Manufacturer or Recycle Locally |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
NSF International
NSF Reg 4
Literature
Pettinaroli Thermal Balancing Valve TB20 Data Sheet
Pettinaroli Thermal Balancing Valve TB30 Data Sheet
Pettinaroli Thermal Balancing Valve with TB50 Data Sheet
Pettinaroli Thermal Balancing Valve Sales Brochure
Pettinaroli Sustainability Report
