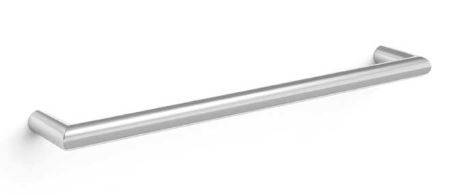

ThermoSphere Towel Bar Straight Round 12V

Compare

Favourite

ThermoSphere Towel Bar Straight Round 12V

Name: ThermoSphere Towel Bar Straight Round 12V
Brand: iuEVH4hZ3s4eEkD7W4eHEq
SKU: uewu8BvNcZ1ipbK2Zs9dot

ThermoSphere

The round profile is designed to be subtle and compliment other bathroom fixtures.

Jump to:

+44 (0) 800 019 5899 www.thermosphere.com

Description

12 V electric self-regulating heated towel bars suitable for use in wet locations.

Features and benefits:

Concealed wiring with elastomer insulation and self-regulating core.

Constant temperature maintenance: automatically adjusts power output in response to rail temperature changes, with no risk of overheating.

Maximum temperature: 45°C (no towel); 52°C (under towel).

Can be mounted under tiles or retrofitted over tiles.

12 V separated extra-low voltage (SELV) safe for installation in wet areas.

Suitable for smaller bathrooms where space is a consideration.

Mounting system allows even spacing of multiple bars and provides cable management.

Range of colours and finishes available.

Range of control options including wireless and remote (specified separately).

General information

Color	Chrome
Finish	Polished
Material	304 grade stainless steel
Shape	Straight round
Size	450 x 32 x 100 mm 632 x 32 x 100 mm
WarrantyDescription	5 years
Uniclass 2015	Pr_70_60_36_26 Electric heated towel railsPrimary
CAWS	T90/470 Towel warmer radiators

Specification data - Electric heated towel rails Enhanced data

Standard product features

Material:

1.4301 (304) grade stainless steel.

Product Options

Configuration:

- Double-ended, curved, flat profile, 700 mm:

Depth from wall (maximum): 100 mm.

Profile (h x w): 40 x 18 mm.

Output: 21 W.

Two standard fixing studs included.

Towel bar spigot required for mounting system installation (see Accessories).

- Double-ended, curved, round profile, 700 mm:

Depth from wall (maximum): 100 mm.

Profile (diameter): 40 mm.

Output: 15 W.

Two standard fixing studs included.

Towel bar spigot required for mounting system installation (see Accessories).

- Double-ended, straight, round profile, 450/ 632 mm:

Depth from wall: 100 mm.

Profile (diameter): 32 mm.

Output: 17 W (450 mm); 18 W (632 mm).

Two standard fixing studs included.

Towel bar spigot required for mounting system installation (see Accessories).

- Double-ended, straight, square profile, 450/ 632/ 832 mm:

Depth from wall: 100 mm.

Profile (h x w): 40 x 18 mm.

Output: 17 W (450 mm); 23 W (632 mm); 30 W (832 mm).

Two standard fixing studs included.

Towel bar spigot required for mounting system installation (see Accessories).

- Single-ended, straight, round profile, 400/ 600 mm:

Depth from wall: 100 mm.

Profile (diameter): 32 mm.

Output: 17 W (400 mm); 18 W (600 mm).

Fixing spigot and stainless dress ring included.

- Single-ended, straight, square profile, 400/ 600 mm:

Depth from wall: 100 mm.

Profile (h x w): 32 x 32 mm.

Output: 17 W (400 mm); 18 W (600 mm).

Fixing spigot and stainless dress ring included.

- Vertical, straight, round profile, 900 mm:

Depth from wall: 100 mm.

Profile (diameter): 38 mm.

Output: 30 W.

Towel bar mounting system:

Size (h x w x d): 1000 x 120 x 12 mm.

Towel bar spigot (single): 55 mm.

Digital objects

Platform	Compatible	Version	Certified to
IFC	-	1	2.1
Revit	-	1	2.1

Download now from NBS National BIM Library
