Application

Suitable for use with:

  • Underfloor heating.
  • Towel rail/ bars (boost switch and/ or dual controls only).
  • Mirror heaters (dual controls only).

Description

Range of controls compatible with ThermoSphere heating products. Floor sensors included for all products other than boost switch.

Features and benefits:

- Boost switch:

Automatically turns off towel bars or rails after one, two, three or four hours.

- Dual control:

  • Allows control of underfloor heating and an extra appliance e.g. electric towel rail or mirror heater.
  • Seven-day, Six-event heating schedule.
  • Touch display.
  • Ambient and floor temperature sensing.
  • Energy saving adaptive start.
  • Automatic open window sensor.

- Single control (manual):

  • Simple on/off switch.
  • Temperature control.
  • Easy to use touch display.
  • Ambient and floor temperature sensing.

- Single control (programmable):

  • Seven-day, six-event heating schedule.
  • Touch display.
  • Ambient and floor temperature sensing.
  • Energy saving adaptive start.
  • Automatic open window sensor.
  • Wireless or wired options.

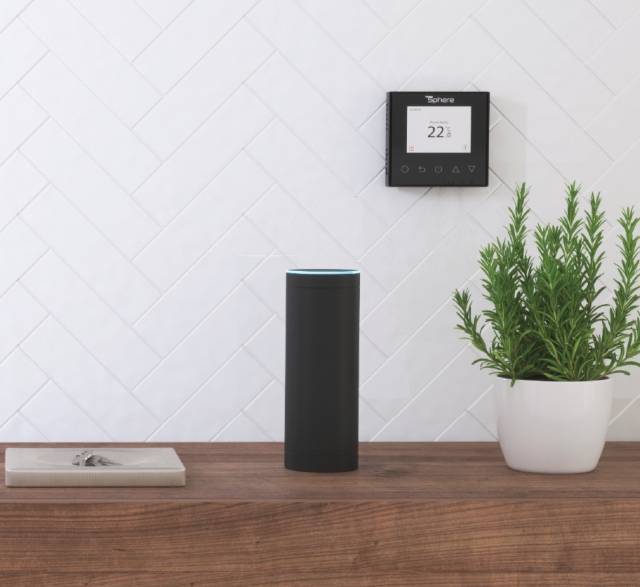

- SmartHome:

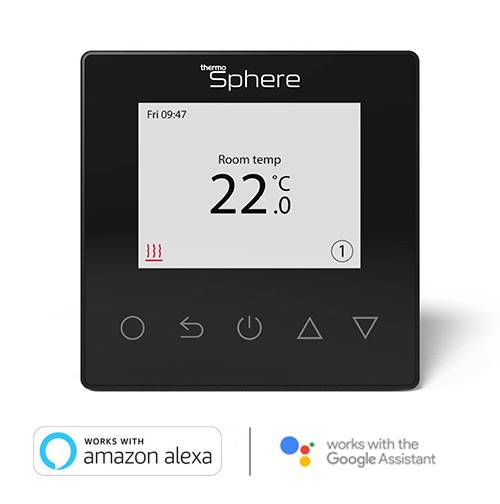

  • Optional voice control operation with Amazon Alexa via the SmartHome hub.
  • Seven-day programmable underfloor heating schedule.
  • Energy usage feature.
  • Can be used as a standalone electric underfloor heating thermostat.
  • Remote control option via the ThermoSphere app (iOS and Android).

- Wireless hub:

  • Connect up to 32 thermostats per hub.
  • Control two hubs per app
  • 20 m open field range (RF connection).
  • Three-year warranty.

Applications:

Suitable for use with:

  • Underfloor heating.
  • Towel rail/ bars (boost switch and/ or dual controls only).
  • Mirror heaters (dual controls only).

General information
Color

Black

White

Features

EcoDesign Lot 20 Compliant programmable thermostat for electric underfloor heating

Finish

Matte casing with glass fascia

Shape

Square

Size

85 x 85 x 46 mm

WarrantyDescription

3 years

Uniclass 2015
Time switches (Pr_75_51_17_89)Primary
Specification data - Time switches
Product Reference

ThermoSphere Heating Controls

Control -
ControlType

Boost switch

For use with heated towel bars and rails only.

Dual control, wired

Dual control, wireless

Single control, manual, wired

Single control, programmable, wired

Single control, programmable, wireless

SmartHome hub and controls

Colour

Black

Not SmartHome hub.

White

Quantity

Insert requirement (controls only for SmartHome).

Wireless hub

Required

Wireless controls only.

Not required

Product Options

Controls:

Consult manufacturer's literature for full technical characteristics.

- Type:

Dual control (both):

  • Size: 129 x 88 x 48 mm (31 mm recessed in wall).
  • IP rating: IP30.
  • Maximum combined load: 20 A.

Single control (all):

  • Size: 85 x 85 x 46 mm (31 mm recessed in wall).
  • IP rating: IP30.
  • Maximum load: 16 A.

SmartHome hub and controls:

  • Size: Control: 87 x 87 x 14 mm; Hub: 95 x 95 x 20 mm.
  • IP rating: IP21.
  • Maximum load (controls only): 16 A.
  • Colour (hub only): White.

Wireless hub:

  • Smartphone app available.
  • Controls up to 32 wireless thermostats per hub.
  • Size: 98 x 78 x 28 mm.
  • IP rating: IP30.
  • Colour: White.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
