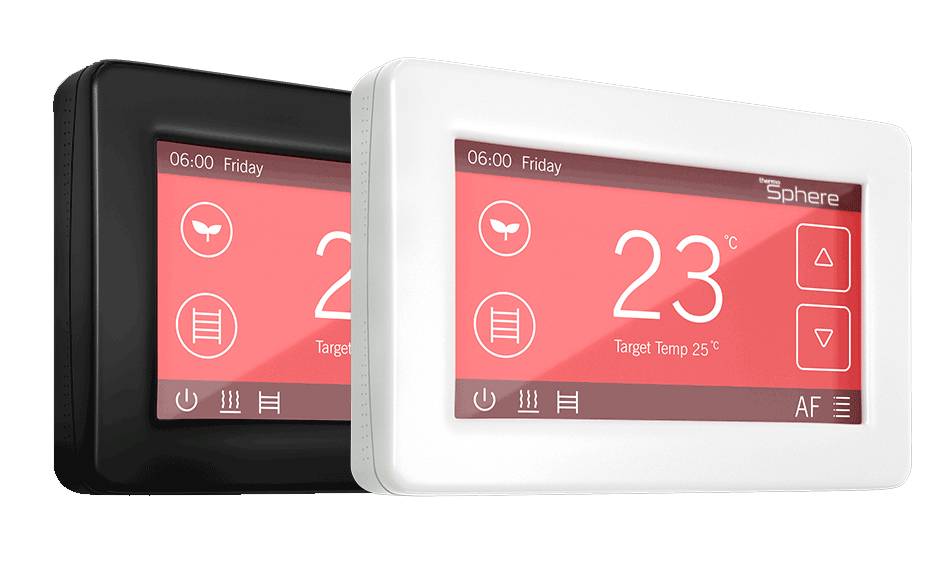

ThermoSphere Dual Control Thermostat

Application

Suitable for use with:

  • Underfloor heating.
  • Towel rail/ bars (boost switch and/ or dual controls only).
  • Mirror heaters (dual controls only).

Description

Range of controls compatible with ThermoSphere heating products. Floor sensors included for all products other than boost switch.

Features and benefits:

- Boost switch:

Automatically turns off towel bars or rails after one, two, three or four hours.

- Dual control:

  • Allows control of underfloor heating and an extra appliance e.g. electric towel rail or mirror heater.
  • Seven-day, Six-event heating schedule.
  • Touch display.
  • Ambient and floor temperature sensing.
  • Energy saving adaptive start.
  • Automatic open window sensor.

- Single control (manual):

  • Simple on/off switch.
  • Temperature control.
  • Easy to use touch display.
  • Ambient and floor temperature sensing.

- Single control (programmable):

  • Seven-day, six-event heating schedule.
  • Touch display.
  • Ambient and floor temperature sensing.
  • Energy saving adaptive start.
  • Automatic open window sensor.
  • Wireless or wired options.

- SmartHome:

  • Optional voice control operation with Amazon Alexa via the SmartHome hub.
  • Seven-day programmable underfloor heating schedule.
  • Energy usage feature.
  • Can be used as a standalone electric underfloor heating thermostat.
  • Remote control option via the ThermoSphere app (iOS and Android).

- Wireless hub:

  • Connect up to 32 thermostats per hub.
  • Control two hubs per app
  • 20 m open field range (RF connection).
  • Three-year warranty.

Applications:

Suitable for use with:

  • Underfloor heating.
  • Towel rail/ bars (boost switch and/ or dual controls only).
  • Mirror heaters (dual controls only).

General information

Color

White

Black

Features

Control from your smart phone, Ambient & floor temperature sensing mode

Finish

Gloss white

Gloss black

Material

ABS

Shape

Rectangle

Size

129 x 48 x 88 mm

WarrantyDescription

3 years

Uniclass 2015

Pr_75_51_17_89 Time switchesPrimary

CAWS

T90/480 Programmers

Specification data - Time switches Enhanced data

Product Options

Controls:

Consult manufacturer's literature for full technical characteristics.

- Type:

Dual control (both):

  • Size: 129 x 88 x 48 mm (31 mm recessed in wall).
  • IP rating: IP30.
  • Maximum combined load: 20 A.

Single control (all):

  • Size: 85 x 85 x 46 mm (31 mm recessed in wall).
  • IP rating: IP30.
  • Maximum load: 16 A.

SmartHome hub and controls:

  • Size: Control: 87 x 87 x 14 mm; Hub: 95 x 95 x 20 mm.
  • IP rating: IP21.
  • Maximum load (controls only): 16 A.
  • Colour (hub only): White.

Wireless hub:

  • Smartphone app available.
  • Controls up to 32 wireless thermostats per hub.
  • Size: 98 x 78 x 28 mm.
  • IP rating: IP30.
  • Colour: White.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
