Application

Suitable for commercial, public and domestic buildings.

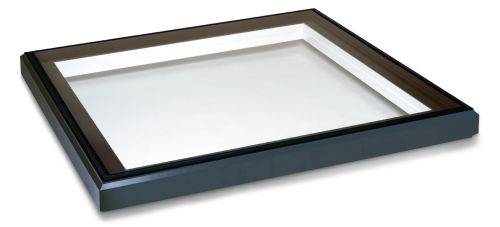

Description

Rooflight glazing system with a thermally broken box-bar with continuous carrier rail, pressure plate, gasketry and decorative external cover.


Features and benefits:

  • Thermally efficient, with double and triple solar control options available.
  • Can provide long spans, which allows more daylight into rooms.
  • Designed to conform to the requirements of BS 5516: 2004, Parts 1–2 for the design and installation of sloping and vertical patent glazing.
  • Fixing to steel is with stainless steel self-drilling screws (top and bottom), or wood screws when fixing to timber.
  • Alternatively, single hole fixing shoes are available if required (consult manufacturer for details).
  • Other infills may be incorporated; suitable to receive 24–46 mm double or triple glazing and polycarbonates.
  • Photo voltaics, composite panels, glass reinforced plastic (GRP) and solar thermal panels can also be incorporated on request (consult manufacturer for details).

General information

Color

Silver

Clear

Infill.

Other

Polyester powder coated frame to any RAL or BS colour.

Finish

Glazed

Mill

Powder-coated

Material

Aluminium

Stainless steel

Steel

PVC

Lead

Show more

Shape

Rectangle

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

H10/115 Patent glazing

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Form

Flat.

Size

Consult manufacturer and insert requirements.

Product performance

-

Fire performance

-

Fire resistance

External fire exposure: Class AA.

To BS 476.

Reaction to fire

Surface spread of flame: Class 1.

Frame

-

Material

Extruded aluminium alloy, 6063-T6.

Finish

-

Coating

Mill finish.

Standard.

Polyester powder-coated.

Colour

RAL.

Polyester powder coated: Insert RAL or BS colour code.

Glazing or infill

-

Type

  • Other infills may be incorporated; suitable to receive 24–46 mm double or triple glazing and polycarbonates.
  • Photo voltaics, composite panels, glass reinforced plastic (GRP) and solar thermal panels can also be incorporated on request (consult manufacturer for details).

Double glazed, heat soak test (HST) toughened clear glass (laminated softcoat glass).

Thermal transmittance (U-value): 1.2 W/m²·K.

Double glazed, heat soak test (HST) toughened neutral solar control glass 70/30 (laminated clear glass).

Thermal transmittance (U-value): 1.0 W/m²·K.

Triple glazed, heat soak test (HST) toughened neutral solar control glass 70/30 (laminated softcoat, clear glass).

Thermal transmittance (U-value): 0.6 W/m²·K.

Construction

Double skin.

Triple skin.

Colour

Clear.

Operation

-

Type

Manual.

Design

Insert drawing/ reference.

Box bar

Consult manufacturer for further details.

Box bar 2.

Box bar 3.

Box bar 4.

Combustibility

Non-combustible.

Non-fragility rating

Required.

  • Tested to CWCT TN66-67, and classified Class 2 non-fragile.
  • May be compliant with CWCT TN92 when used with recommended glass specifications.

Not required.

Flashings

Aluminium.

Lead.

PitchAngle

5° (minimum).

Air permeability

0.71 m³/h.m² at 600 Pa, Class 4.

To BS EN 12207: 2016.

Weather performance

Weather-tight to Class E1650.

To BS EN 12208.

Capping

Extruded aluminium alloy, 6063-T6.

Fittings

Extruded aluminium alloy, 6063-T6.

Fasteners

Stainless steel, grade A2.

Pressure plate

Co-extruded.

PVC.

Thermal break

Co-extruded thermal barrier.

PVC.

Gaskets

PVC.
