Description

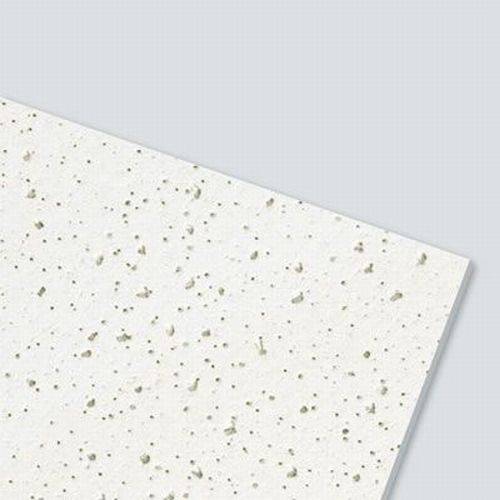

Ceiling tile with fine, non-directional fissures and micro perforations, creating a subtle elegant appearance.

For use with Knauf AMF suspended ceiling systems:

  • System A: Concealed, demountable ceiling/ non demountable option.
  • System C: Exposed, Ventatec grid system, demountable ceiling.
  • System F: Free span, demountable ceiling.
  • System I: Bandraster, demountable ceiling.

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims.

General information
Specification data
Product Reference

Thermatex Mercure

Type

300 x 1600 x 19 mm thick, AW/SK shiplap/ square edge

Semi concealed grid.

300 x 1800 x 19 mm thick, AW/SK shiplap/ square edge

Semi concealed grid.

300 x 2000 x 19 mm thick, AW/SK shiplap/ square edge

Semi concealed grid.

300 x 2500 x 19 mm thick, AW/SK shiplap/ square edge

Semi concealed grid.

600 x 600 x 19 mm thick, AW/GN shiplap/ concealed edge

Concealed grid.

600 x 600 x 15 mm thick, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 x 40 mm thick, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 x 15 mm thick, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 600 x 15 mm thick, VT24 rebated edge

24 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick, VT24 rebated edge

24 mm exposed Ventatec grid system.

Standard product features

Fire safety:

BS EN 13501-1: Class A2-s1, d0.

Fire protection to BS 476-20 to -23 (maximum):

60 minutes.

Relative humidity (maximum):

95%.

Sound absorption:

  • Rating to BS EN ISO 354: aw 0.60.
  • Sound Class: C.
  • Noise reduction coefficient (NRC) to ASTM C 423-02a: 0.55.

Sound attenuation:

Rating according to BS EN 20140-9 Dncw: 34 dB.

Colour:

White, similar to RAL 9010.

Weight:

  • 15 mm thick tiles: 4.5 kg/m².
  • 19 mm thick tiles: 5.7 kg/m².
  • 40 mm thick tiles: 13.2 kg/m².

Product Options

Type:

Other sizes and edge details are available for special order.
