product no longer available -

Description

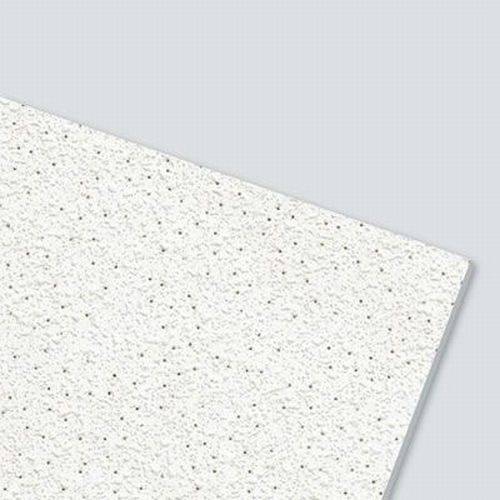

Ceiling tile with a modern smooth textured finish with micro perforations, offering acoustic absorption; for use with Knauf AMF suspended ceiling system C.

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims.

General information
Size

600 x 600 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 1200 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 mm, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 1200 mm, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 600 mm, VT24 rebated edge

For 24 mm exposed Ventatec grid system.

600 x 1200 mm, VT24 rebated edge

For 24 mm exposed Ventatec grid system.

Uniclass 2015 Mineral fibre infill units (Pr_35_93_13_53)
Specification data
Product Reference

Thermatex Laguna Microperforated

Size

600 x 600 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 1200 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 mm, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 1200 mm, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 600 mm, VT24 rebated edge

For 24 mm exposed Ventatec grid system.

600 x 1200 mm, VT24 rebated edge

For 24 mm exposed Ventatec grid system.

Standard product features

Fire safety:

BS EN 13501-1: Class A2-s1, d0.

Fire protection to BS 476-20 to -23 (maximum):

60 minutes.

Relative humidity (maximum):

90%.

Sound absorption:

  • Rating to BS EN ISO 354: aw 0.60.
  • Sound absorption: Class C.
  • Noise reduction coefficient (NRC) to ASTM C 423-02a: 0.60.

Sound attenuation:

Rating according to BS EN 20140-9 Dncw: 34 dB.

Thickness:

15 mm.

Weight:

4.5 kg/m².

Colour:

White, similar to RAL 9010.

Product Options

Type:

Other sizes and edge details are available for special order.
