THERM+ A-I - Aluminium Glass Roof
THERM+ A-I - Aluminium Glass Roof
Glass roof constructions in aluminium, steel and timber.
Application
For glass roof applications up to 2° inclination.
THERM+ is also suitable for polygonal assembly up to 45° and conservatories.
Description

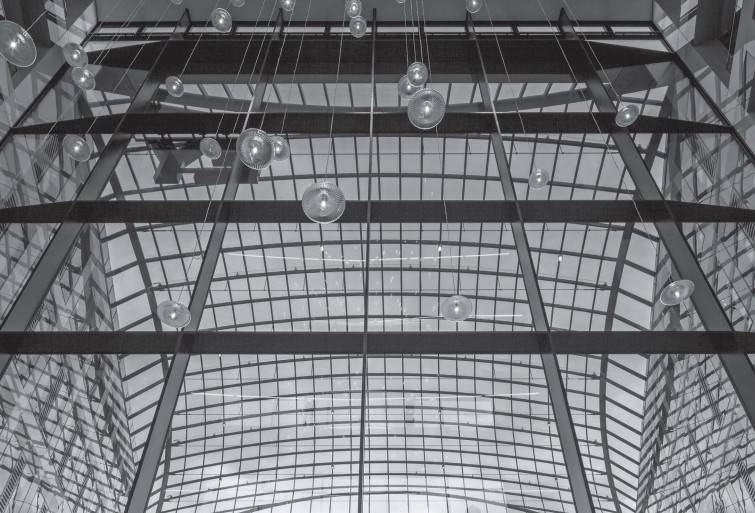

Glass roof constructions designed to create bright, light-flooded rooms with all-spanning glass roofs.
Available in four variants and a range of system types. A range of profiles are available dependent on project requirements.
Features and benefits:
- The system structure is identical to the THERM+ standard systems.

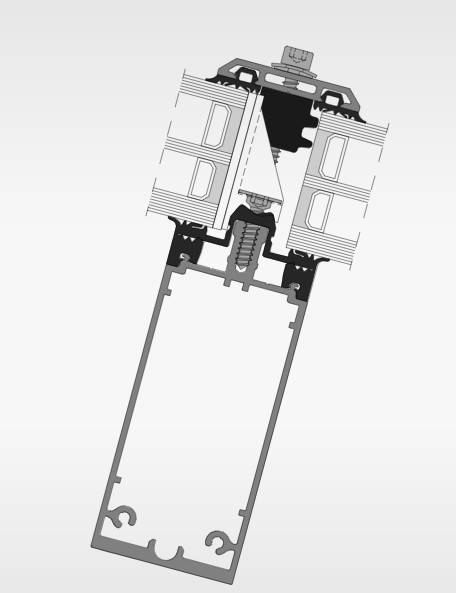

- The low pitch construction is made feasible with bevelled pressure profiles, flat pressure profiles, silicone joints or any combination of these.
- Outlets at the end of the pressure profiles provide efficient drainage and avoid stagnant water.
- Natural and smoke ventilation can be achieved by inserting the aesthetically pleasing WING 105 DI and FRAME+ 100/120 RI opening roof-lights which have also been tested down to 2° from horizontal.
General information
Color | Other |
Finish | Other |
Material | Timber Steel Glass Aluminium |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | 50 mm 56 mm 76 mm 96 mm |
Height | Bespoke |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
SKU Code | A-I, S-I, FS-I, H-I |
Specification data - Rooflight systems
Classification data | |
System performance | To BS EN 13830. |
Rooflight | Framed rooflight, aluminium. Guidance for specification option:
|
Installation fasteners | Screw connections. |
Trim | Cover profile. Guidance for specification option: Consult manufacturer's literature for details. |
Filler | Manufacturer's standard sealing system. Guidance for specification option: May differ dependent on project requirements. Consult manufacturer for details. |
Hardware | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Operation | Manufacturer's standard. |
System accessories | Not required. Roof ventilation set. Guidance for specification option:
|
Design | Manufacturer guidanceConsult manufacturer for details and insert requirements. Use this field to specify overall size/ design, plus profile requirements. |
Depth | 50 mm. 56 mm. |
System types | Manufacturer's standard. Passive House. Guidance for specification option: The standard THERM+ system can easily be upgraded to passive house certified standard with minimal additional components. Passive house projects can therefore be fitted with energy saving glazing in a generous, cost effective way, independent of their supporting projects. Structural SG2. Guidance for specification option: The THERM+ Structural Glazing SG2 curtain wall systems feature the most intricate glazing technique. A narrow silicone joint is the only visible line between the insulation glass panes. Retention of the internal pane is enabled easily, quickly and securely with the use of SG glazing toggles. By utilising the SG insulating block, curtain walls achieve outstanding thermal insulation values. Burglar resistant. Guidance for specification option: The THERM+ basic system can be upgraded with minor additions to the burglary-resistant façade in resistance classes RC2 and RC3. For maximum freedom of design, all pressure profile variants with clipped cover strip or visible screw connection as well as flat compression strips (in RC2) can be used. |
Perimeter seals | Manufacturer's standard. Guidance for specification option: Gasket supplied based on system design and pressure profile specification. |
Wind resistance | Wind pressure up to 2.6 kN/m². Wind suction up to 2.7 kN/m². |
Air permeability | Class AE (2100). |
Watertightness | Up to class RE 2550. |
Sustainability data
Material | Timber Steel Glass Aluminium |
