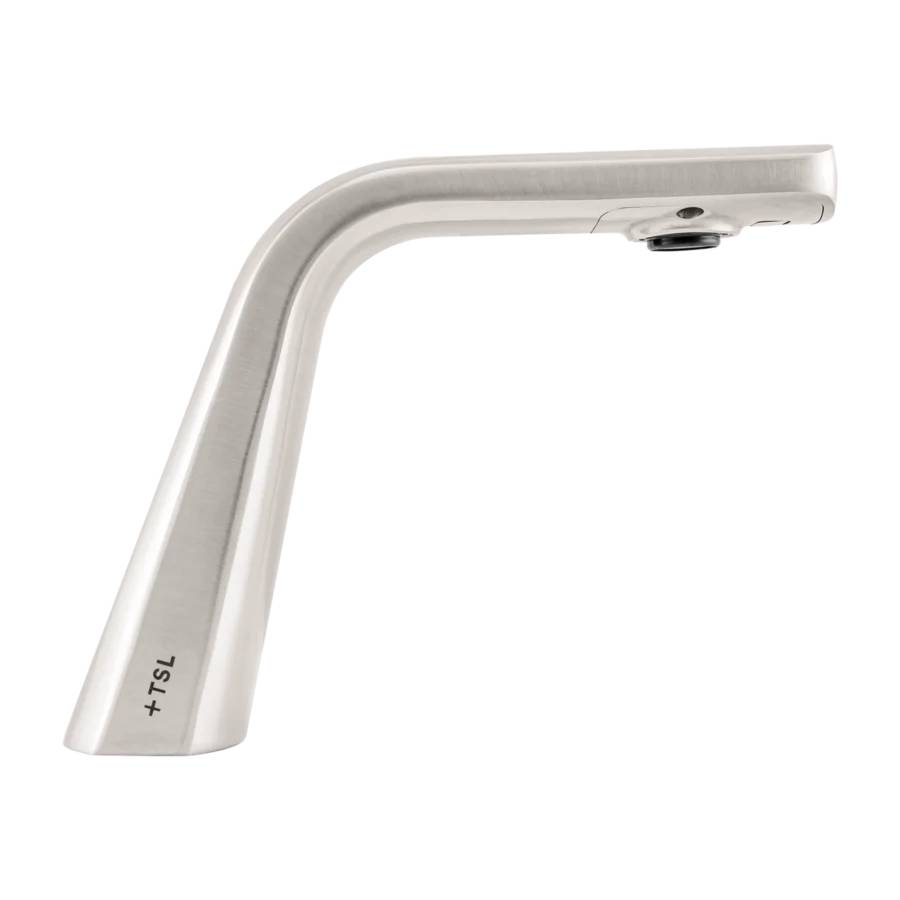

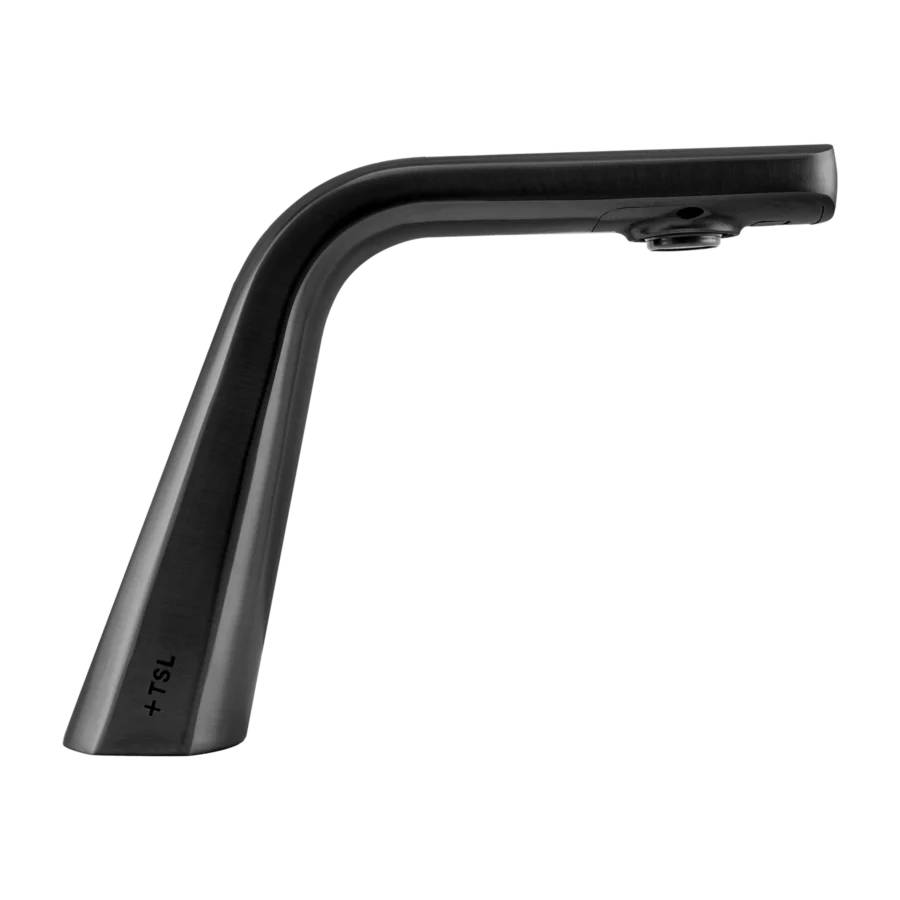

The Ribbon Sensor Tap 2.0 - Deck-Mounted Tap

Verified by manufacturer 2 months ago

TSL.R021.CS

The Splash Lab Limited Variant:

Automatic deck-mounted tap.

Jump to:
BOS
+44 (0)161 482 7000 Website

Application

Washrooms / Restrooms

Not to be installed above highly polished basins, or waste outlets.

Description

Automatic deck-mounted tap. Robust body construction for all types of projects.


Features and benefits:

  • Choice of five finishes.
  • Integrated IR touch-free sensor.
  • Award winning design.
  • Two second comfort delay; automatic security cut-off at 60 seconds.
  • Mains power supply required.
  • Easy maintenance.
  • Part of the Ribbon Collection trio (other products available to specify separately).
  • CE/ UKCA marked; complies with ASME A112.18.1; CSA B125.1; NSF/ANSI/CAN 61; WRAS; RoHS.

General information

Color

Silver

Black

Copper

Gold

Guidance for specification option:

Brass.

Bronze

Finish

Satin

PVD

Chrome

Brushed

Coated

Material

Stainless steel

Guidance for specification option:

Grade 304.

Shape

Other

Length

236.5 mm

Width

28.6 mm

Guidance for specification option:

Nozzle diameter only; rose is 50 mm diameter.

Height

145 mm

Warranty description

One year

Guidance for specification option:

Parts and labour.

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin taps

Approvals

Water Regulations Approval Scheme (WRAS)-approved.

Form

Deck-mounted sensor tap.

Guidance for specification option:

  • Visible length: 236.5 mm.
  • Spout diameter: 28.6 mm.
  • Rose diameter: 50 mm.
  • Countertop cut-out diameter required: 30 mm.
  • Maximum countertop thickness: 35 mm.
  • Weight: 1.2 kg.
  • Sensor range: 120 mm ±20 mm, adjustable (50–150 mm).

Materials

-

Body

Grade 316 stainless steel.

Finish and colour

Satin stainless steel.

Flow rate (maximum)

1.9 L/minute (0.5 gpm).

Guidance for specification option:

Minimum operating pressure: 7–87 dynamic pressure.

Water supply temperature (maximum)

User-controlled.

Integral accessories

Anti-rotation collar; low-voltage push-fit connector to tap.

Power supply

Mains.

Guidance for specification option:

  • Input: 100–240 V a.c.; 50/60 Hz.
  • Output: 6 V d.c.; 0.5 A; 3 W maximum.

Manufacturer guidance

Hard wired connection to mains branch circuit, it is recommended that the sensors are installed on their own circuit. Solenoids and transformers must be accessible at all times for servicing.

Colour (Light reflectance value (LRV)

51.

Sustainability data

Contains Red List materials

No

Country of material origin

Taiwan

Country of product manufacture

Taiwan

Material

Stainless steel

Guidance for specification option:

Grade 304.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.5 kg CO₂ eq/unit

Self declared

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

4

IFC
-

3
