Application

  • Suitable for all nominally flat roof constructions and coverings, e.g. single ply PVC, fibreglass, lead, copper, zinc and other standing seams and asphaltic material.
  • Suitable for green/ sedum roofs.
  • Suitable for pitched roofs up to 45°.

Description

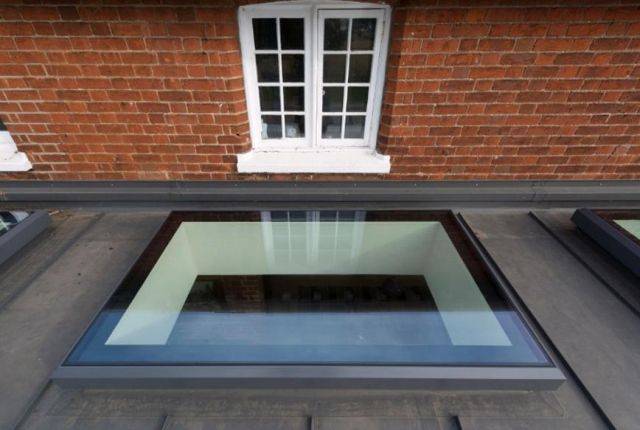

Fixed rooflight with fully thermally broken aluminium frame.

Features:

  • Suitable for marine/ coastal environments.
  • Stainless steel concealed fixings.
  • Tested in accordance with the CWCT Standard.

Applications:

  • Suitable for all nominally flat roof constructions and coverings, e.g. single ply PVC, fibreglass, lead, copper, zinc and other standing seams and asphaltic material.
  • Suitable for green/ sedum roofs.
  • Suitable for pitched roofs up to 45°.

General information
Color

Internal, Ral 9010 Mat; External, Ral 7015 Mat

Features

Fully Thermally Broken

Finish

Powder coated, adonized

Material

Grade 6063-T6 Extruded Aluminium

Shape

Square

Size

1000 x 1000 mm

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

VAGI Fixed Skylight

Glazing

Manufacturer's standard

Special order

Insert requirement.

Frame -
FrameMaterial

Aluminium

Standard.

Special order

Insert requirement.

Frame finish

Anodized

Polyester powder coated

Standard, 60 microns (minimum).

Colour

Manufacturer's standard

Special order

Insert RAL or BS colour requirement.

Upstand

Supplied by others

Required

Standard product features

Warranty:

  • Glazing and powder coating: Ten years.
  • Mechanical components: One year.

Product Options

Size:

Available 1000–2200 x 1000–2000 mm in stock sizes. Non-standard sizes and shapes are available on request. Any single pane size up to 6000 x 3000 mm.

Glazing:

  • Manufacturer's standard: 6 mm thick toughened outer, 20 mm thick warm edge spacer with 90% argon cavity and 6 mm thick toughened low-e inner. Glass centre pane U-value: 1.1 W/m²K.
  • Special order: Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain, Class 2 maintenance and decorative options are available, contact manufacturer for information.

Frame:

- Material:

Grade 6063-T6 extruded aluminium as standard. Different material specifications, stainless steel cladding, etc. are available, contact manufacturer for information.

- Colour (manufacturer's standard):

  • Internal: RAL 9010 matt.
  • External: RAL 7015 matt.

Seals:

  • Structural and weather seal: Low modulus silicone sealant.
  • EPDM: UV and water-resistant.

Upstand:

To suit an overall finished Upstand of 100 mm. Upstand by Vision AGI if required.

Air and water resistance:

1050 Pa.

Wind load resistance:

1.5 kN/m².

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2016 1 2.0
