Tessera Struktur 1 - Tufted carpet tile
Verified by manufacturer 12 days ago
EPD
Certificate type
Certificate of Conformity
Certificate type
Subtle, compact, flat structured microtuft carpet tile available in a palette of 18 colours.
Application
Suitable for heavy traffic areas of buildings such as corridors and reception areas.
Description
A compact, flat structured 50 x 50 cm carpet tile, manufactured from 100% solution dyed polyamide 6 for class 33 durability and colour fastness.
Features and benefits:
- 350 gsm pile weight, creating a durable authentic flatweave texture.
- 50 x 50 cm tile format laid quarter turn (monolithic installation is at the discretion of the user, but non-visible joins are not guaranteed).
- 65% recycled content by weight.
- Acoustic value 17 dB for reduced noise transmission.
- Meets requirements of EN 14041.
General information
Color | Black Blue Brown Green Grey |
Finish | Tufted |
Material | Polyamide Guidance for specification option: Modified bitumen; 100% polyamide 6. |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 5.1 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/15 Carpet tiling M50/130 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | Microtuft. |
Material | 100% polyamide 6. |
Classification | |
Standard | To EN 1307 and 14041. |
Level of use class | Class 33.Guidance for specification option: Heavy contract. |
Recycled content | 65.42%. |
Size | 500 x 500 mm. |
Colour and pattern | 3700 mane.3701 sten.3702 korn.3709 gul.3710 rosa.3711 mossa.3703 gra.3704 malm.3705 kaffe.3712 flamma.3713 Lila.3714 Gron.3706 svart.3707 jarn.3708 brun.3715 rost.3716 bla.3717 pafagel. |
Total thickness | 5.1 mm ±10%. Guidance for specification option: ± 10%. |
Total weight | 3765 g/m². Guidance for specification option: ± 10%. |
Castor chair use (to BS EN 985) | Minimum R-value: ≥ 2.4. |
Ska Rating | Struktur 1 meets Ska Rating criteria for M12 soft floor coverings in office, retail and higher education schemes. |
Impact sound reduction | 17 dB. |
Pile composition | 100% polyamide 6. |
Dye method | 100% solution dyed. |
Stitch density | 126 080 per m². |
Pile weight after shearing | 350 g/m² 10%. |
Adhesive | Not required. 542 Eurofix Tack Plus solvent free release system. IOBAC MagTabs® adhesive free installation system. |
Light fastness (to BS EN ISO 105 B02) | ≥ 6. |
Dimensional stability (to BS EN 986) | ≤ 0.2%. |
Reaction to fire (to EN 13501-1) | CfI-s1. |
Slip resistance (to EN 13893) | DS: ≥ 0.30. |
Pile height above backing | 1.00 mm ±0.5 mm. |
Primary backing | Polyester. |
Secondary backing | ProBac™ modified bitumen and polyester fleece. |
Body Voltage (to EN 1815) | Pass (<2 kV). |
Static dissipative (to BS ISO 10965) | <1 x 10^9 Ω. |
Edging | Not required. As per 740. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyamide Guidance for specification option: Modified bitumen; 100% polyamide 6. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 7.06 kg CO₂ eq/m² |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |
Third party certifications
Third party certifications
EPD

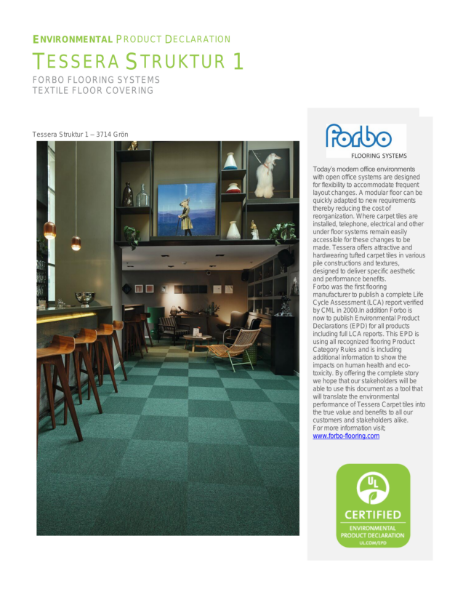

Tessera Struktur 1 Environmental Product Declaration
Certificate of Conformity
SA8000 Management System Certification Certificate
Literature
Forbo Tessera Struktur1 Brochure
Forbo Tessera LRV and DSDC Accreditation Overview
