Tessera Barcode - Tufted carpet tile
Verified by manufacturer 5 months ago
Certificate of Conformity
Certificate type

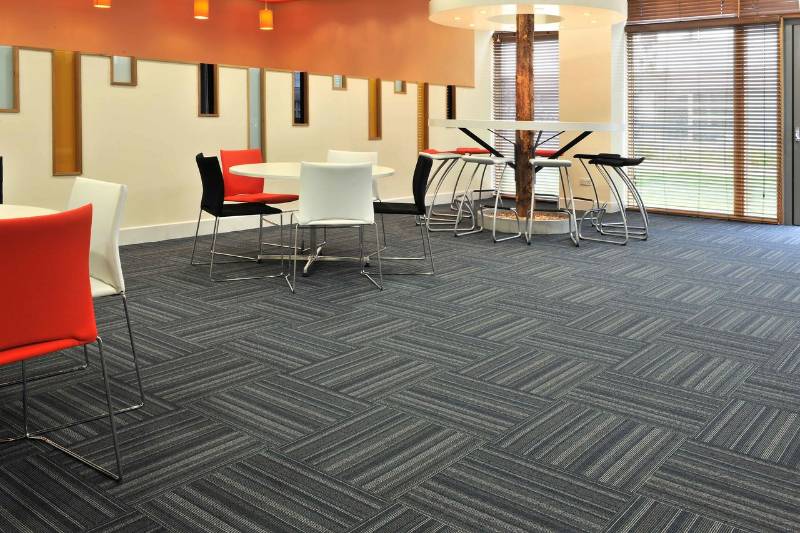

A collection of 18 tufted low-level loop pile carpet tiles featuring a design of contrasting linear bands to give a bold and confident look to any commercial environment.
Application
For internal use in all busy commercial and public sector locations.
Description
Low-level loop pile carpet tile, with bands of contrasting colours in varying widths.
Features and benefits:
- Investment in an extruder has reduced bitumen usage by 50%.
- Method of laying: brick, quarter-turn, quarter-brick or tessellated.
- Made with 100% renewable electricity.
- Solution-dyed yarns, carefully selected and blended to complement a wide range of interior design schemes.
- Also available with SOFTbac®. SOFTbac® is an additional backing layer which also acts as an underlay and offers increased sound and thermal insulation.
General information
Color | Blue Green Grey Orange Pink |
Finish | Tufted |
Material | Polyamide |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 6 mm |
Warranty description | Ten year Manufacturer guidanceStandard backing: 10 years; SOFTbac® backing: 15 years |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | Tufted low level loop pile. |
Material | 100% solution dyed Alto chroma polyamide, on a modified bitumen polyester primary and secondary backing. |
Classification | |
Standard | To BS EN 1307 and BS EN 14041. |
Level of use class | Class 33; Heavy Contract. |
Recycled content | 64.01%. |
Size | 500 x 500 mm.Guidance for specification option: Special order sizes also available. |
Colour and pattern | Not required.301 Pipe Line.302 Border Line.303 Punch Line.304 Main Line.305 Chorus Line.306 Chat Up Line.307 Colour Line.308 Sky Line.309 Party Line.310 Story Line.311 Double Yellow Line.312 Starting Line.313 Fishing Line.314 Time Line.315 Branch Line.316 Picket Line.317 Dotted Line.318 Goal Line. |
Total thickness | 6 mm ±10%. |
Pile composition | 100% Alto chroma polyamide. |
Dye method | 100% solution dyed. |
Stitch density | 169 420 per m² ±10%. |
Pile weight after shearing | 580 g/m² ±10%. |
Total weight | 3895 gsm ±10%. |
Castor chair use (to BS EN 985) | Minimum R value: ≥2.4. |
Dimensional stability (to BS EN 986) | ≤0.2%. |
Impact sound reduction | 22 dB. |
Ska Rating | Barcode meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes. |
Reaction to fire (to EN 13501-1) | BfI-s1. |
Slip resistance (to EN 13893) | DS: ≥0.30. |
Body Voltage (to EN 1815) | Pass (<2 kV). |
Adhesive | Not required. 542 Eurofix Tack Plus solvent free release system. IOBAC MagTabs® adhesive free installation system. |
Light fastness (to BS EN ISO 105 B02) | ≥5. |
Pile height above backing | 3 mm ±0.5 mm. |
Primary backing | Polyester. |
Secondary backing | Modified bitumen and polyester fleece- standard. SOFTbac®. |
Static dissipative (to BS ISO 10965) | <1 x 10^9 Ω. |
Edging | Not required. As per 740. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyamide |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16.9 kg CO₂ eq/m² Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 64.01 % |
