Tessellate Acoustic Wall Tiles
Application

For use in interior spaces to help with sound absorption.

Description

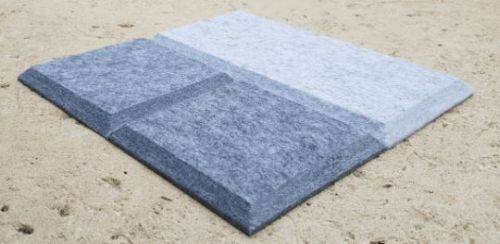

Modular acoustic wall tiles manufactured from polyethylene terephthalate (PET).

Features and benefits:

  • Available in five standard geometric shapes and two thicknesses which can be merged together in any combination.
  • Chamfered edges help to provide depth, allowing for experimentation with designs and the creation of feature walls.
  • Lightweight and easy to fix.
  • Low VOC content.
  • Available in 34 colours, which can be mixed and matched to create unique finishes.

Applications:

For use in interior spaces to help with sound absorption.

General information
Uniclass 2015
Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Specification data - Sound attenuator infill units
Product Reference

Tessellate Acoustic Wall Tiles

Shape/ Size

Hexagon, 290 x 250 mm

Hexagon, 600 x 500 mm

Parallelogram, 580 x 290 mm

Parallelogram, 1160 x 580 mm

Rectangle, 580 x 290 mm

Rectangle, 1160 x 580 mm

Square, 290 x 290 mm

Square, 580 x 580 mm

Triangle, 290 x 290 mm

Triangle, 680 x 680 mm

Thickness

12 mm

24 mm

Colour

See 'Options' and insert requirements.

Standard product features

Composition:

100% PET.

Weight:

  • 12 mm thickness: 2800 g/m².
  • 24 mm thickness: 5000 g/m².

Noise reduction coefficient (NRC):

  • Direct fix (12 mm): 0.55.
  • Direct fix (24 mm): 0.75.

Fire rating (to BS 5422: 1990):

Class 0.

VOC emissions (to ASTM D5116):

-0.02 mg/m²/hr (after seven days).

Product Options

Type/ Size:

Custom shapes and sizes are also available; consult manufacturer for details.

Thickness:

Tolerance of ±2 mm. Consult manufacturer for details.

Colour:

  • Arizona (12 mm variants only).
  • Atlantic.
  • Azure.
  • Bark.
  • Brick.
  • California.
  • Caramel (12 mm variants only).
  • Claret (12 mm variants only).
  • Cloud.
  • Cobalt (12 mm variants only).
  • Cotton.
  • Forest (12 mm variants only).
  • Fuscia (12 mm variants only).
  • Graphite (12 mm variants only).
  • Latte.
  • Lime.
  • Marble.
  • Midnight (12 mm variants only).
  • Mocha (12 mm variants only).
  • Oak (12 mm variants only).
  • Oyster (12 mm variants only).
  • Pacific (12 mm variants only).
  • Poppy.
  • Regency (12 mm variants only).
  • Royal.
  • Sage.
  • Salmon (12 mm variants only).
  • Sandstone.
  • Slate.
  • Smoke.
  • Steel (12 mm variants only).
  • Stone.
  • Sunbeam (12 mm variants only).
  • Topaz.

Custom colours can be produced to match any RAL code - consult manufacturer for details.
