Application

Designed to co-ordinate with TerraPave natural aggregate flag, Plaza Flag and Block paving.

Description

Reconstituted granite kerbs, an alternative to natural granite stone kerbs.


Features and benefits:

  • Manufactured from specially selected natural premium aggregates, principally granite.
  • A textured surface finish on two adjoining faces as standard, texturing on additional faces is available if required.
  • Produced in a hydraulic press ensuring high strength and long-term durability.
  • Available in two colours and several profiles.

General information

Finish

Textured

Guidance for specification option:

Reconstituted granite aggregate kerb with a textured top and front face

Length

915 mm

910 mm

900 mm

480 mm

305 mm

Width

305 mm

205 mm

203 mm

125 mm

75 mm

Height

255 mm

150 mm

Uniclass

Pr_25_93_45_18 Concrete kerbsPrimary

CAWS

Q10/110 Proprietary precast concrete

Specification data - Concrete kerbs

Standard

Manufactured to BS EN 1340; installed to BS7533.

Manufacturer guidance

Standard:

Manufactured to BS EN 1340.

  • Durability: Through mix provides a durable and hard wearing kerb with ease of maintenance.
  • Granite content: Not less than 40% natural granite and quartz aggregate.
  • Bending strength: >3.5 MPa.
  • Slip/ skid resistance: Extremely Low (>75 USRV Textured).

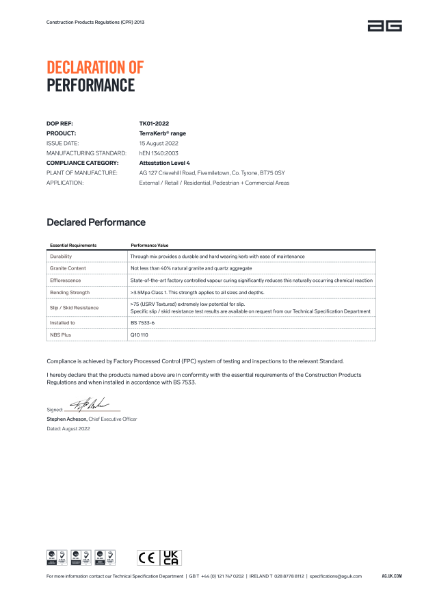

CE marking:

CE marked; Certificate 13/1-7-13, attestation Level 4 CPR (2011) Annex V.

Physical properties

-

Colour

Onyx (Silver).

Pearl (Slate).

Finish

Textured top and front face.

Dimensions

150 x 75 x 915 mm, bullnose.

255 x 125 x 305 mm, external corners.

255 x 125 x 305 mm, internal corners.

255 x 125 x 900 mm, square edge.

255 x 125 x 910 mm, radius Kerb.

255 x 155 x 915 mm, universal dropper kerb.

255 x 203 x 900 mm, square edge.

255 x 205 x 305 mm, external corners.

255 x 205 x 305 mm, internal corners.

255 x 305 x 480 mm, quadrant.

Sustainability data

Country of material origin

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

  • Carbon footprint: AG have a new state-of-the-art washing plant which enables AG to produce paving from 100% recycled waste aggregate.
  • BREEAM: ‘A’ Rating – in accordance with the BRE Green Guide to Specification (A+ Rating – when used with recycled sub-base).

Recyclability

100%

Manufacturer guidance

  • Energy use: 100% renewable energy.
  • Water used: 100% recycled water.
  • Recyclability: 100% of this product can be recycled.
  • Manufacturing location: Produced in the UK using responsibly sourced materials.
  • Waste wood and plastic: 100% recycled.
