Terrabase Classic - Resin Bound Decorative Porous

Verified by manufacturer 6 months ago

Addabound

Addagrip Terraco Ltd Variant:

Terrabase Classic resin bound porous surfacing.

Jump to:
BOS
+44 (0)1825 761333 Website

Application

Suitable for footpaths, landscaping schemes, canal towpaths, heritage sites, cycle paths and domestic driveways.

Description

A decorative, contemporary and permeable surface suitable for pedestrian footpaths and domestic driveways subject to occasional trafficking by light vehicles and parking areas.


Depending on requirements, it can be applied directly onto most suitable surfaces and gradients. For foot traffic areas only it can be installed directly onto the ground with no (or minimal) digging or edging required.


An ideal replacement or overlay system for self-binding surfaces such as Hoggin Replacing old blocks and paving, even onto grass, it is fully bound and will not be washed away, the product is porous, allowing water to permeate/ percolate through the surface and beyond when a suitable base build-up is configured for SuDS, and requires no planning permission in most circumstances The patented system incorporates:

  • Terrabase Geofabric – a high density, needle punched membrane base.
  • Terrabase Addagrid – offering strength and durability.
  • Terrabase Resin Bound – using BBA-approved 6 and 10 mm Addaset, Addabound or Terrabound Resin Bound systems. or Stoneboud Range


A range of Terrabase Classic finishes is available.


Features and benefits:

  • Requires no large machinery to install.
  • No asphalt sub-base or concrete requirement.
  • Minimum disruption.
  • The edging is part of the product.
  • Fast installation.
  • SuDs-compliant porous surface.
  • Provides a natural-looking seamless finish offering strength and durability.

General information

Color

Other

Guidance for specification option:

Available in all colours.

Finish

Trowelled

Material

Aggregate

Resin

Shape

Other

Guidance for specification option:

Available in any shape or contour.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_35_31_05_71 Resin-bound mixed aggregate surfacingsPrimary

CAWS

Q22/170 Proprietary vehicular paving

Q22/175 Proprietary pedestrian paving

Q22/185 Proprietary surface treatment to existing paving

Q22/365 Proprietary surface treatment

Q23/180 Bonded chippings for vehicular areas

Q23/190 Bonded chippings for pedestrian areas

Q23/220 Two coat proprietary fibre reinforced bonded chippings

Q23/221 Proprietary fibre reinforced bonded chippings overlay

Product range

External surfacing

Specification data - Resin-bound mixed aggregate surfacings

Aggregate

-

Type

Addabound.

Size (nominal)

6 mm.

10 mm.

Colour

Addabound.

Guidance for specification option:

Consult manufacturer and insert colour requirements.

Manufacturer guidance

Each surface finish Addaset, Addabound or Terrabound is available in a range of colours. Consult manufacturer for information.

Binder

-

Type

Addabound resin.

Colour

Clear.

Slip resistance – water wet (minimum)

PTV of 43.

Thickness

35 mm.

Guidance for specification option:

30–40mm using a 6 mm and 10 mm resin bound finish. Insert requirement.

45 mm.

Sustainability data

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.6 kg CO₂ eq/m²

Self declared

Recyclability

100% recycleable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

Terrabase Rustic Resin Bound Brochure

Terrabase Rustic Resin Bound Brochure

Case studies

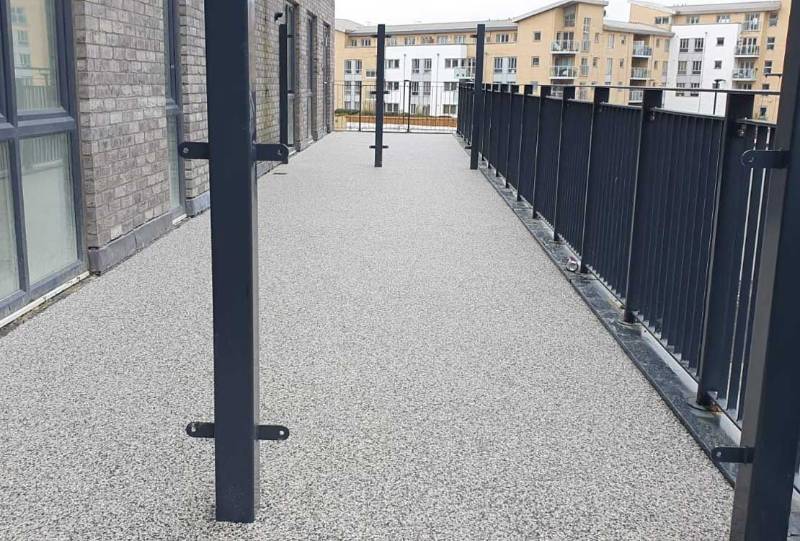

TERRABASE CLASSIC FOR PODIUM FLOORS AT RESIDENTIAL DEVELOPMENT IN ESSEX

TERRABASE CLASSIC FOR PODIUM FLOORS AT RESIDENTIAL DEVELOPMENT IN ESSEX
