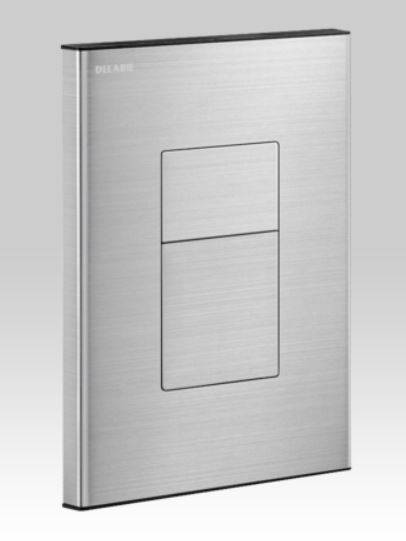

TEMPOFLUX 3 Control Plate for WCs - Flush Control Plate
Verified by manufacturer 10 months ago
Satin 3 L/6 L - 763000
Satin 3 L/6 L - 763000
Flush control plate for WCs.
Application
Order with frame system reference 564065DE or 564060DE, or with 763BOX recessed housing.
Description
Control plate and recessed time flow direct flush valve for WCs.
Features and benefits:
- Control plate and recessed time flow direct flush valve TEMPOFLUX 3, kit 2/2.
- Flush system without cistern: directly connected to pipework.
- Mechanical fixing of the control plates.
- TEMPOFLUX 3 F¾" valve compatible with sea water, rain water and grey water.
- Soft-touch operation.
- AB anti-blocking system: flush only takes place once the push-button is released.
- 3 L/6 L dual flush can be adjusted to 2 L/4 L.
- Rectangular design.
- Complies with European standard EN 12541 (Class II acoustic level).
- Base flow rate: 1 L/sec at 1 bar dynamic pressure.
- Suitable for rimless WC pans without flow rate regulation.
- Suitable for people with reduced mobility.
- 30-year warranty.
General information
Color | Black Silver |
Finish | Polished Satin |
Material | Metal Glass |
Shape | Rectangle Square |
Width | 162 mm 170 mm 205 mm |
Height | 170 mm 190 mm 210 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements S90/690 Flush control devices S90/690 Flush control devices |
Specification data - Flush control devices
Flush volume | Dual flush 3 L/6 L can be adjusted to 2 L/4 L. |
Materials | |
Body | Stainless steel. |
Finish and colour | Self-finish. |
Operation | Push-button. |
Dimensions | 210 x 162 mm. |
Accessories | Not required. Recessed housing 763BOX. |
