Tempo Cube Idealform Double-Ended 180 cm x 80 cm Bath No Handgrips No Tapholes
Verified by manufacturer 8 months ago

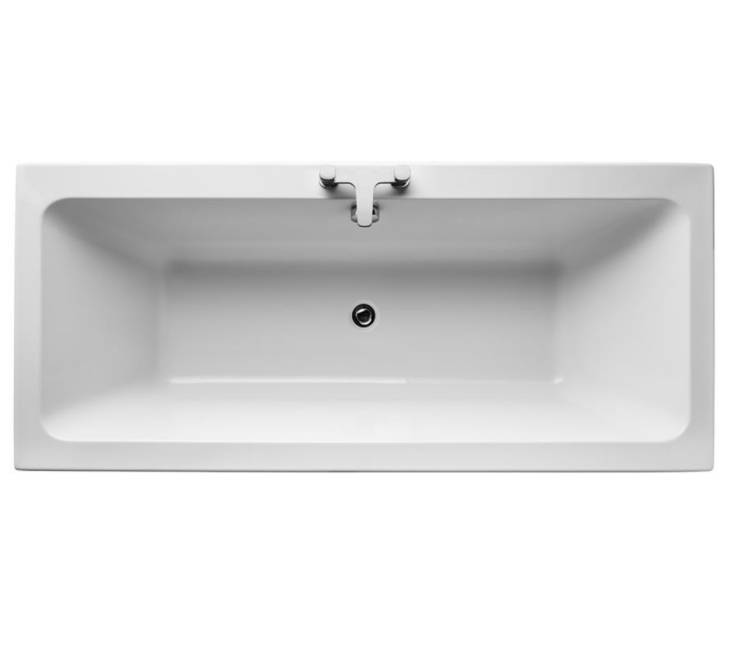

180 cm x 80 cm double-ended bath with no handgrips, no tapholes.
Application
Suitable for use in domestic and hotel applications.
Description
Double ended, Tempo with gently sloping interior offers ample space for two.
Features and benefits:
- Domestic and hotel use.
- Also available as 170 x 70 cm bath (specified separately).
- Supplied no tap hole for maximum flexibility.
- Also available as Idealform Plus+.
General information
Color | White Guidance for specification option: White (01) |
Finish | Acrylic |
Material | Plastic Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1795 mm |
Width | 795 mm |
Height | 510 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To EN 198:2008, EN 14516. |
Materials | Idealform. |
Colour | White (01). |
Size | 1795 x 795 x 510 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 248.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler.. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E2606.Guidance for specification option: Tempo Cube 180 cm bath front panel. Bath End Panel - E2607.Guidance for specification option: Tempo Cube 80 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - B0731.Guidance for specification option: Tempo 2 hole bath shower mixer. Brassware - B0732.Guidance for specification option: Tempo 1 hole bath filler. Brassware - B0733.Guidance for specification option: Tempo 1 hole bath shower mixer. Bath Waste - S8830.Guidance for specification option: Waste 1½" bath chain and overflow, plastic plug. |
Weight | 25.60 kg. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Egypt |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Bathroom Collections brochure
