Tempo Arc IFP+ - 170 x 80 cm Shower Bath
Verified by manufacturer 8 months ago

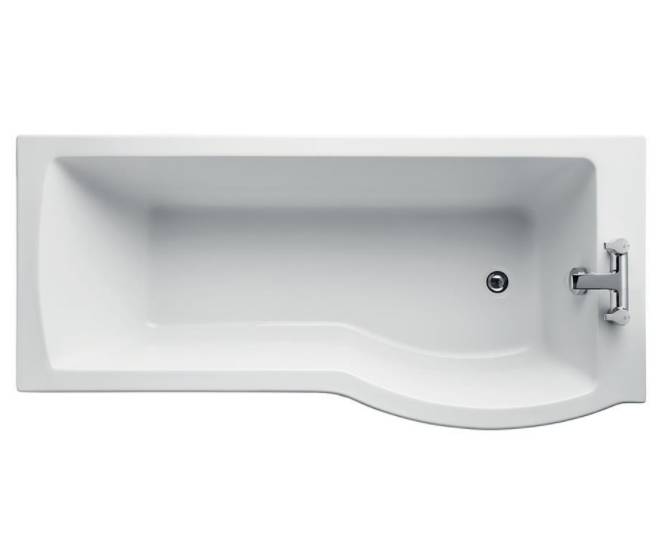

170 x 80 cm Idealform Plus+ shower bath. Right hand, no handgrips no tapholes.
Application
Suitable for domestic and hotel applications.
Description
The gently sloped ergonomic interior design matched to the extensive contemporary Tempo range, this spacious shower bath has a matching curved shower screen. Constructed from Idealform Plus+ for exceptional strength and rigidity.
Features and Benefits:
- Domestic and hotel use.
- Part of an extensive range.
- Left and right hand versions.
- Increased strength and rigidity.
- Also available as Idealform.
General information
Color | White |
Finish | Acrylic |
Material | Plastic Guidance for specification option: Idealform Plus+. |
Shape | Rectangle |
Length | 1695 mm |
Width | 795 mm |
Height | 510 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Shower bath P-Shaped. |
Standards | To BS EN 14516. |
Materials | Idealform Plus+. |
Colour | White. |
Size | 1695 x 795 x 510 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 195.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E2569.Guidance for specification option: Tempo Arc shower bath front panel. Bath Screen - E2571.Guidance for specification option: Tempo Arc shower bath screen, clear glass and bright silver finish. Bath End Panel - E3169.Guidance for specification option: Unilux 70 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - B0731.Guidance for specification option: Tempo 2 hole bath shower mixer. Bath Waste - S8830.Guidance for specification option: Waste 1½" bath chain and overflow, plastic plug. |
Weight | 42.00 kg. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Egypt |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Bathroom Collections brochure
