Telescopic Sliding Pocket Door System

Verified by manufacturer 5 months ago

Single

Eclisse UK Variant:

Single or double top-hung telescopic sliding pocket door system complete with full timber lining kit.

Jump to:
BOS
+44 (0)333 5770828 Website

Application

Internal sliding pocket doorset for residential applications.

Description

Single or double top-hung telescopic sliding pocket door system complete with full timber lining kit.


Features and benefits:

  • Allows one or two pairs of parallel door panels to go into the same wall giving the widest opening and light for the shortest wall space.
  • A synchronized system is also available which allows the doors to slide into the frame smoothly and simultaneously.
  • The door post, pocket and track assemble together and are inserted into the stud work as a complete unit which helps to ensure the door will run true and in line.
  • Door slides into the pocket in the wall.
  • Easy and quick assembly and installation.
  • Wide range of sizes to suit standard UK door sizes. Bespoke sizes available.
  • Suitable for use with 35 or 44 mm-thick doors, up to 100 kg in weight.
  • Doors, plasterboard and final architrave not included.
  • Complete with full wooden jamb kit for a professional finish.
  • Maintenance-free track and runners.
  • Full adjustable front and rear door stops.

General information

Color

Other

Finish

Unfinished

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Guidance for specification option:

On the complete Eclisse steel pocket system.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

L20/525 Sliding pocket doors

P21/350 Door track and running gear

P21/10 Door track and running gear

Specification data - Sliding door and partition sets

Performance

Internal.

Arrangement

One way telescopic.

Track system

Manufacturer's standard.

Guidance for specification option:

  • Maintenance-free track and runners.
  • Runners are tested to 100 000 cycles.

Door leaves

-

Construction

Doors specified separately.

Manufacturer guidance

Suitable for 35 or 44 mm thick doors.

Operation

Manual.

Hardware

Not required.

OSO8 Polished brass simple flush pull.

OSC4 Antique brass simple flush pull.

OSC2 Polished chrome simple flush pull.

OSC1 Satin chrome simple flush pull.

OSO3 Polished brass bathroom lock.

OSA Antique brass bathroom lock.

OSO1 Polished chrome bathroom lock.

OSS Satin chrome bathroom lock.

Accessories

Synchronization kit.

Execution

Install frame at finished floor level. Consult manufacturer for detailed installation instructions and details of the inbuilt 8 mm height tolerance.

Opening size

1140 x 2030 mm.

Guidance for specification option:

Door panels sizes: 626 x 2040 mm.

Overall size: 1859 x 2120 mm.

1340 x 2030 mm.

Guidance for specification option:

Door panels sizes: 726 x 2040 mm.

Overall size: 2159 x 2120 mm.

1540 x 2030 mm.

Guidance for specification option:

Door panels sizes: 826 x 2040 mm.

Overall size: 2459 x 2120 mm.

1740 x 2030 mm.

Guidance for specification option:

Door panels sizes: 926 x 2040 mm.

Overall size: 2759 x 2120 mm.

1940 x 2030 mm.

Guidance for specification option:

Door panels sizes: 1026 x 2040 mm.

Overall size: 3059 x 2120 mm.

Show more

Finished wall thickness

180 mm.

Wall jamb

Timber lining kit included.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium: 56%.

Steel: 20%.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Eclisse Sliding Pocket Door Systems - Future Of Doors

Eclisse Sliding Pocket Door Systems - Future Of Doors

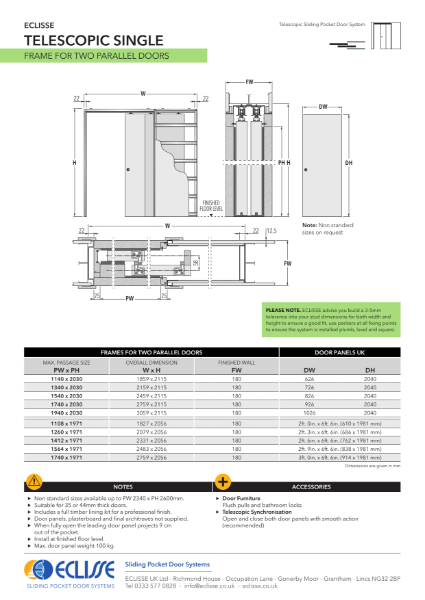

Telescopic SINGLE  Pocket Door System

Telescopic SINGLE Pocket Door System

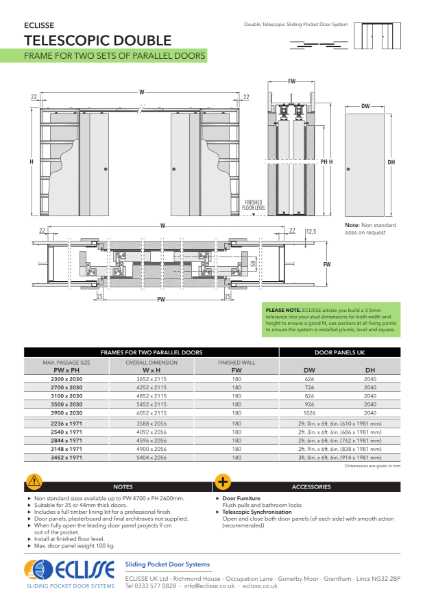

Telescopic DOUBLE Pocket Door System
