Description

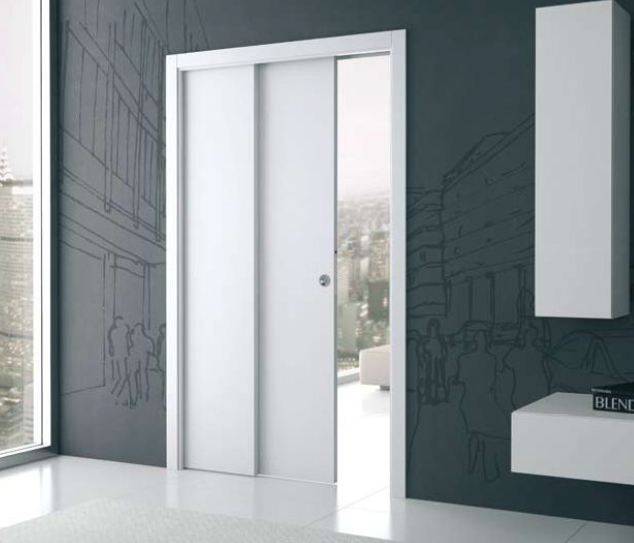

A telescopic sliding door system allowing two or four door panels to go into the same wall giving the widest opening and light for the shortest wall space. A synchronized system is also available which allows the doors to slide into the frame smoothly and simultaneously. The telescopic sliding pocket door system provides flexible space and is an ideal choice for opening up or closing off an open plan space.

Features:

  • The door post, pocket and track assemble together and are inserted into the stud work as a complete unit which helps to ensure the door will run true and in line.
  • Door slides into the pocket in the wall.
  • Easy and quick assembly and installation.
  • Wide range of sizes to suit standard UK door sizes. Bespoke sizes available.
  • Door panels up to 100 kg.
  • Suitable for use with 35 or 44 mm thick doors.
  • Doors, plasterboard and final architrave not included.

Advantages:

  • Complete with full wooden jamb kit for a professional finish.
  • Maintenance-free track and runners.
  • Full adjustable front and rear doorstop.

General information
Size

See Options below and insert requirements.

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
Specification data - Sliding door and partition sets
Product Reference

Telescopic Sliding Pocket Door System Single

Telescopic Sliding Pocket Door System Double

Size

See Options below and insert requirements.

Door furniture

OSO8

Polished brass simple flush pull.

OSC4

Antique brass simple flush pull.

OSC2

Polished chrome simple flush pull.

OSC1

Satin chrome simple flush pull.

OSO3

Polished brass bathroom lock.

OSA

Antique brass bathroom lock.

OSO1

Polished chrome bathroom lock.

OSS

Satin chrome bathroom lock.

Accessories

Not required

Synchronization

Standard product features

Finished wall thickness:

180 mm.

Product Options

Size:

The following frame sizes (in mm) are available:

– Telescopic Single:

  • 1821 x 2056: To suit 610 x 1981 mm door. Clearance: 1108 x 1971 mm.
  • 2073 x 2056: To suit 686 x 1981 mm door. Clearance: 1260 x 1971 mm.
  • 2325 x 2056: To suit 762 x 1981 mm door. Clearance: 1412 x 1971 mm.
  • 2477 x 2056: To suit 838 x 1981 mm door. Clearance: 1564 x 1971 mm.
  • 2753 x 2056: To suit 914 x 1981 mm door. Clearance: 1740 x 1971 mm.
  • 1853 x 2115: To suit 626 x 2040 mm door. Clearance: 1140 x 2030 mm.
  • 2153 x 2115: To suit 726 x 2040 mm door. Clearance: 1340 x 2030 mm.
  • 2453 x 2115: To suit 826 x 2040 mm door. Clearance: 1540 x 2030 mm.
  • 2753 x 2115: To suit 926 x 2040 mm door. Clearance: 1740 x 2030 mm.
  • 3053 x 2115: To suit 1026 x 2040 mm door. Clearance: 1940 x 2030 mm.

– Telescopic Double:

  • 3850 x 2056: To suit double 610 x 1981 mm doors. Clearance: 2236 x 1971 mm.
  • 4084 x 2056: To suit double 686 x 1981 mm doors. Clearance: 2540 x 1971 mm.
  • 4588 x 2056: To suit double 762 x 1981 mm doors. Clearance: 2844 x 1971 mm.
  • 4892 x 2056: To suit double 838 x 1981 mm doors. Clearance: 3148 x 1971 mm.
  • 5396 x 2056: To suit double 914 x 1981 mm doors. Clearance: 3452 x 1971 mm.
  • 3644 x 2115: To suit double 626 x 2040 mm doors. Clearance: 2300 x 2030 mm.
  • 4244 x 2115: To suit double 726 x 2040 mm doors. Clearance: 2700 x 2030 mm.
  • 4844 x 2115: To suit double 826 x 2040 mm doors. Clearance: 3100 x 2030 mm.
  • 5444 x 2115: To suit double 926 x 2040 mm doors. Clearance: 3500 x 2030 mm.
  • 6044 x 2115: To suit double 1026 x 2040 mm doors. Clearance: 3900 x 2030 mm.

Frames can be adapted to non-standard door sizes on request.

Accessories:

Synchronization: Open and close both doors (one side) with smooth action (recommended).

Digital objects
PlatformCompatibleVersionCertified to
ARCHICAD
- 1.0
Vectorworks
- 1.0
Revit
Revit 2016 5 2.0
IFC
IFC2X3 4 1.3
IFC
IFC2X3 4 1.3
Download now from NBS National BIM Library
