Telescopic Hoods
Verified by manufacturer 5 months ago
D49ED22N1B - 90 cm
D49ED22N1B - 90 cm
N 50, telescopic cooker hood, 60/ 90 cm, silver metallic.
Application
For domestic applications.
Description
N 50, telescopic cooker hood, 60/ 90 cm, silver metallic.

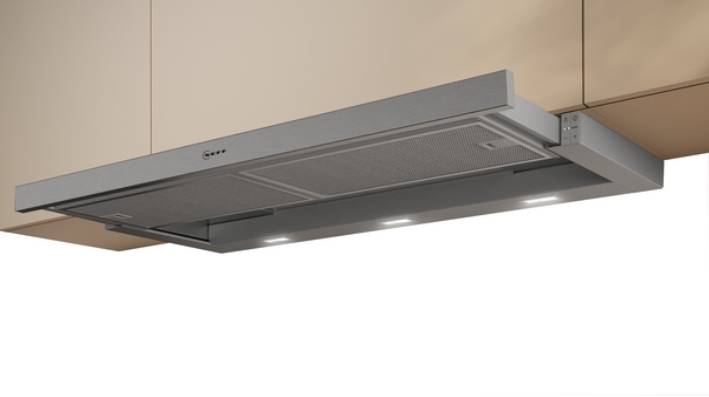

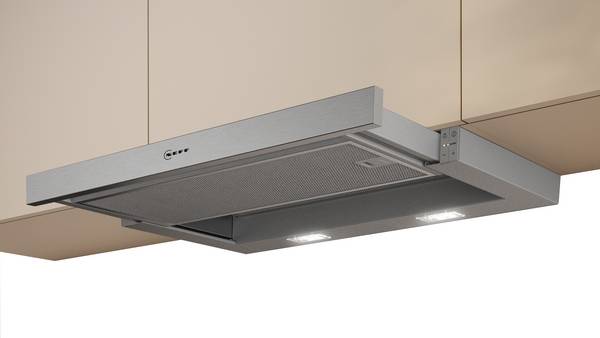

Telescopic hoods are designed to provide extraction without impacting kitchen space or design. These hoods pull out from underneath a cabinet when required.
Logo design handle, three speed plus one intensive, electronic controls, LED lights. Optional CleanAir Standard Recirculation Kit: Z51ITI1X4.
Features and benefits:
- Efficient drive motor: quiet and energy-efficient hood motor.
- Intensive speed setting: increases the extraction rate.
- LED lighting: clear illumination for cooking.
- Automatic after-running: ventilation continues for several minutes after the hood is turned off.
General information
Color | Silver |
Finish | Metallic |
Material | Stainless steel |
Shape | Rectangle |
Length | 290 mm |
Width | 898 mm 598 mm |
Height | 203 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Kitchen extractor hoods
Standards | |
Performance testing | To EN 61591, EN 60704-3 and EN 60704-2-13. |
Operation | Extraction.Recirculation.Guidance for specification option: For recirculated extraction, recirculating kit (accessory) needed. |
Installation | Integrated into wall unit. |
Material and finish | Metallic silver. |
Dimensions | |
Width (maximum) | 898 mm. |
Depth (maximum) | 290 mm. |
Height | 203 mm. |
Capacity (minimum) | 266 m³/h. |
Controls | Electronic three-speed plus intensive. |
Features | Three 1.5 W LEDs, three metal grease filter cassettes. |
Rating | 76 W. |
Electrical supply | 220–240 V, 50/60 Hz. |
Noise level at 1 m (maximum) | 63 dB(A). |
Accessories | Not required.Z51ITB1X4 Clean Air Standard odor filter (replacement).Z51ITI1X4 Clean Air Standard recirculation kit.Z54TC01X0 Standard odor filter (replacement).Z54TH90D1.Z54TH90N1.Z54TS01X0 Standard recirculation kit. |
Energy rating | A. |
Sustainability data
Material | Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
N 50, Telescopic cooker hood, 90 cm, Silver metallic D49ED22N1B

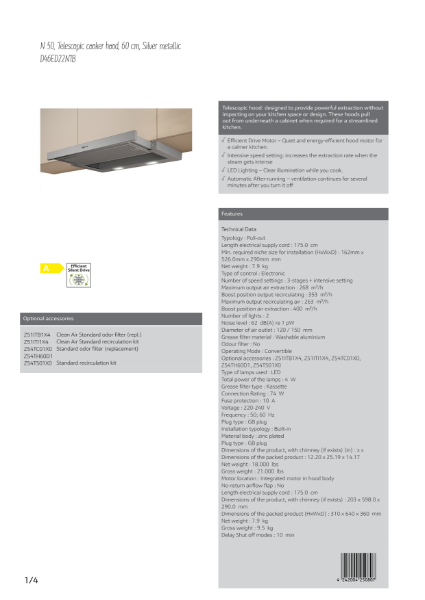

N 50, Telescopic cooker hood, 60 cm, Silver metallic D46ED22N1B
