TEG 310 2D 80 Hinge Set (HUKP-0202-06) - Door hinge
Verified by manufacturer 6 months ago
Stainless steel adjustable glass door hinge
Application
- Suitable for up to 80 kg glass door.
- Suitable for maximum frameless glass door size approximately 2500 x 1300 x 10 mm.
- Suitable for residential and commercial projects.
Description
Stainless steel adjustable glass door hinge.
Features and benefits:
- For flush glass doors 8-10 mm thick.
- Maximum door weight 80 kg.
- Installation without need to drill the glass door leaf.
- For timber, steel or aluminium frames.
- Lateral side adjustment (+ 3.0/ -2.0 mm).
- Height adjustment (+/- 1.0 mm).

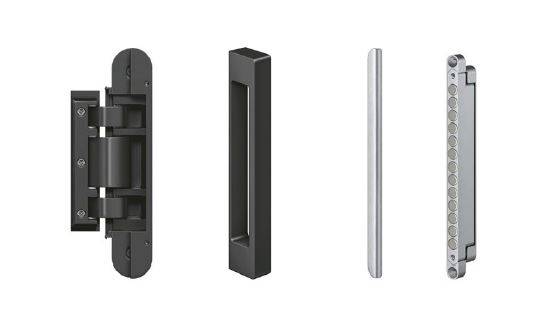

- Set clockwise handle, closing magnet and magnetic plate (silver).
- Closing magnet in frame is contactless and closes silently.
General information
Color | Black Grey Silver |
Finish | Matt Guidance for specification option: Black. Satin Guidance for specification option: Stainless steel. |
Material | Stainless steel Steel |
Length | 28 mm Guidance for specification option: Projection. |
Width | 40 mm |
Height | 200 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | P21/7 Single-axis door hinges P21/310 Single-axis door hinges |
Product range |
Specification data - Single axis door hinges
Size | 40 x 200 x 28 mm. |
Material and finish | Satin stainless steel, grade 1.4401 (316). |
Colour | Matt black.Satin stainless steel.Pure grey. |
Literature
6. Project - Architectural Hinges
