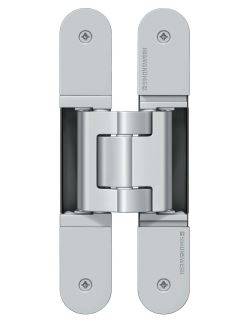

TECTUS TE 540 3D FR Hinge (HUKP-0202-02) - Door hinge
Verified by manufacturer 2 months ago
Certifire Certificate
Certificate type
Stainless steel concealed adjustable hinge
Application
- Suitable for maximum door weight of 120 kg.
- Suitable for use on fire doors.
Description
Stainless steel concealed adjustable 200 mm hinge.
Features and benefits:
- Concealed adjustable hinge.
- Integrated intumescent kit for un-rebated doors.
- Minimum door thickness 40 mm.
- Maximum door weight 120 kg with 180° opening angle.
- 3D adjustment (side and height +/- 3.0 mm compression +/- 1.0 mm).
- Maintenance-free slide bearings for timber or aluminium frames.
- Certifire approved.
General information
Color | Black Silver Bronze |
Finish | Matt Guidance for specification option: Black and nickel. Satin Guidance for specification option: Stainless steel. Polished Guidance for specification option: Nickel. |
Material | Stainless steel Steel |
Length | 200 mm |
Width | 80.5 mm |
Height | 34 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/7 Single-axis door hinges P21/310 Single-axis door hinges |
Product range |
Specification data - Single axis door hinges
Standard | To BS EN 1634-1 for FD30. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Test door mass | 6. |
Suitability for use on fire and smoke doors | 1.Guidance for specification option:
|
Corrosion resistance | Manufacturer guidanceCorrosion resistance dependent on the finish. |
Security, burglar resistance | 1. |
Hinge grade | 13. |
Size | 80.5 x 200 x 34 mm. |
Material and finish | Satin stainless steel, grade 1.4401 (316). |
Colour | Matt black (107).Satin stainless steel (126).Polished nickel (038).Matt nickel (125).Light bronze (174).Dark bronze (176). |
Third-party accreditation | CE marked to certificate number CPR-229IFT. |
Third party certifications
Certifire Certificate
Certifire CF5810
