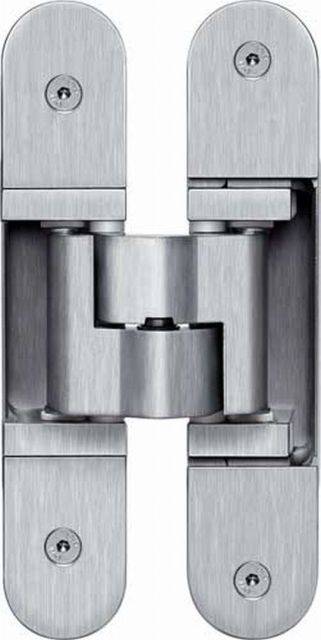

Tectus 3D adjustable concealed hinges
Description

A range of Tectus 3D adjustable concealed hinges in 2 sizes and finishes.

General information

Uniclass 2015

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/8 Door hinges

Specification data - Cranked hinges

Product Reference

Tectus 3D adjustable concealed hinges

Type

924.02.004

Tectus 310 3D hinges, stainless steel look

924.02.022

Tectus 310 3D hinges, matt nickel

924.02.224

Tectus 510 3D hinges, stainless steel look

924.02.222

Tectus 510 3D hinges, matt nickel

Accessories

924.02.290

Intumescent kit for 510 3D hinges only

Standard product features

Properties:

  • Completely concealed hinge system.
  • Robust and reliable.
  • For domestic or commercial applications.
  • Opening angle: 180°.
  • Vertical adjustment: ±3 mm.
  • Horizontal adjustment: ±3 mm.
  • Depth adjustment: ±1 mm.
  • Maintenance-free bearing.
  • Material: Aluminium and zinc diecast and steel.
  • Finish: Matt nickel or "stainless steel look".
  • Fixing screws included, except for door part.

Product Options

Tectus 310 3D hinges:

  • Dimensions: 140 mm high.
  • Hinge plate width: 27.5 and 29 mm.
  • Maximum adjusted door weight: 60 kg.

Tectus 510 3D hinges:

  • Dimensions: 180 mm high.
  • Hinge plate width: 30 and 32 mm.
  • Maximum adjusted door weight: 60 kg.
  • An intumescent kit is available to provide a 30 minute fire rating, ref: 924.02.290.

Accessories:

Intumescent kit, to suit Tectus 510 3D hinges.

  • Fire rating: 30 minutes.
  • Colour: White.
