Tecties TT1 Heavy Duty Wall Ties
Verified by manufacturer 1 month ago
200 mm
200 mm
DoP
Certificate type
ISO 9001 Quality Management
Certificate type
Heavy duty stainless steel cavity wall ties.
Application
For use in masonry cavity walls for cavity widths up to 150 mm and buildings of any height.
Description
The distinctive tangle free design of TecTies TT1 Turbo Heavy Duty Tie offers a practical and cost effective solution for most cavity walls. The ties are specifically designed for cavity widths up to 150 mm and buildings of any height. Fully tested to BS EN 846-5:2012 the ties meet the requirements of BS EN 845-1:2013. They also meet the requirements of Part E of the Building Regulations for type B in external walls.
Features and benefits:
- Tangle-free - saves time and money.
- Supplied in bundles - practical benefits for the bricklayer.
- No boxes - minimal packaging waste.
- Better storage particularly during inclement weather.
- Strong whilst still retaining its flexibility for coursing.
- Arguably the safest Type 1 to use and handle.
- Impossible to install upside down due to its multi drip form.
General information
Color | Silver |
Material | Stainless steel |
Length | 300 mm 275 mm 250 mm 225 mm 200 mm |
Uniclass | |
CAWS | F30/24 Cavity wall ties F30/214 Cavity wall ties |
Specification data - Cavity wall ties
Standard | To BS EN 845-1:2013. |
Tie type | PD 6697 Type 1 (Masonry – heavy duty). |
Material | Stainless steel. |
Length | 200 mm. |
End types | Asymmetrical triangle. |
Additional requirements | |
Compressive load capacity | 4080 N. |
Tensile load capacity | 3647 N. |
Cavity width | Manufacturer guidanceCavity width 50–75 mm. Insert requirement. |
Sustainability data
Contains Red List materials | No |
Country of material origin | India |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
DoP
Type 1 Housing Ties TT1 200mm
DoP
Type 1 Housing Ties TT1 225mm - 76—100mm cavities
DoP
Type 1 Housing Ties TT1 250mm - DoP
DoP
Type 1 Housing Ties TT1 275mm - DoP
DoP
Type 1 Housing Ties TT1 300mm - DoP
ISO 9001 Quality Management
ISO 9001 :2015
Literature

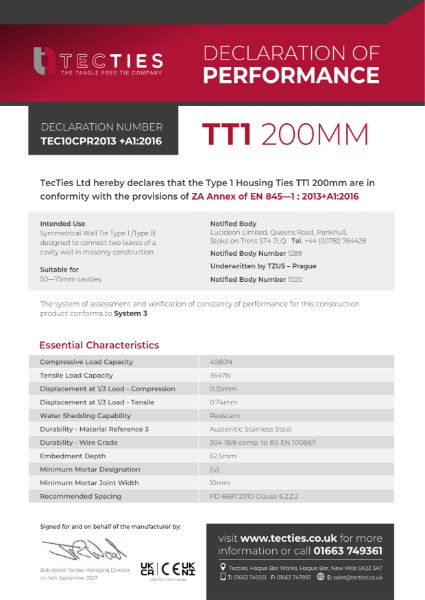

TT1300 Declaration of Performance

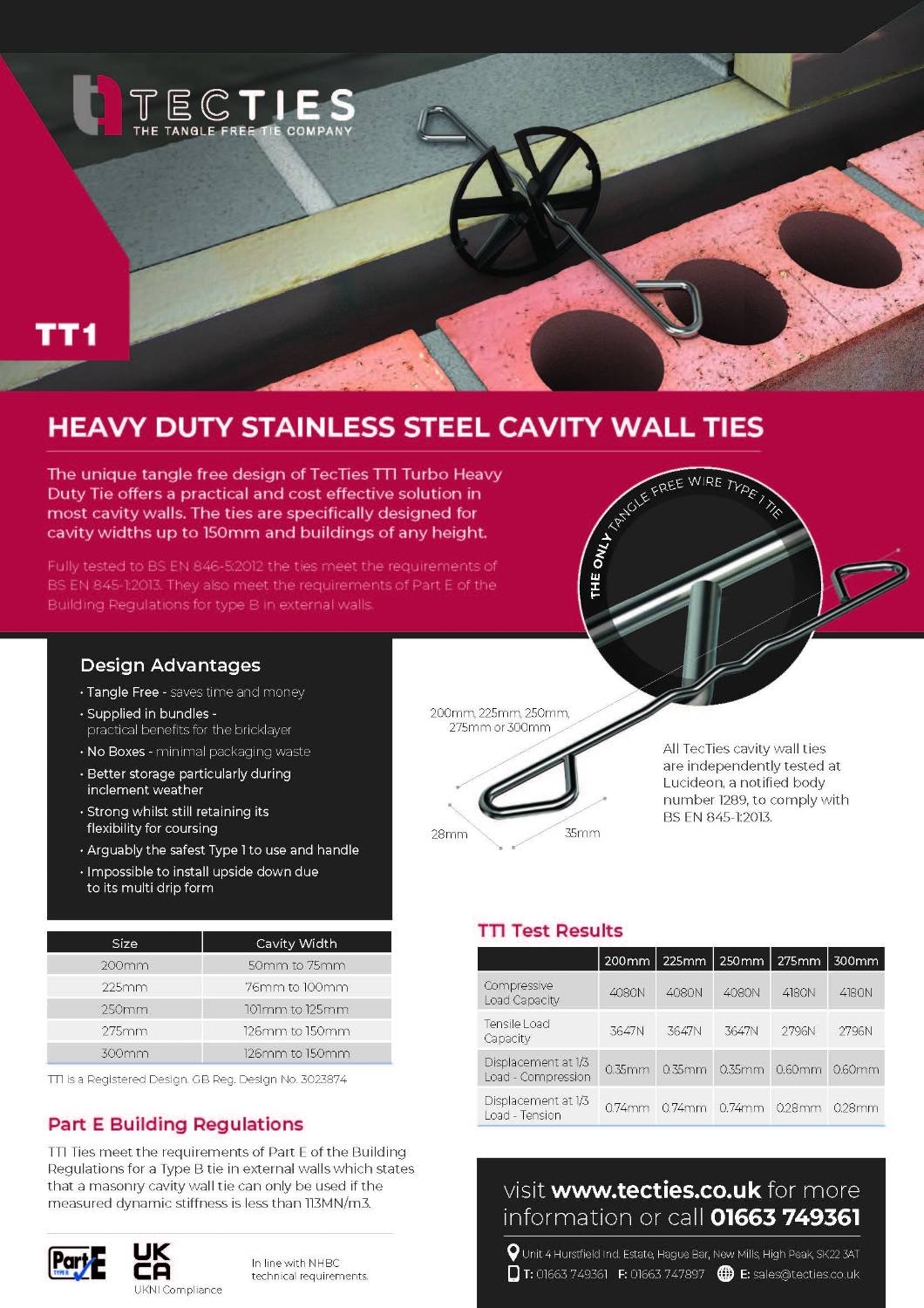

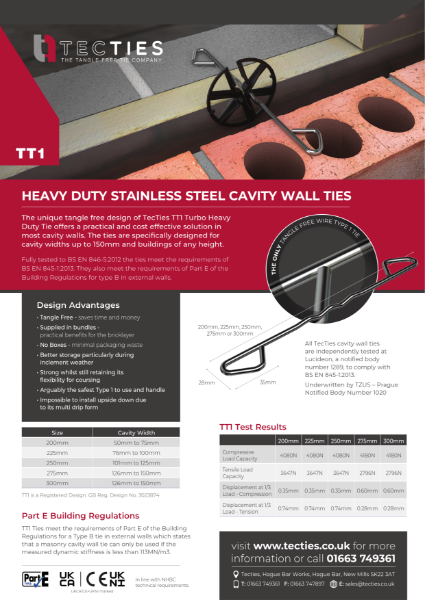

Tecties TT1 datasheet
