NBS Source
Technics 6

Technics 6

Interfloor Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

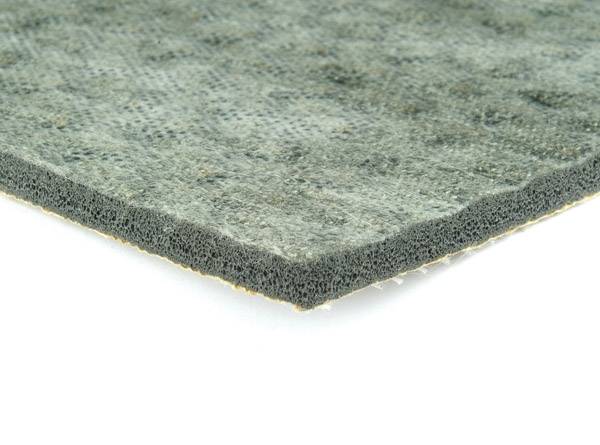

Underlay suitable for the double-stick and stretch-fit installation of carpets.

Jump to:
+44 (0)1706 238820 www.interfloor.com


Underlay suitable for the double-stick and stretch-fit installation of carpets.

Features and benefits:

  • Sponge rubber (flat).
  • Suitable for underfloor heating. Suitable for flame retardant applications.
  • End use classification (to BS 5808): HC/U, heavy contract use.

General information


Pr_35_57_11_13 Cellular rubber underlaysPrimary


M50/170 Carpeting

M50/25 Carpeting

Product range

Carpet Underlays

Specification data - Cellular rubber underlays

Product Reference

Technics 6, TATECH6

Standard product features

Nominal square weight:

3153 g/m².

Nominal density:

525.45 kg/m³.

Roll area:

15.07 m² (1.37 x 11 m).

Nominal roll weight:

47.5 kg.

Nominal thickness:

6 mm.


No objectionable odour.

Colour/ backing:

Black/ printed Textron® backing.

Impact sound reduction (Delta Lw):

31 dB.


Accreditation 0754 to US CRI Green Label Plus programme.

French VOC Emission Regulations:

Complies A+.

Antimicrobial and mildew resistance:


Thermal resistance:

0.66 togs.

Thermal resistance (R-value):

0.066 m²K/W.

Technical characteristics:

  • Work of compression (minimum 50 J/m²): 119 J/m².
  • Retention of work of compression (minimum 40%): 86%.
  • Compression after dynamic loading: 3.0 mm.
  • Loss in thickness after dynamic loading (maximum 15%): 3.8%.
  • Loss in thickness after static loading (maximum 15%): 4.2%.
  • Resistance to cracking (not greater than 50 mm): Pass.
  • Breaking strength (length/ width, minimum 40N): 282/ 162 N.
  • Extension under force (length/ width, maximum 10%) @ 40N: 0.8/ 0.5%.

Test Performance to US Standards:

  • CFD (Compression Force Deflection): 5.0 PSI @ 25% deflection.
  • CFD (Compression Force Deflection): 14.7 PSI @ 50% deflection.
  • CFD (Compression Force Deflection): 53.1 PSI @ 65% deflection.
  • Recommended use: Extra heavy commercial class III.


  • Hot metal nut test: Low radius of ignition.
  • US Methenamine Pill Test: Pass.
  • US Smoke Chamber test: Pass.
  • US Critical radiant flux: NFPA class I.
  • Reaction to fire classification (tested in conjunction with Axminster 80:20 carpet): Bfl-s1.
  • Russian GOST FR Test Classification: KM3.

Green credentials:

  • Recyclable: At the end of the underlay's useful life it can be 100% recycled. MR 2.0: points available. It can be recycled.
  • Recycled content: Contains not less than 3% post-consumer recycled material. MR 4.0: points available. Recycled content.
  • Indoor Air Quality: Meets or exceeds the industry standard for indoor air quality as established by the CRI Green Label Programme. IEQ 4.3: Points Available. Product is Green Label Plus certified.
  • Regional materials: Production Facility, Haslingden, BB4 4LS, UK. Where used within 500 miles of production facility, MR 5.0: points available.

Recycled content:

  • Post-consumer: 0%.
  • Pre-consumer: 3%.
  • Virgin: 97%.

Environmental information

Recycled content

Post-consumer: 0% %

Pre-consumer: 3% %

Virgin: 97% %

Third party certifications

  • CRI: Green Label Plus
