TDTR Towel Rail Range
Verified by manufacturer over a year ago
TDTR175W
TDTR175W
A compact, slimline range of heated towel rails.
Application
Suitable for wall mounting in bathrooms and other wet areas.
Description

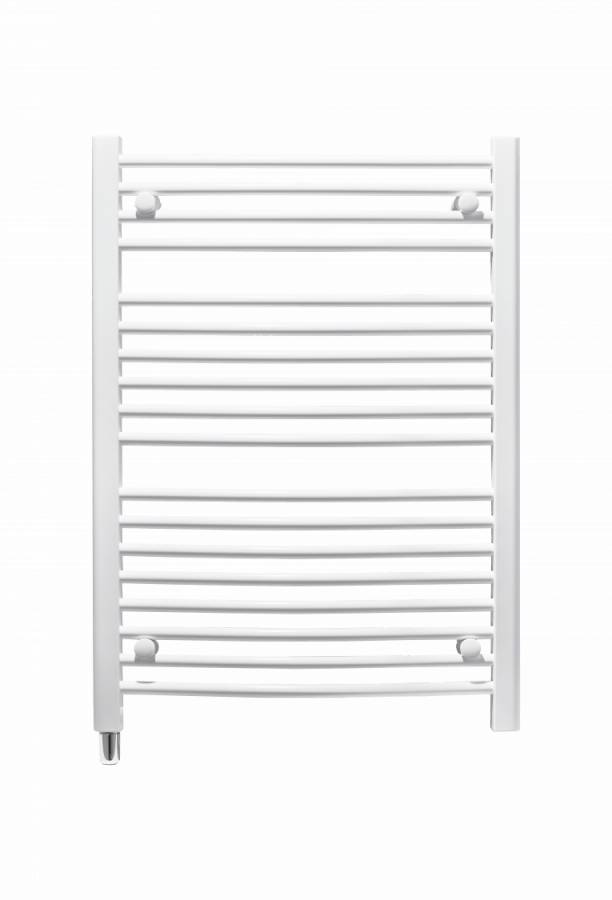

A curved ladder towel rail in two outputs, finished in white or chrome.
Features and benefits:
- Easy and quick to install.
- Range of finishes and sizes available.
- Fluid filled for even heat distribution.
- Larger models will help to take the chill off a small bathroom or cloakroom.
- Compact, slimline design.
- Compatible with the Dimplex towel rail controllers FSC and RF ranges.
- CE and BEAB certified.
General information
Color | White |
Finish | Chrome Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 453 mm 602 mm |
Height | 610 mm 843 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/466 Towel rails V90/590 Equipment T90/470 Towel rails T90/470 Towel warmer radiators |
SKU Code | TDTR175W, TDTR350W, TDTR175C, TDTR350C |
Specification data - Electric heated towel rails
Classification data | |
Third party certification | CE and BEAB. |
Power rating | 175 W. |
Ingress protection (minimum) | IPX5. |
Controls | No external controls. External controls. Guidance for specification option: Compatible with Dimplex towel rail controllers FSC and RF ranges. Insert requirements. |
Finish | White. |
Accessories | TDTR175. Guidance for specification option: Three brackets, three mounting screws, three hex stud screws, one allen key. TDTR350. Guidance for specification option: Four brackets, four mounting screws, four hex stud screws, one allen key. |
Dimensions | 610 x 453 x 80–100 mm. |
Elements | Submersion element with temperature limiter and fuse link. |
Thermal protection | Built-in temperature limiter and overheat protection. |
Electrical connection | 1 m pre-fitted cable. Cable entry at bottom left rail. Guidance for specification option: Installations must be in accordance with IEE regulations. |
Construction | Sealed steel shell, 'D' shaped upright bars. Guidance for specification option: Vertical mounted element. |
Class | Class I. |
Ingress protection (IP) rating | IPX5. |
Sustainability data
Country of product manufacture | Turkey |
Literature
TDTR Towel Rail
