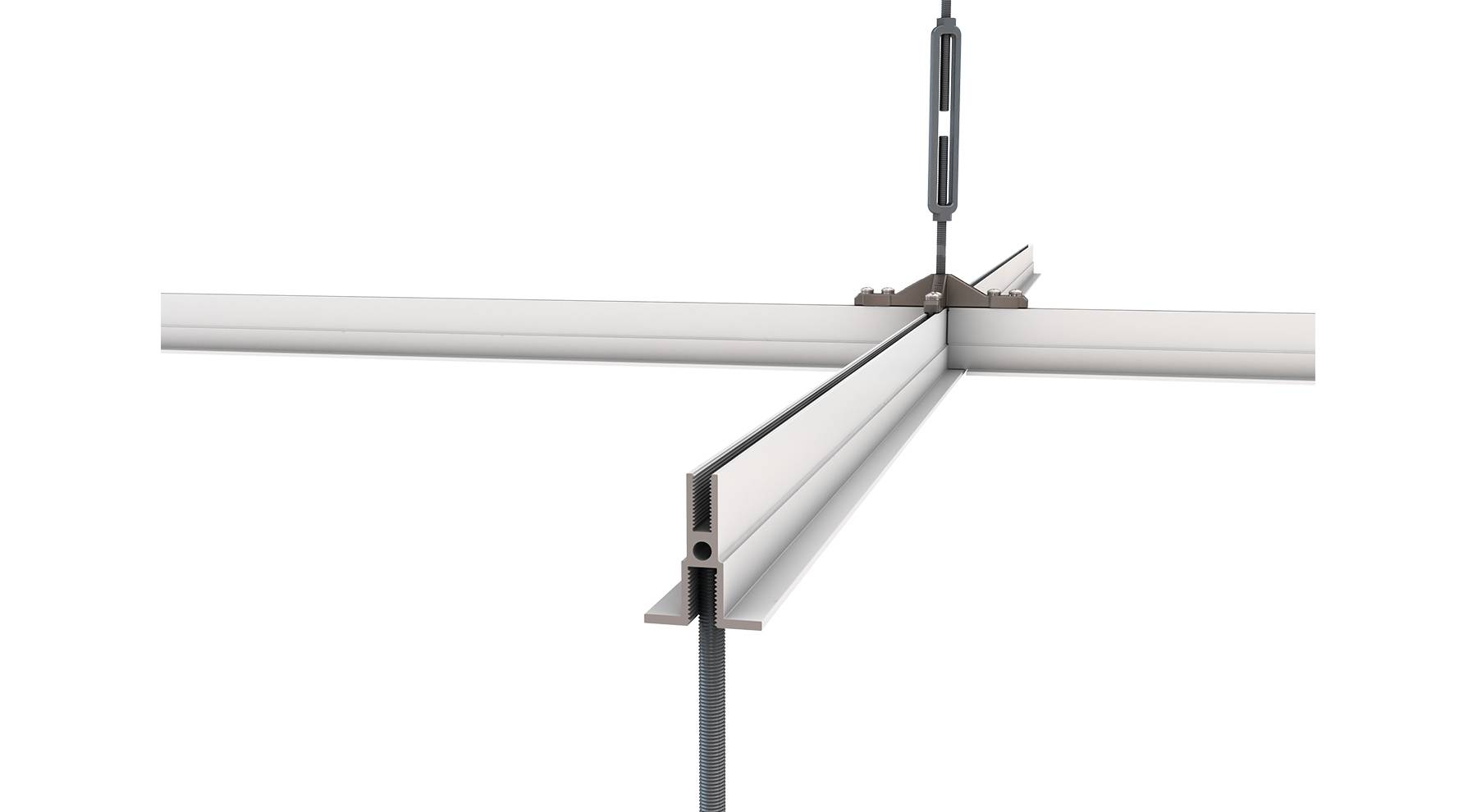

Tate Grid - Demountable suspended ceiling grid

Tate Grid is a data centre ceiling product which combines structural and acoustical ceilings into one versatile solution. Tate Grid is faster and easier to install than other ceiling systems as it has been designed specifically for data centres. The load rating of 1.7 kN is sufficient to carry most suspended loads including busbars, cable trays, hot aisle containment systems, lighting and fire suppression.

The M10 slot on the underside of the ceiling means that trades will not need to remove ceiling tiles or enter the ceiling plenum to run services as they can quickly and easily connect to the ceiling, reducing the number of man hours inside the data hall.

The ceiling is customisable to 600 x 600 mm and 600 x 1200 mm configurations, and available in a range of colours and with ceiling tiles to suit.

General information


High Strength Cast Aluminium Construction, Corrosion Resistant Aluminium Casting, Ribs on connector to engage with grid and prevent racking, Attaches to grid members with (4) 1⁄4”-20 screws, M10-1.5 Turnbuckles with starter rod threads into connectors on a 1200x1200mm spacing, On site modifiable connectors for perimeter installation. 1.7 kN max point load at midpoint of span on 1200 x 1200 mm centres


Painted or anodized






600 x 1200 x 50.8 mm

Uniclass 2015

Pr_20_85_32_22 Demountable suspended ceiling gridsPrimary
Digital objects
PlatformCompatibleVersionCertified to
Revit 2016 1 2.0
- 1 2.0
Download now from NBS National BIM Library
