Tarasafe Plus - Sheet - Safety Flooring
Verified by manufacturer 3 months ago

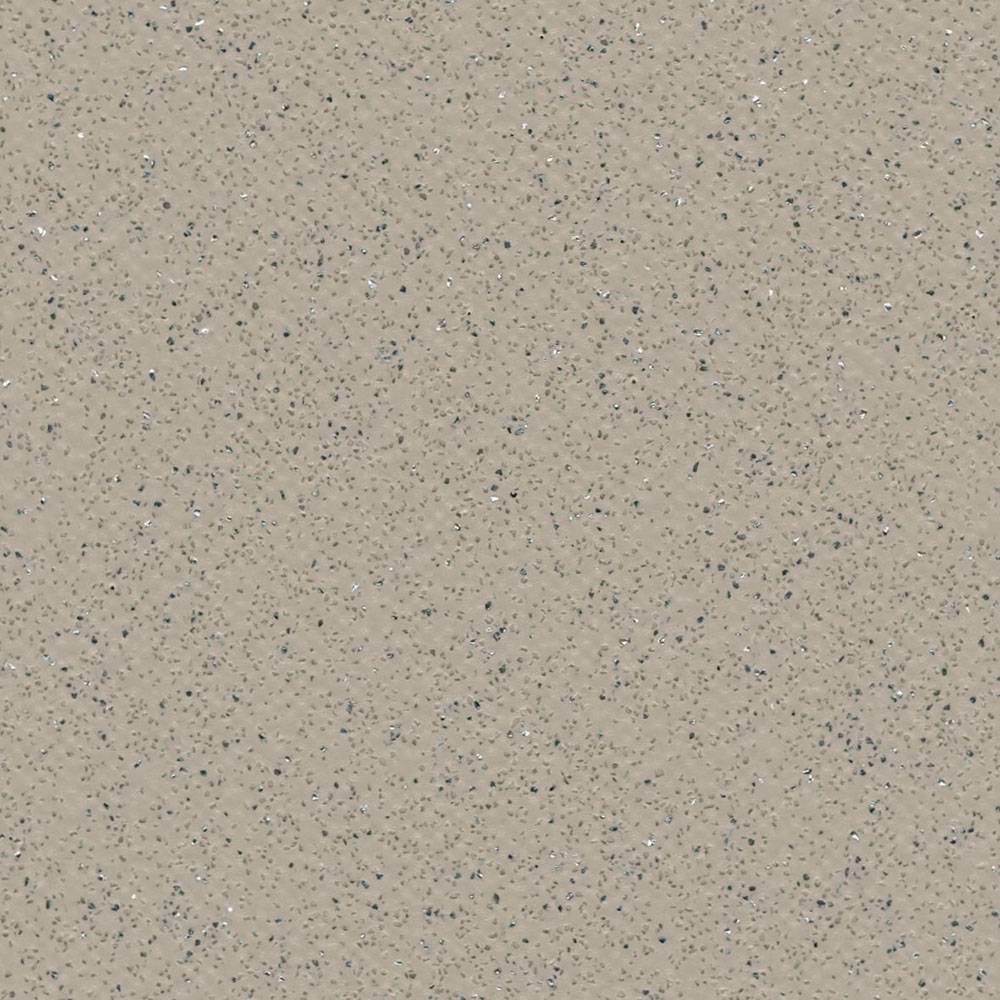

7386 - Savana
7386 - Savana
EPD
Certificate type
Multi-layered, slip-resistant, vinyl safety sheet floor covering with a PVC wear layer and deeply inlaid mineral crystal particles.
Application
Tarasafe Plus is a commercial safety floor suitable for most contract and commercial applications.
Description
Tarasafe Plus is a multi-layered, slip resistant, vinyl safety sheet floor covering with a polyvinyl chloride (PVC) wear layer and deeply inlaid mineral crystal particles. Designed for high traffic commercial applications with a 1.14 mm wear -layer, Tarasafe Plus is reinforced with a glass fibre grid and has a textile backing for enhanced adhesion in wet areas (reduced telegraphing).
Features and benefits:
- HSE >36 PTV for slip resistance and >20 µm surface roughness/ R10.
- Durable construction (1.14 mm thick wear layer – suitable for high traffic applications).
- Textile backing.
- Highly flexible, easy to install and weld.
- Compatible with the Gerflor Clean Corner system.
- 100% recyclable.
Installation and maintenance:
Should be installed in accordance with the BS 8203:2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available. Can be installed with the patented Clean Corner System for ensured hygiene.
General information
Color | Other Manufacturer guidanceSee specification data for options. |
Finish | Matt |
Material | Vinyl Guidance for specification option: With deeply inlaid mineral crystal particles and coloured chips. |
Shape | Rectangle |
Length | 20000 mm |
Width | 2000 mm |
Height | 2.5 mm |
Warranty description | 12 year |
Uniclass | |
CAWS | M50/20 Sheeting M50/150 Sheeting |
Product range |
Specification data - Particle-based enhanced slip-resistant polyvinyl chloride (PVC) sheets
Standard | To BS EN ISO 10582. |
Use class | To BS EN ISO 10874, class 34–43.Guidance for specification option: Commercial, very heavy – Light industrial, heavy. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | R10/ >36 PTV.Guidance for specification option: To DIN 51130/ To BS 7976. |
Surface roughness (Rz) (minimum) | >20 μm.Guidance for specification option: To BS 7976 |
Width | 2000 mm. |
Thickness | 2.5 mm. |
Colour and pattern | Savana. |
Wear layer | 1.14 mm. Guidance for specification option: Thickness of wear layer. |
Weight | 3090 g/m². |
Static electricity | <2 kV. Guidance for specification option: To BS EN 1815 static electricity electrical propensity. |
Fire classification (EN 13501-1) | Bfl-s1. |
ThermalConductivity | 0.25 W/m·K. Guidance for specification option: To BS EN 12524 |
Accessories | Clean Corner system. Co-ordinating weld rods. |
Wear group | T. Guidance for specification option: To NF 189. |
Binder | Type I. Guidance for specification option: Binder content to BS EN ISO 10582. |
Residual indentation (to EN-ISO 24343-1) | ≤0.10 mm. |
VOC emissions | <100 µg/m³. Guidance for specification option: TVOC after 28 days (to ISO 16000-6) |
Colour (Light reflectance value (LRV) | 44.3. |
Sustainability data
Contains Red List materials | No |
Material | Vinyl Guidance for specification option: With deeply inlaid mineral crystal particles and coloured chips. |
Recyclability | 100% |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 2 |
Third party certifications
EPD
EPD - Tarasafe
Literature
Tarasafe Super & Plus Card
Safety Flooring Solutions
Clean Corner System
Chemical Resistance Results
