Taraflex® Surface – Sheet - New - Sports Flooring

Name: Taraflex® Surface – Sheet - New - Sports Flooring
Brand: Gerflor Flooring UK Limited
SKU: qpZ8wqJMTQ5cvzXpGkn8k2

Verified by manufacturer 3 months ago

2404 London Light Blue

Gerflor Flooring UK Limited

Third party certifications:

EPD
Certificate type

Surface is a compact vinyl sheet sports floor covering used in sport areas where no shock absorption is required, or combined with an undercarriage system for area elastic floor requirements.

Jump to:

01625 428 922 Website

Application

Suitable for rolling sports and heavy-duty multipurpose usage including fitness machine-based areas.

Description

Taraflex® Surface is a compact vinyl sports floor covering consisting of a D-Max™ surface - Gerflor’s own complex made up of calendered polyvinyl chloride (PVC) sheets incorporating 81% bio, mineral or recycled content. It is reinforced with a fibreglass grid for high durability and outstanding dimensional stability. Taraflex® Surface can be used individually or combined with undercarriage systems to create area elastic floors.

Features and benefits:

Contains 81% either bio, mineral or recycled content
Triple Action Protecsol® surface treatment for easy maintenance, friction burn protection and ‘intelligent’ sliding coefficient.
Available in 21 solid colours and wood designs as standard. A further 127 solid colour options and bespoke digitally printed options are available, subject to a minimum order quantity.
Combine with AE Low Profile/ AE85 undercarriage for A3/ A4 performing floors (specified separately).
100% recyclable and contains up to 34% recycled content.
As used by many leading International Sport Federations –contact manufacturer for full list.

Installation and maintenance:

Should be installed in accordance with the BS 8203: 2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available; consult manufacturer for details.

General information

Color	Other Guidance for specification option: Please see specification data for options.
Material	Vinyl
Shape	Rectangle
Length	26500 mm Guidance for specification option: Maximum roll length.
Width	1500 mm
Height	2 mm
Warranty description	12 year

Uniclass	Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary
CAWS	M50/150 Sheeting M50/20 Sheeting

Specification data - Polyvinyl chloride (PVC) sheets

Standard	To EN 14904.
Recycled content	34%. Guidance for specification option: Contains up tp 34% recycled content.
Width	1500 mm.
Thickness	2 mm.

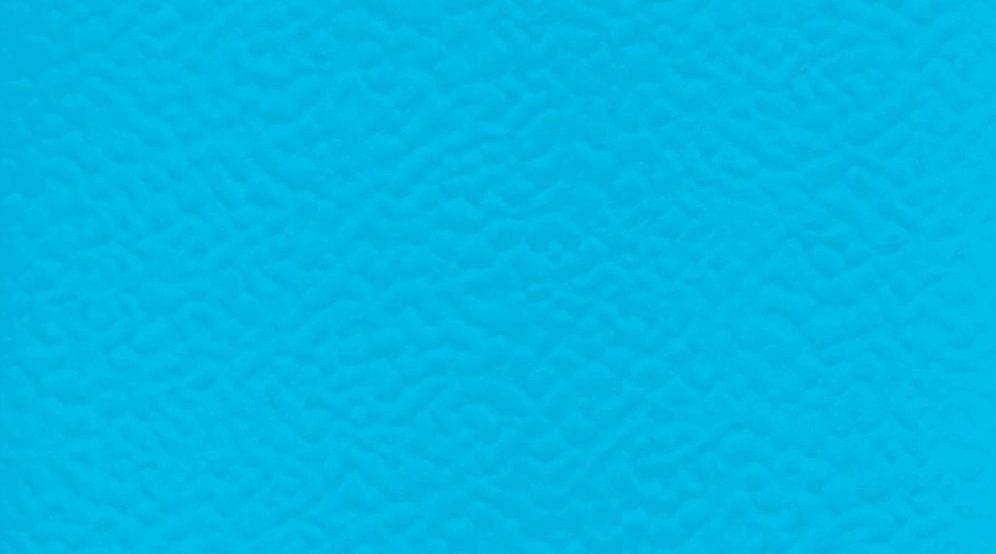

Colour and pattern	London Light Blue.

Weight	2.9 kg/m².
Abrasion resistance	≤350 mg. Guidance for specification option: To BS EN ISO 5470-1
Fire classification (EN 13501-1)	Bfl-s1.
Impact resistance	≥8 N/m. Guidance for specification option: To EN 1517
Resistance to indentation (minimum)	≤0.5 mm. Guidance for specification option: To BS EN 1516
Accessories	Not required. Co-ordinating weld rods. My Taraflex® bespoke digital print service. Guidance for specification option: Contact manufacturer for details and insert requirements.
Ball rebound	≥90%. Guidance for specification option: Ball bounce to BS EN 12235.
Sliding properties	80–110. Guidance for specification option: To BS EN 13036-4 Sliding coefficient.
Deformation capability	≤ 2 mm. Guidance for specification option: To BS EN 14809 Vertical deformation.
Surface treatment	Triple Action Protecsol.
Colour (Light reflectance value (LRV)	33.8.

Sustainability data

Contains Red List materials	No
Country of product manufacture	France
Material	Vinyl
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	34 % Guidance for specification option: Contains up to 34% recycled content.
Expected Life	25 year
