Taraflex® Subflex Combisport Profile System - Sports Flooring
Verified by manufacturer 4 months ago

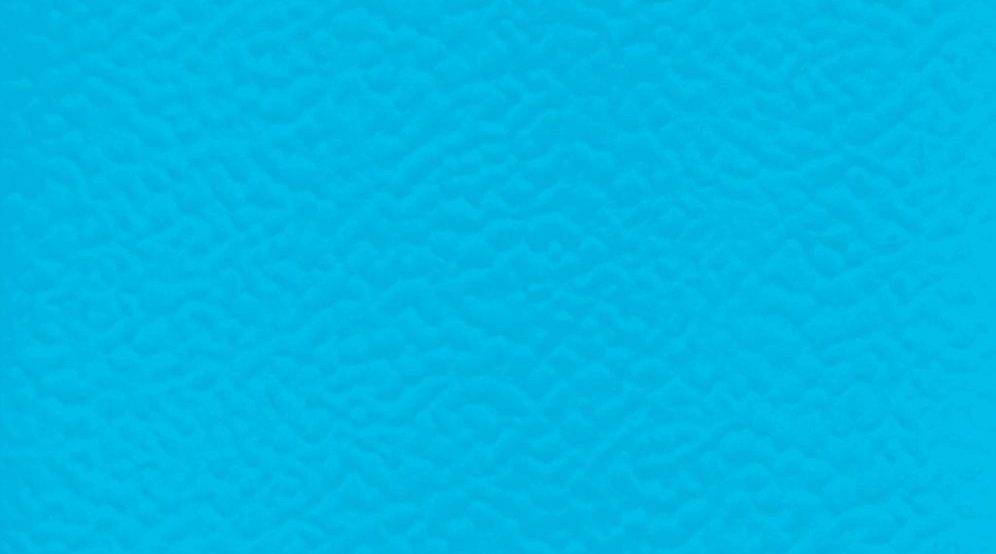

2404 London Light Blue
2404 London Light Blue
EPD
Certificate type
A combined elastic sports floor giving C3 performance according to EN 14904.
Application
Suitable for a variety of sports and leisure activities.
Description
Taraflex® Subflex Combisport is a combined elastic floor consisting of an undercarriage construction topped with Taraflex® Evolution. Undercarriage is made up of 18.8 mm thick overlapping high-density fibreboard. The board is fully supported by a shock-absorbing 15 mm thick foam pad. Taraflex® Evolution is a multipurpose vinyl sheet sports floor covering consisting of a D-Max™ surface - a Gerflor complex made up of calendared PVC sheets reinforced with a fibreglass grid for high durability and outstanding dimensional stability. It is backed with double-density CXP HD™ closed cell foam for performance and safety.
Features and benefits:
- C3 shock absorption category sports floor. (EN 14904).
- Triple Action Protecsol® surface treatment for easy maintenance, friction burn protection and ‘intelligent’ sliding coefficient.
- Undercarriage consists of an offset double-layer structure that enables a full assembly coverage: solidity, stability and superior resistance to static and rolling loads.
- Looselay installation of undercarriage system, glued installation of Taraflex® Evolution.
- Available in 20 solid colours and wood designs as standard with further bespoke solid colours and design options available subject to minimum order quantities.
- Taraflex® Evolution is 100% recyclable.
- Used by many leading International Sport Federations – contact manufacturer for full list.
Installation and maintenance:
Installation and maintenance instructions are available; consult manufacturer for details.
General information
Color | Pink Red Gold Beige Blue |
Finish | Matt |
Material | Timber Vinyl Foam |
Shape | Rectangle |
Length | 1321 mm Guidance for specification option: System consists of timber panels topped with vinyl sheet. Timber sheets are 1321 x 539 mm. overlapping. 1145 mm Guidance for specification option: Usable area of a panel for the first line (overhang cut): 1145 x 370 mm. 1235 mm Guidance for specification option: Usable area of a panel for the subsequent lines: 1235 x 460 mm. 2000 mm Guidance for specification option: Shock absorbing foam pad dimensions: 2000 x 1600 mm. 26500 mm Guidance for specification option: Taraflex® Evolution vinyl sheet top layer is available in customised lengths in 500 mm. increments up to a maximum of 26500 mm. |
Width | 539 mm 370 mm 460 mm 1600 mm 1500 mm |
Height | 41 mm Guidance for specification option: System build up. |
Warranty description | 12 year |
Uniclass | |
CAWS | M50/110 Resilient floor tiling M50/20 Sheeting |
Product range |

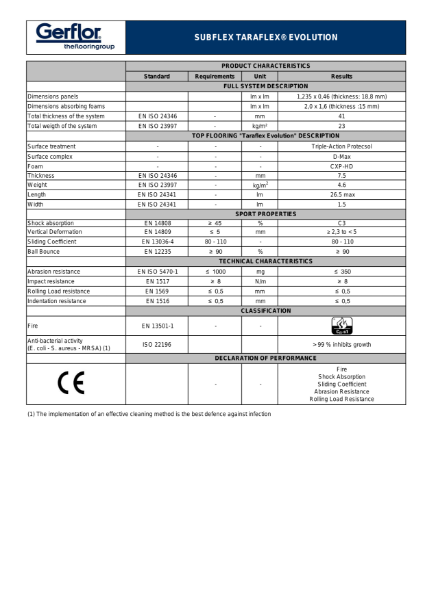

Specification data - Resilient sheet floor covering systems
System performance | To EN 14904. |
Rigid underlay | |
Type | 18.8 mm thick overlapping high-density fibreboard.Guidance for specification option: Timber panels: 1321 x 539 x 18.8 mm. |
Resilient underlayer | |
Type | Foam pad.Guidance for specification option: 2000 x 1600 x 15 mm. |
Sheet | |
Type | Taraflex Evolution.Guidance for specification option: 1500 mm width and customised lengths in 500 mm. increments up to a maximum of 26500 mm. |
System accessories | Not required.Co-ordinating weld rods. |
Colour (Light reflectance value (LRV) | 33.8. |
Weight | 27.6 kg/m². |
Abrasion resistance | ≤ 350 mg. Guidance for specification option: To BS EN ISO 5470-1. |
Ball rebound | ≥ 90%. Guidance for specification option: To BS EN 12235. |
Fire classification (EN 13501-1) | Cfl-s1. |
Impact resistance | ≥ 8 N/m. Guidance for specification option: To BS EN 1517. |
Resistance to indentation (minimum) | ≤ 0.5 mm. Guidance for specification option: To BS EN 1516. |
Shock absorption | C3. Guidance for specification option: To BS EN 14904. |
Sliding properties | 80–110. Guidance for specification option: To BS EN 13036-4 Sliding coefficient. |
Deformation capability | ≤ 5 mm. Guidance for specification option: To BS EN 14809 Vertical deformation. |
Thickness | 41 mm. Guidance for specification option: System build up. |
Colour and pattern | London Light Blue. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | France |
Material | Timber Vinyl Foam |
Recyclability | 100% Guidance for specification option: Taraflex® Evolution is 100% recyclable. |
