Verified by manufacturer 6 days ago
QA Certificate
Certificate type
WRAS
Certificate type
Tap Range - small basin mixer, for high and low pressure systems.
Pillar tap.

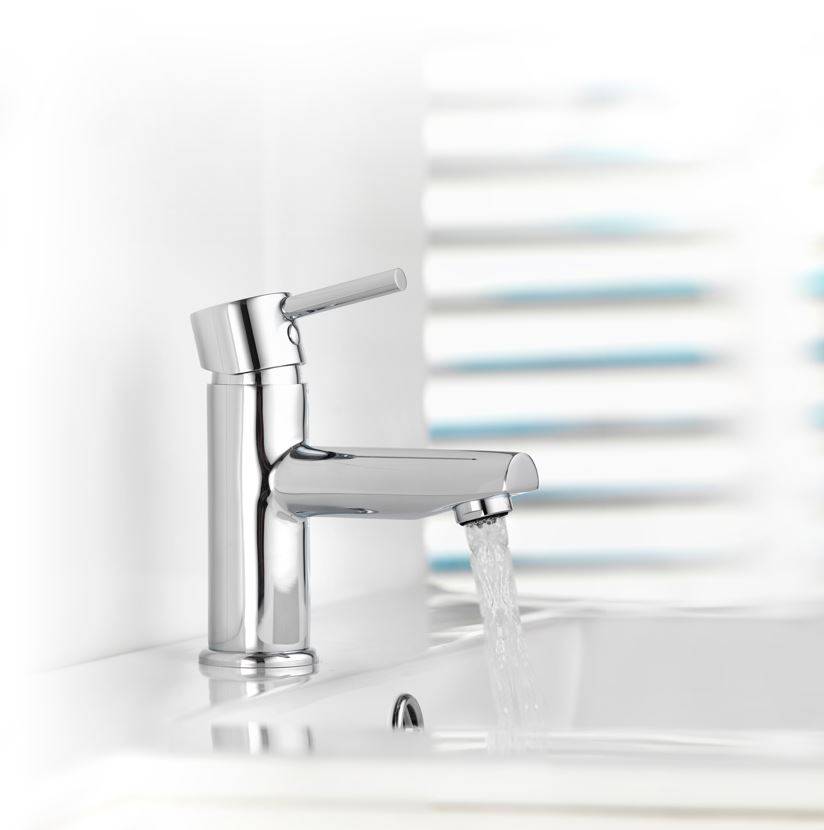

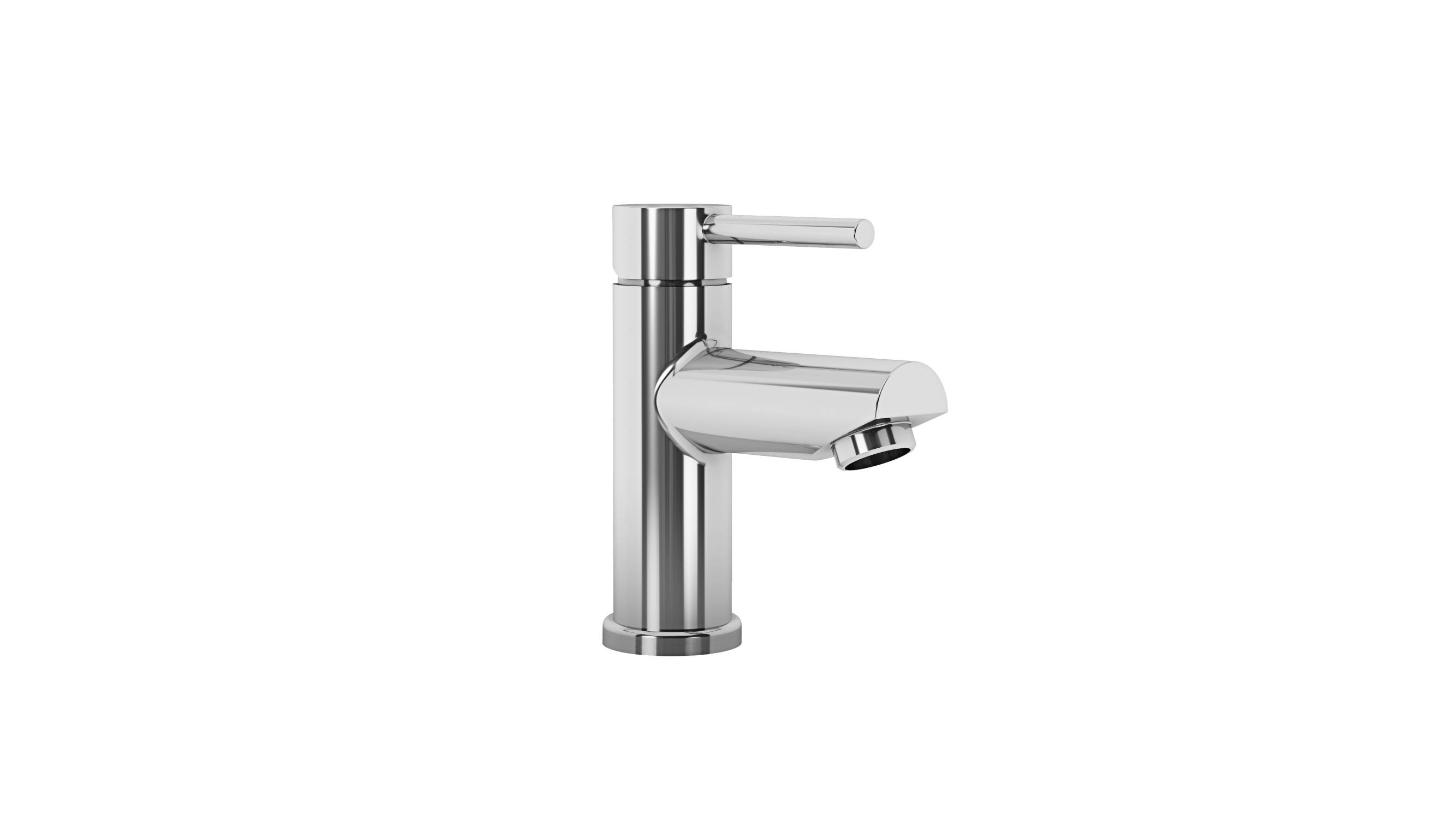

The pin lever collection is probably the most convenient design for ease of use in any bathroom. With a pin lever control at the heart of each Uptown tap, the small Uptown Basin Mixer Tap offers a compact, high-performance basin tap option in a stylish and contemporary design. Find your desired temperature with ease, and this bathroom sink tap comes complete with an aerator for softer, non-splash flow and a metal click-clack plug. Suitable for low- and high-pressure water systems, Aqualisa Uptown taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom. Uptown is completed with a five year parts and labour guarantee when registered with Aqualisa.
Features and benefits:
Water system compatibility:
Color | Silver |
Finish | Chrome Gloss |
Material | Brass Zinc Plastic |
Shape | Circle |
Length | 135 mm |
Width | 50 mm |
Height | 116 mm |
WarrantyDescription | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Product range |
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Basin mixer tap. |
Materials | - |
Body | Brass, zinc, chrome plated, plastic. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | At 5 bar: 4.91 L/m (full hot), 4.72 L/m (full cold), 4.82 L/m (mixed). |
Water supply temperature (maximum) | 5–65°C. |
Integral accessories | Ease of use, includes click clack waste. |
Weight | 1.636 kg.
|
Pressure | 0.1–5 bar (static). |
InletConnectionSize | 2 x Braided hose with 1/2" BSP female. |
Handle type | Lever, dual control. |
Tap holes | One hole. |
Taps | 50 x 135 x 116 mm. W x D x H, |
MountingType | Deck mounted. |
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recycled content | % Packaging recycled content:
|
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
