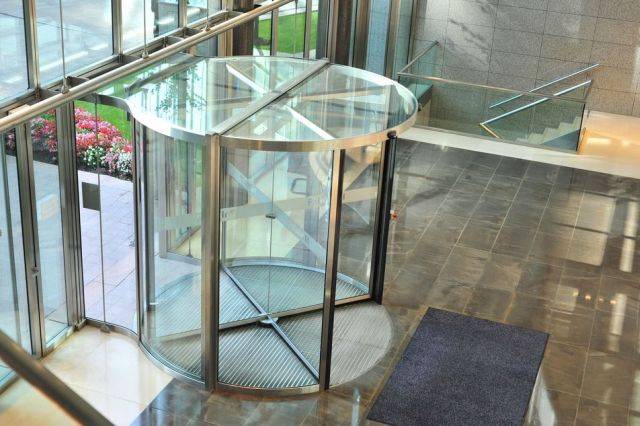

Talos Manual Revolving Doors
Application

  • Prestigious entrance foyers of office buildings.
  • Entrances to shopping centres, airports and other public institutions.
  • Crossovers between buildings.

Description

Revolving doors offering optimum thermal separation in entrances. They can be optionally equipped with a wide range of features to meet customer requirements, such as emergency exit function, integration of a manual or motorized night-time closure.

Features and benefits:

  • Energy-saving thermal separation.
  • Transparent all-glass units with filigree profiles.
  • Solutions suitable for escape routes.
  • Optional night-time closure.
  • Optional rotation speed controller for handicapped access.
  • Versions with resistance classes WK2 and WK3.
  • Safety sensor system according to DIN 18650.

Applications:

  • Prestigious entrance foyers of office buildings.
  • Entrances to shopping centres, airports and other public institutions.
  • Crossovers between buildings.

General information

Finish

Polyester powder coated, RAL

Insert colour requirement.

Silver anodized

Uniclass 2015

Pr_30_59_24_50 Manual revolving doorsetsPrimary

CAWS

L20/500 Manual revolving doors

Specification data - Manual revolving doorsets

Product Reference

RDR-C01

T40 rotating unit with laminated glass, 2100–3700 mm diameter.

RDR-E01

T40 rotating unit with laminated glass, 2100–3700 mm diameter.

RDR-S01

T40 rotating unit with toughened glass, 2100–3300 mm diameter.

Type

Three wing

Four wing

Diameter

Insert requirement.

Height

-

Passage

2100 mm

Standard.

Special order

Insert requirements, can be increased to suit customer/ site requirements.

Cornice

200 mm

Standard.

Special order

Insert requirements, can be increased to suit customer/ site requirements.

Finish

Polyester powder coated, RAL

Insert colour requirement.

Silver anodized

Curved panels

Glazed

Metal cladding

Not available with RDR-S01.

Resistance class

Not required

Class WK2

Class WK3

Not available with RDR-E01 and RDR-S01.

Accessories

Insert requirements, consult manufacturer's literature for information.

Standard product features

Total height:

  • RDR-C01 and RDR-E01: 2300 mm.
  • RDR-S01: 2230 mm.

Rotating unit:

Framed in aluminium profiles with sealing brushes. Black U-shaped handles and bolt/ bar lock prepared for profile cylinder on-site.

Operation:

Free motion manually, smooth running.

Capacity (in one direction):

16–28 per minute.

Fixing:

Finished floor level (FFL).
