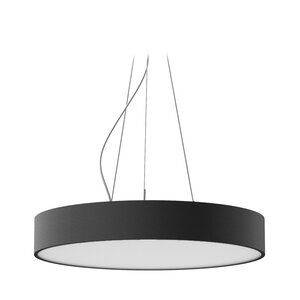

Talla Suspended Feature Lighting
Application

Suitable for offices, retail, galleries, lobby areas and healthcare.

Description

Circular surface mounted feature LED lighting.

Features and benefits:

  • Designed to enhance modern architectural and commercial spaces.
  • Timeless design, soft, natural and uniform light.
  • The option of an opal diffuser gives a clean and contemporary look, with the evenly distributed light enhancing the details of a building’s architecture.
  • A range of size and colour variations are possible.
  • Can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Also available surface mounted (specified separately).
  • Three-wire suspension kit included.
  • Internal ballasts or drivers are supplied.

Also available as surface mounted and wall mounted (specified separately).

Application:

Suitable for offices, retail, galleries, lobby areas and healthcare.

General information

Features

Timeless design, soft, natural and uniform light

Finish

Polyester powder coat

Material

Extruded and formed aluminium profile with LEDs

Shape

Circular

Size

Five sizes ranging from 400 to 1150 mm

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Product Reference

Talla Suspended

Standards

Directive 2004/108/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2019/15/EC - Labelling

Directive 2015/863/EC - RoHS

Directive 2012/19/EC - WEEE

Directive 2014/35/EU - making available on the market of electrical equipment

Directive 2011/65/EU - hazardous substances

Third-party certification

Photometrics

Luminaire description

Suspended, circular, architectural light

Classification

-

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Loop wiring

Nominal voltage

220-240 V

Luminaire power factor

0.97

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471

Safety standard

Non SELV

Initial LED luminaire efficacy (minimum)

125 lm/W

Wattage

Direct 17.1 W/ 2000 lm up to 91.3 W/ 11730 lm, Direct/ Indirect 16 W/ 2110 lm up to 130 W/ 13510 lm

Colour temperature

3000K

4000K

Tunable White (TW) 2700-6500K

Insert requirements.

Colour rendering index (Ra)

80

90

Beam angle

180°

Useful life

50 000 hours (L80B20)

Dimming protocol

DALI Dimming

Non-emergency only.

Non-dimming

Standard.

Emergency version

-

Standard

Tridonic

Mode of operation

Maintained

Duration of emergency mode (minimum)

No emergency

0 hours.

3 hours

Integral sensors

Not required

Philips EasyAir

PIR/ Daylight

Helvar Active Plus

Micro Standalone Sensor

Accessories

Not required

Suspension cable

Length

400 mm

500 mm

600 mm

850 mm

1150 mm

Optics

Microprismatic Diffuser

Opal Diffuser

Colour

Black

White

Silver

RAL

Insert requirements.

Unified glare rating

-

Transverse

<16.2, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<16.2

Driver

-

Efficiency

96%

Frequency

50-60 Hz

Output direction

Direct/ indirect

Standard product features

Colour:

Available in three standard colours or bespoke RAL colour.

Features:

Timeless design, soft, natural and uniform light.

Finish:

Polyester powder coat.

Material:

Extruded and formed aluminium profile with LEDs.

Shape:

Circular.

Size:

Five sizes ranging from 400 to 1150 mm.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
